Figure 5-30:
Figure 5-31:
Pin Assignments
Pin No. Signal
1
2
3
4
5
6
7
8
9
10
11
12
13
Table 5-17:
5.4.4.2 STANAG Input: Edit Window
To configure a STANAG Input (also referred to as 'Reference'), go to its Edit window. For instruc-
tions, see: "Configuring the Settings of an Input or Output" on page 290.
CHAPTER •
5 SecureSync User Reference Guide Rev. 18

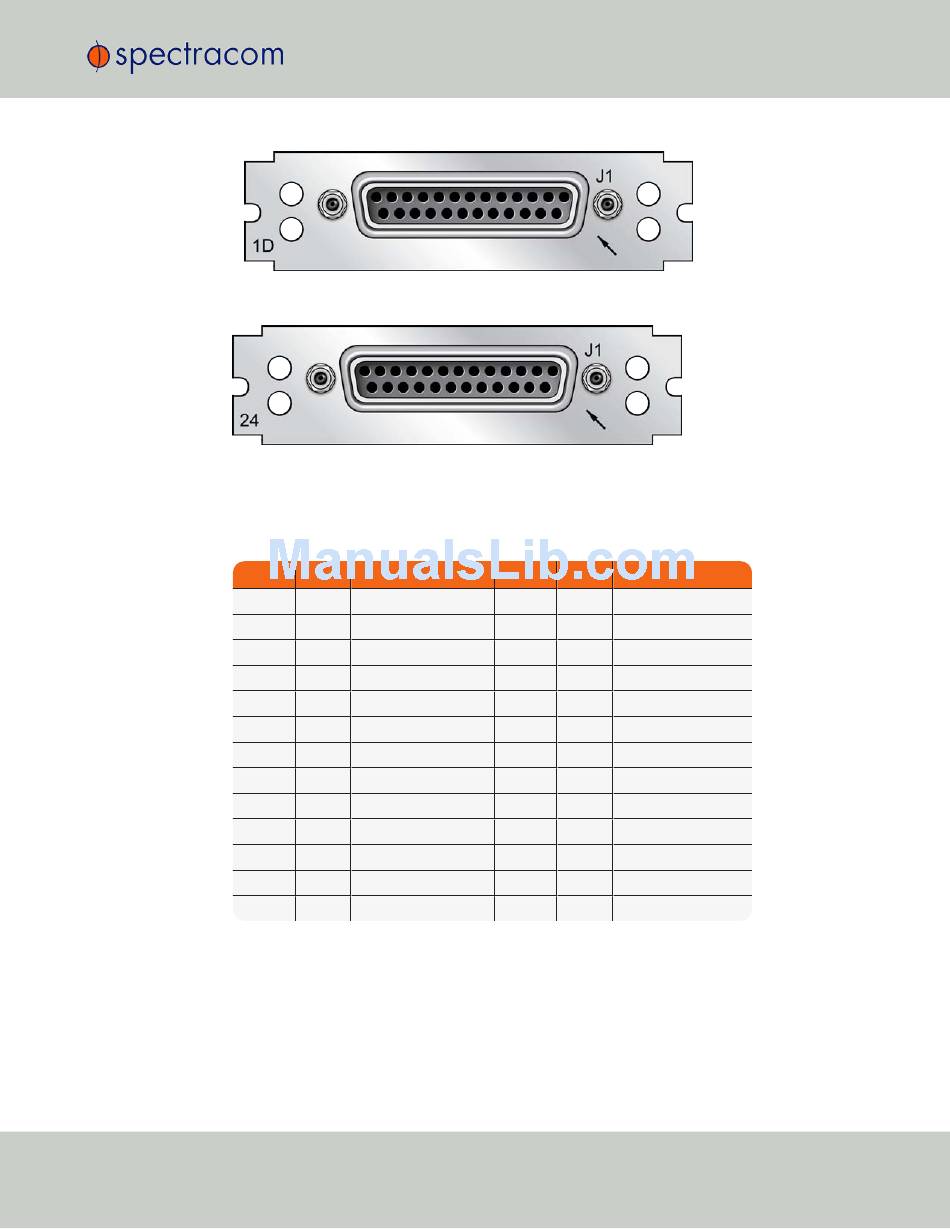

Model 1204-1D option card rear plate
Model 1204-24 option card rear plate
Function
GND Ground
TOD1+ TOD1 RS-485+ Input 15
NC -
TOD2+ TOD2 RS-485+ Input 17
NC -
GND Ground
GND Ground
NC -
1PPS+ 1PPS RS-485+ Input 22
TFD Time Fault Discrete
TOD1 TOD1 TTL Input
GND Ground
TOD2 TOD2 TTL Input
1204-1D, 1204-24 option cards: DB-25 pin-outs
Pin No. Signal Function
14 TOD1- TOD1 RS-485- Input
NC -
16 NC -
TOD2- TOD2 RS-485- Input
18 NC -
19 NC -
20 NC -
21 1PPS- 1PPS RS-485- Input
NC -
23 GND Ground
24 1PPS 1PPS TTL Input
25 GND Ground
