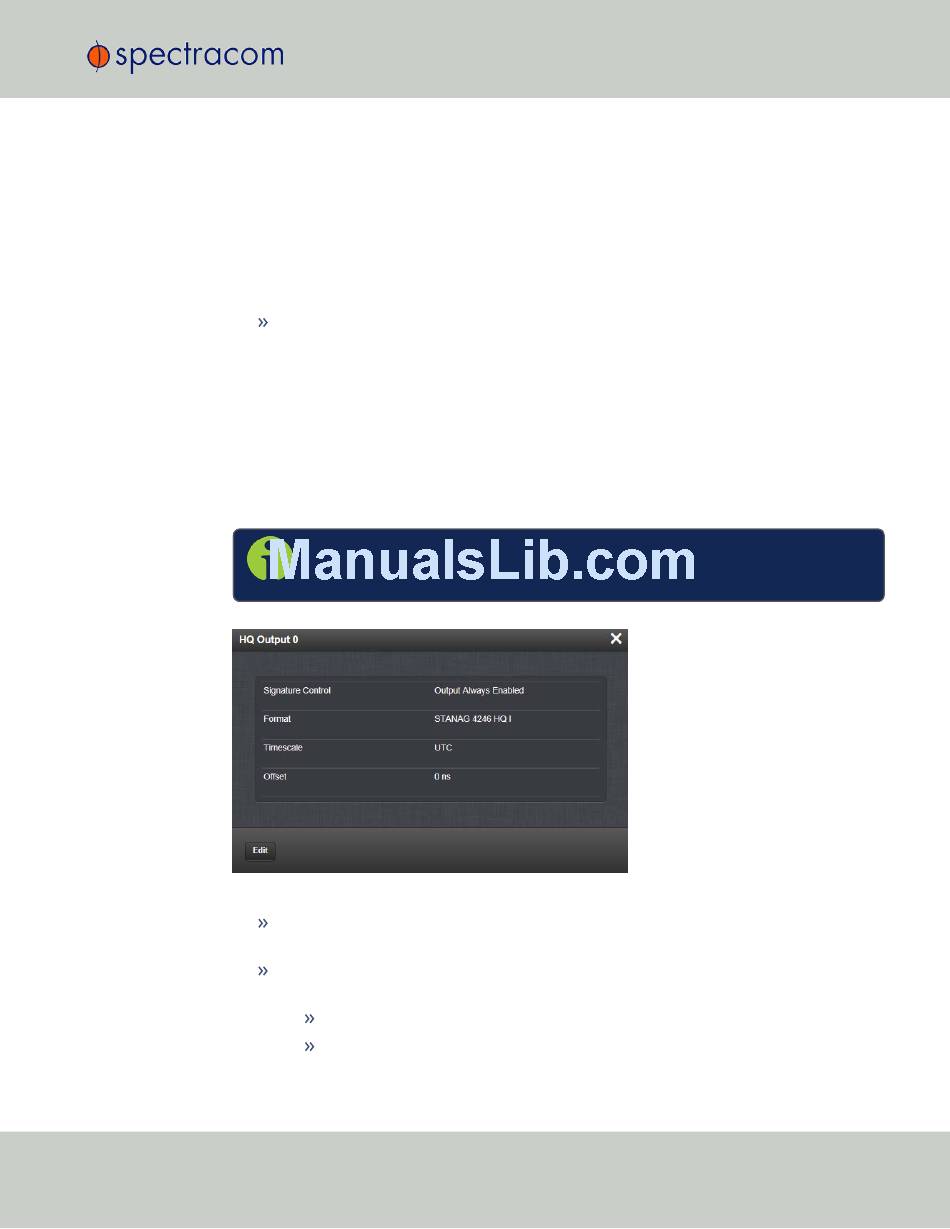

5.4.6.6 HAVE QUICK Output: Status Window
To view the current settings of a HAVE QUICK Output , go to its Status window. For instructions,
see: "Viewing the Configuration of an Input or Output" on page 288.
The Web UI list entry for this card is: HAVE QUICK In/Out .
Outputs are named: HQ Output [number] .
The Status window displays the following settings:
CHAPTER •
5 SecureSync User Reference Guide Rev. 18
Time. Local timescale allows a Local Clock to apply a time offset for Time Zone and
DST correction.
The incoming input time information may be provided as local time, but System Time may
be configured as UTC time, so internal computations need to be performed. With the Times-
cale field set to "Local", select the name of a previously created Local Clock. The Time
Zone and DST rules, as configured in the Local Clock will be applied to the front panel time
display. Refer to "Setting up a Local Clock" on page 175 for more information on Local
Clocks.
Offset : Provides the ability to account for HAVE QUICK cable delays or other latencies in
the HAVE QUICK outputs. The Offset values are entered in nanoseconds (ns). The avail-
able Offset range is –500 to +500 ms.
NOTE – SecureSync starts numbering I/O ports with 0 (only 1PPS and 10 MHz out-
puts start at 1, because of the built-in outputs).
Signature Control : Signature Control is used to control when the HAVE QUICK mod-
ulation is present, see "Signature Control" on page 201.
Format : Used to configure the formatting of the four available HAVE QUICK outputs. The
available output formats are as follows:
STANAG 4246 HQ I
STANAG 4246 HQ II
