5.4.5

HAVE QUICK Out [1204-10, -1B]

The HAVE QUICK option cards provide (4) HAVE QUICK outputs for the SecureSync platform.
5.4.5.1 HAVE QUICK Out, BNC [1204-10]: Specifications
Figure 5-32:
CHAPTER •
5 SecureSync User Reference Guide Rev. 18
1PPS Offset : Used to account for 1PPS cable delays or other latencies in the 1PPS input.
The available Offset range is –500 to +500 ms in 5ns steps.
PPS Edge : Indicates whether the output signal is a rising or falling edge pulse.
PPS Electrical Format : Indicates whether the signal is synchronized to RS-485 or TTL
(supporting up to 10 V levels) signal lines.
Outputs : (4) HAVE QUICK
Signal Type and Connector : TTL levels (BNC)
Formats Supported :
STANAG 4246 HAVE QUICK I
STANAG 4246 HAVE QUICK II
STANAG 4372 HAVE QUICK IIA
STANAG 4430 Extended HAVE QUICK
STANAG 4430 Standard Time Message (STM)
ICD-GPS-060A BCD Time Code
ICD-GPS-060A HAVE QUICK
DOD-STD-1399 BCD Time Code
Output Load Impedance : 10 kΩ
Start of Signal : <10 µs after 1PPS output
Programmable Phase Shift : ±5ns to 500 ms with 5ns resolution
Accuracy : ±50 ns (1σ)
Maximum Number of Cards : 6
Ordering Information : 1204-10 HAVE QUICK outputs, BNC

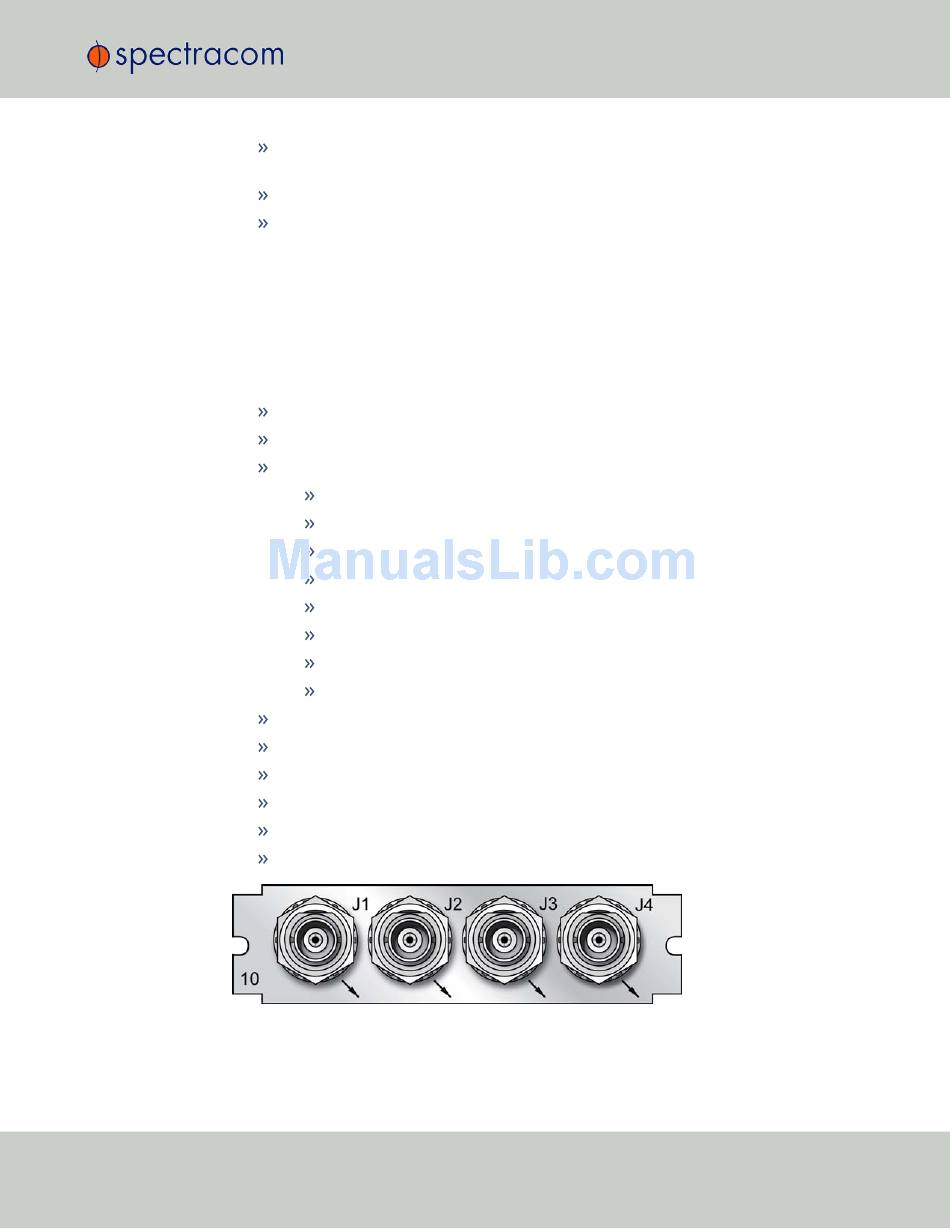

Model 1204-10 option card rear plate
5.4 Time Code Option Cards
