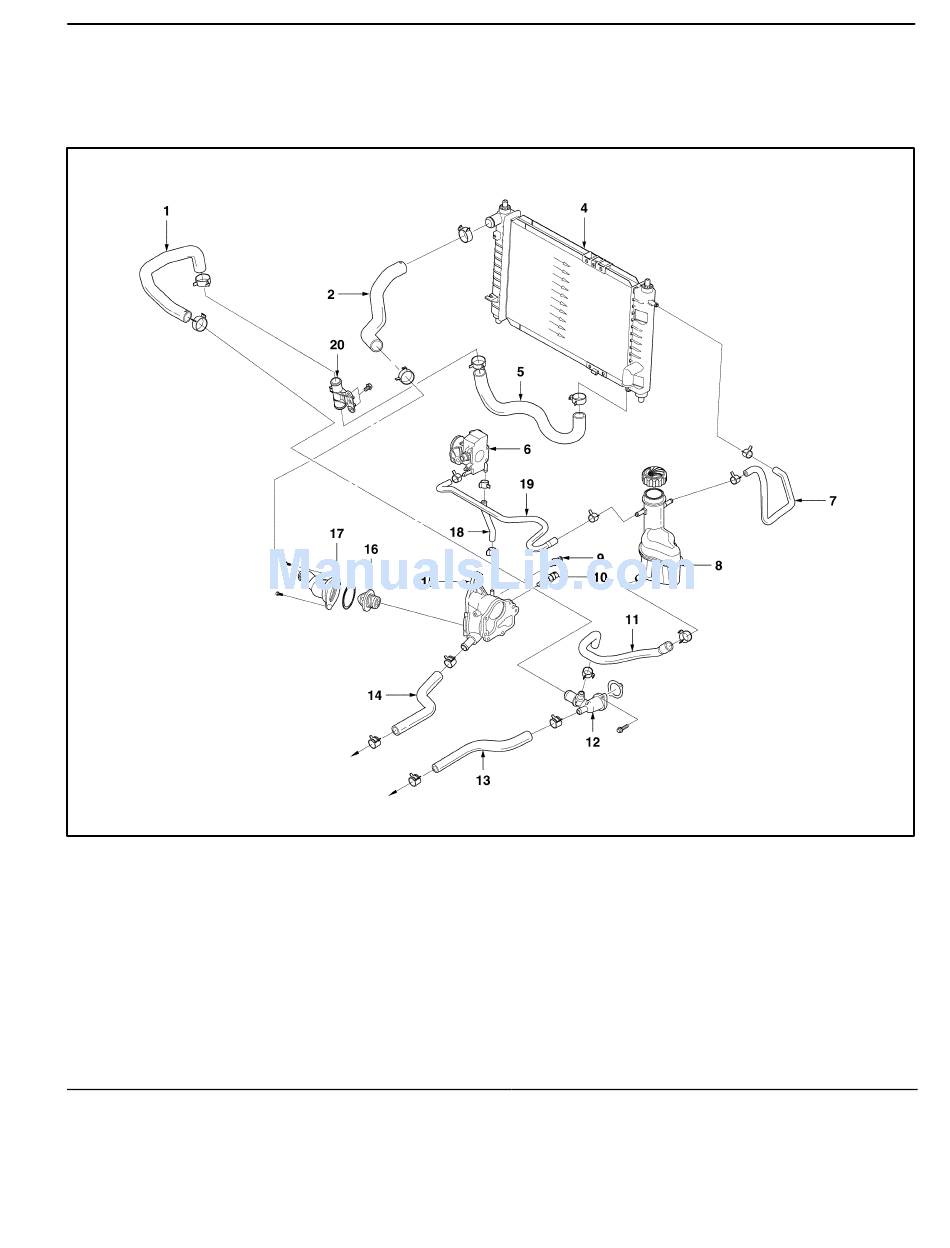

Component Locator; Coolant Hose And Components - Daewoo MATIZ Service Manual

1 Radiator Coolant Return Hose
2 Upper Radiator Hose
3 Not Used
4 Radiator Assembly
5 Lower Radiator Hose
6 Throttle Body Assembly
7 Surge Tank hose
8 Surge Tank
9 Coolant Temperature Sensor
10 Engine Coolant Temperature Sensor
DAEWOO M-150 BL2

COMPONENT LOCATOR

COOLANT HOSE AND COMPONENTS

ENGINE COOLING 1D – 5
11 Surge Tank Return Hose
12 Water Inlet Cap
13 Heater Outlet Hose
14 Heater Inlet Hose
15 Distributor Case
16 Thermostat
17 Thermostat Housing
18 Throttle Body Inlet Hose
19 Throttle Body Outlet Hose
20 Hose Bracket
D12D4011
