3.
To select the current value that to change, use the arrow buttons up and down. Push [OK].
Only 2 values as trend curves can be monitored at the same time. The current selections, FreqReference, and Motor speed,
are at the bottom of the display.
STOP
FreqReference
Motor Speed
4.
Go through the list of the monitoring values with the arrow buttons.
STOP
Output frequency
FreqReference
Motor Speed
Motor Current
Motor Torque
Motor Shaft Power
5.
Make a selection and push [OK].

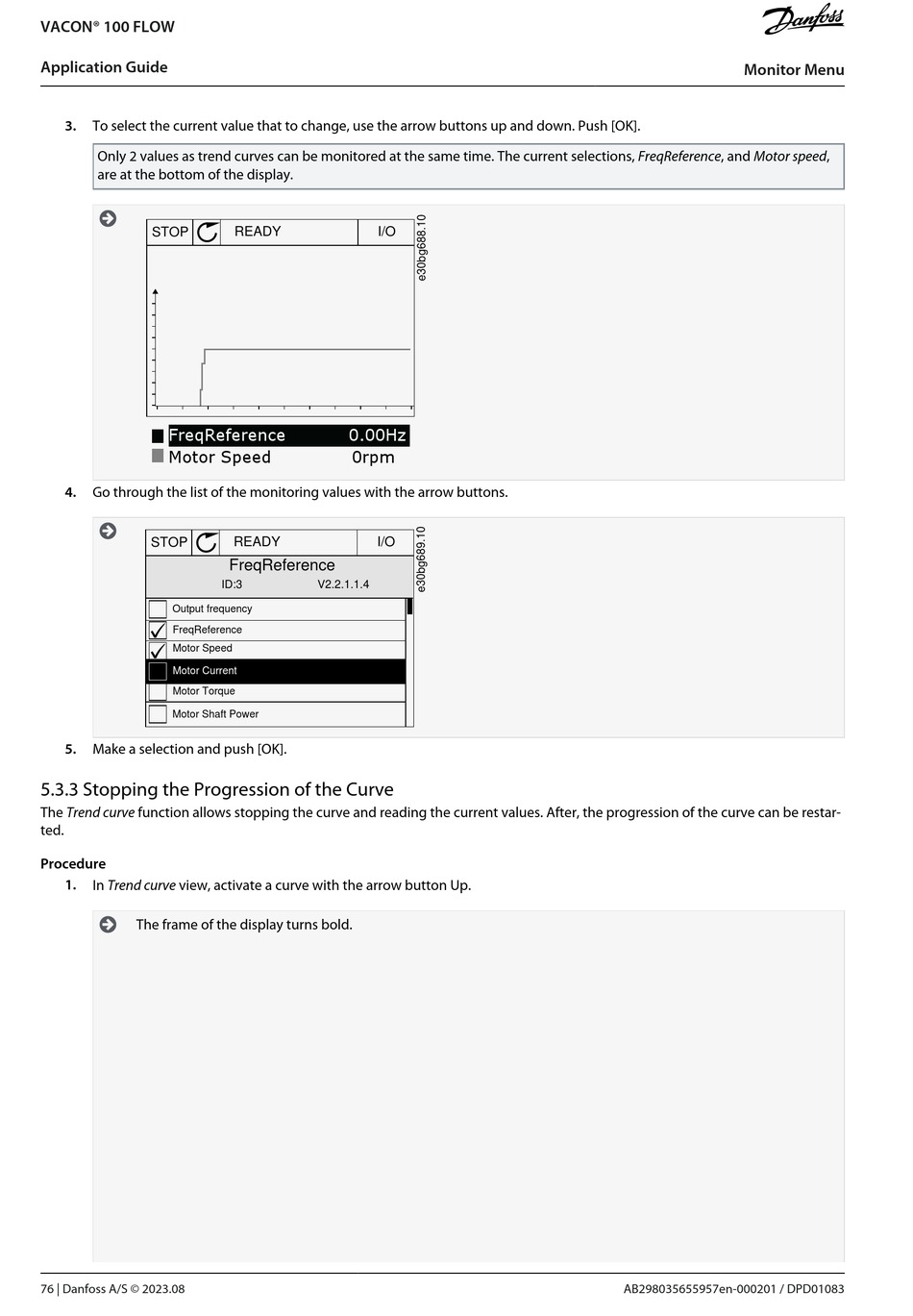

5.3.3 Stopping the Progression of the Curve
The Trend curve function allows stopping the curve and reading the current values. After, the progression of the curve can be restar-
ted.
Procedure
1.
In Trend curve view, activate a curve with the arrow button Up.
The frame of the display turns bold.
76 | Danfoss A/S © 2023.08
READY
I/O
0.00Hz
0rpm
READY
I/O
FreqReference
ID:3
V2.2.1.1.4
Monitor Menu
AB298035655957en-000201 / DPD01083
