P TorqStabGainFWP
P TorqStabGain

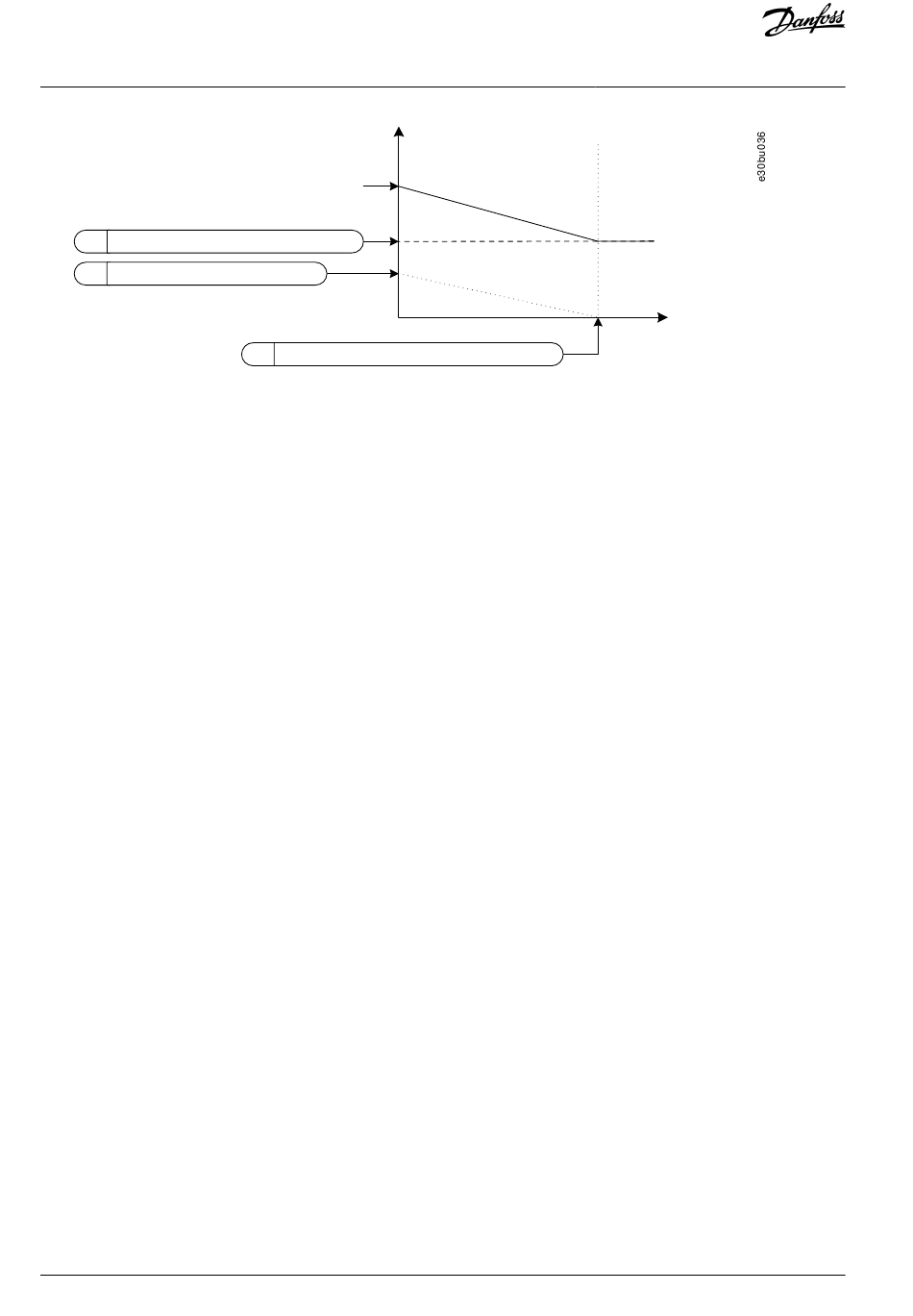

Illustration 40: The Torque Stabilator Gain
11.3.6.3 (ID 1413) Torque Stabilator Damping Time Constant
Location in the menu: P3.1.4.13.3
Use this parameter to set the damping time constant of the torque stabilizer.
11.3.6.4 (ID 1735) Torque Stabilator Damping Time Constant for PM Motors
Location in the menu: P3.1.4.13.4
Use this parameter to set the damping time constant of the torque stabilizer for permanent magnet or reluctance motors.
11.3.6.5 (ID 15650) Torque Stabilator Filter Time Constant
Location in the menu: P3.1.4.13.5
Use this parameter to set the lowpass filtering time constant of the torque stabilizer.
11.3.6.6 (ID 15651) Torque Stabilator Filter Time Constant for PM Motors
Location in the menu: P3.1.4.13.6
Use this parameter to set the lowpass filtering time constant of the torque stabilizer for permanent magnet or reluctance motors.

11.4 Start/Stop Setup

11.4.1 Start and Stop Commands in Different Control Places

Start and stop commands must be given differently in each control place.
Remote Control Place (I/O A)
Use the parameters P3.5.1.1 (Control signal 1 A), P3.5.1.2 (Control signal 2 A) and P3.5.1.3 (Control signal 3 A) to select digital inputs.
These digital inputs control the start, stop, and reverse commands. Then select a logic for these inputs with P3.2.6 I/O A Logic.
Remote Control Place (I/O B)
Use the parameters P3.5.1.4 (Control signal 1 B), P3.5.1.5 (Control signal 2 B) and P3.5.1.6 (Control signal 3 B) to select digital inputs.
These digital inputs control the start, stop, and reverse commands. Then select a logic for these inputs with P3.2.7 I/O B Logic.
Local Control Place (Keypad)
The start and stop commands come from the keypad buttons. The direction of the rotation is set with parameter P3.3.1.9 Keypad
direction.
Remote Control Place (Fieldbus)
Start, stop, and reverse commands come from the fieldbus.
11.4.2 (ID 172) Remote Control Place
Location in the menu: P3.2.1
Use this parameter to select the remote control place (start/stop). Use this parameter to change back to remote control from VA-
CON Live, for example if the control panel is broken.
®
11.4.3 (ID 211) Local/Remote
Location in the menu: P3.2.2
176 | Danfoss A/S © 2023.08
Gain
Effective gain
P FieldWeakeningPoint
Parameter Descriptions
FreqOut
AB298035655957en-000201 / DPD01083
