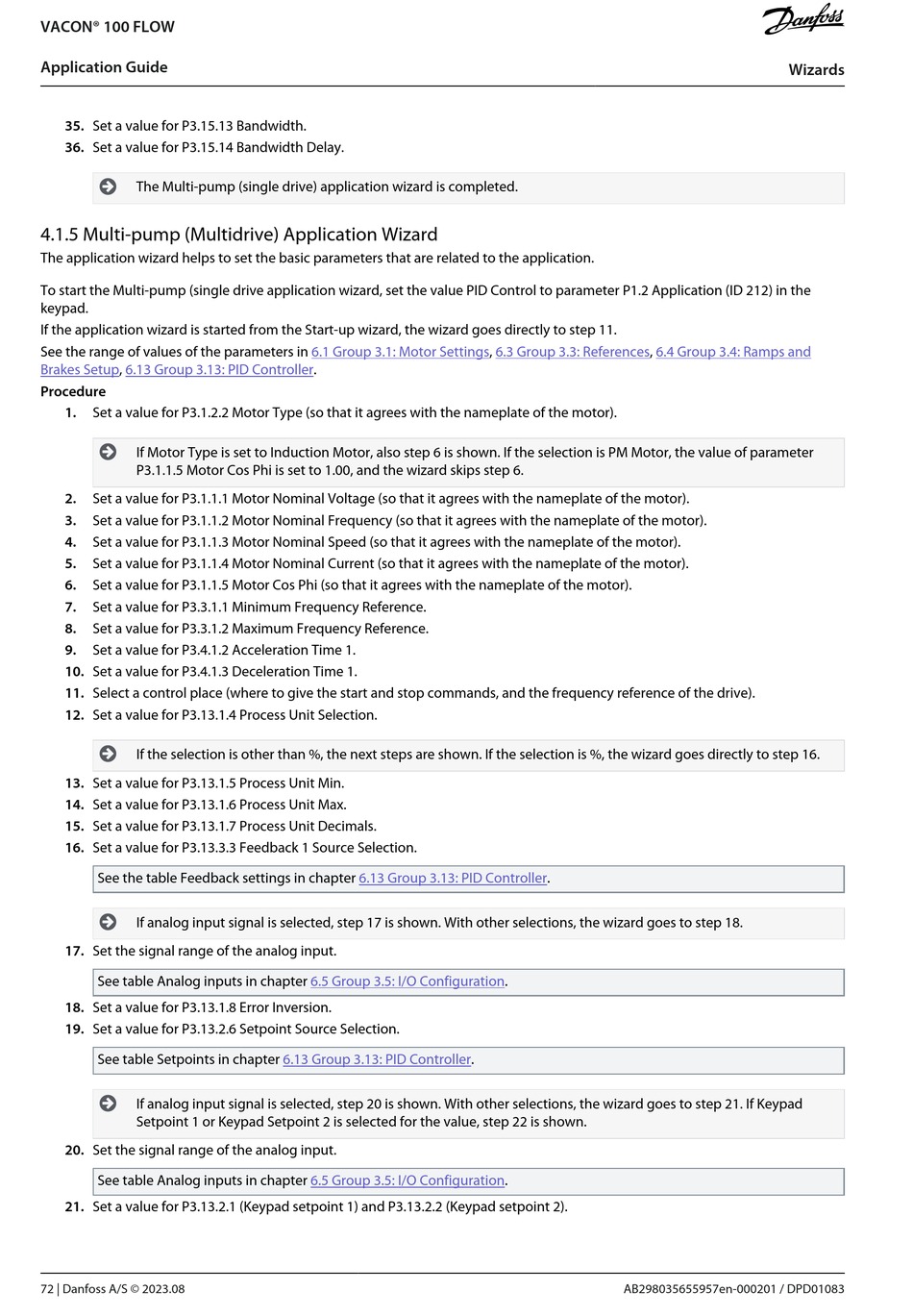

VACON® 100 FLOW
Application Guide
35. Set a value for P3.15.13 Bandwidth.
36.
Set a value for P3.15.14 Bandwidth Delay.

The Multi-pump (single drive) application wizard is completed.

4.1.5 Multi-pump (Multidrive) Application Wizard

The application wizard helps to set the basic parameters that are related to the application.
To start the Multi-pump (single drive application wizard, set the value PID Control to parameter P1.2 Application (ID 212) in the
keypad.
If the application wizard is started from the Start-up wizard, the wizard goes directly to step 11.
See the range of values of the parameters in
Brakes Setup, 6.13 Group 3.13: PID
Procedure
1. Set a value for P3.1.2.2 Motor Type (so that it agrees with the nameplate of the motor).

If Motor Type is set to Induction Motor, also step 6 is shown. If the selection is PM Motor, the value of parameter
P3.1.1.5 Motor Cos Phi is set to 1.00, and the wizard skips step 6.
2. Set a value for P3.1.1.1 Motor Nominal Voltage (so that it agrees with the nameplate of the motor).
3. Set a value for P3.1.1.2 Motor Nominal Frequency (so that it agrees with the nameplate of the motor).
4. Set a value for P3.1.1.3 Motor Nominal Speed (so that it agrees with the nameplate of the motor).
5. Set a value for P3.1.1.4 Motor Nominal Current (so that it agrees with the nameplate of the motor).
6. Set a value for P3.1.1.5 Motor Cos Phi (so that it agrees with the nameplate of the motor).
7. Set a value for P3.3.1.1 Minimum Frequency Reference.
8. Set a value for P3.3.1.2 Maximum Frequency Reference.
9. Set a value for P3.4.1.2 Acceleration Time 1.
10. Set a value for P3.4.1.3 Deceleration Time 1.
11. Select a control place (where to give the start and stop commands, and the frequency reference of the drive).
12. Set a value for P3.13.1.4 Process Unit Selection.

If the selection is other than %, the next steps are shown. If the selection is %, the wizard goes directly to step 16.
13. Set a value for P3.13.1.5 Process Unit Min.
14. Set a value for P3.13.1.6 Process Unit Max.
15. Set a value for P3.13.1.7 Process Unit Decimals.
16.
Set a value for P3.13.3.3 Feedback 1 Source Selection.
See the table Feedback settings in chapter

If analog input signal is selected, step 17 is shown. With other selections, the wizard goes to step 18.
17. Set the signal range of the analog input.
See table Analog inputs in chapter
18. Set a value for P3.13.1.8 Error Inversion.
19.
Set a value for P3.13.2.6 Setpoint Source Selection.
See table Setpoints in chapter

If analog input signal is selected, step 20 is shown. With other selections, the wizard goes to step 21. If Keypad
Setpoint 1 or Keypad Setpoint 2 is selected for the value, step 22 is shown.
20.
Set the signal range of the analog input.
See table Analog inputs in chapter
21.
Set a value for P3.13.2.1 (Keypad setpoint 1) and P3.13.2.2 (Keypad setpoint 2).
72 | Danfoss A/S © 2023.08
6.1 Group 3.1: Motor
Controller.
6.13 Group 3.13: PID
6.5 Group 3.5: I/O Configuration.
6.13 Group 3.13: PID Controller.
6.5 Group 3.5: I/O Configuration.
Settings, 6.3 Group 3.3: References,
Controller.
Wizards
6.4 Group 3.4: Ramps and
AB298035655957en-000201 / DPD01083
