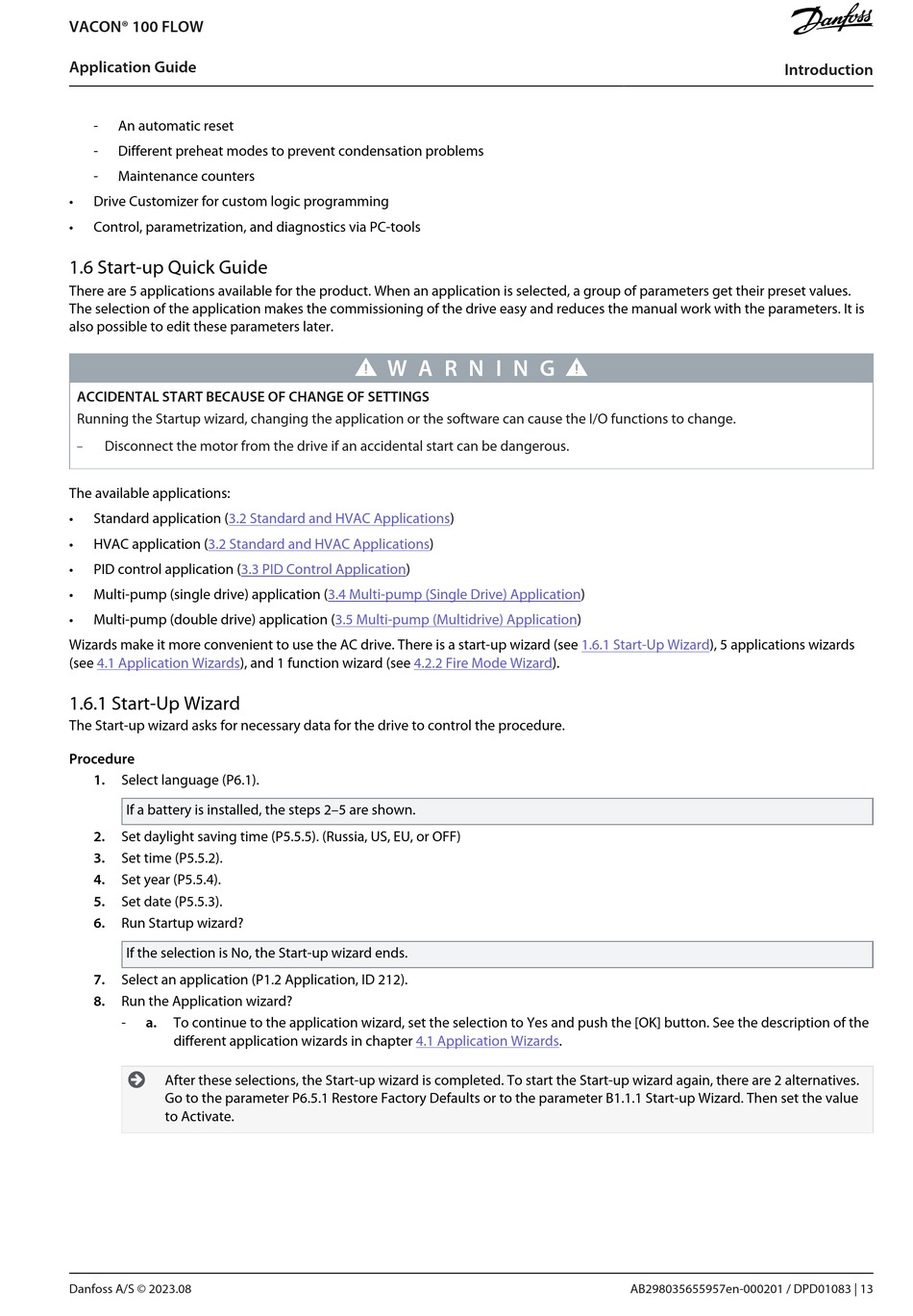

VACON® 100 FLOW
Application Guide
- An automatic reset
- Different preheat modes to prevent condensation problems
- Maintenance counters
• Drive Customizer for custom logic programming
• Control, parametrization, and diagnostics via PC-tools

1.6 Start-up Quick Guide

There are 5 applications available for the product. When an application is selected, a group of parameters get their preset values.
The selection of the application makes the commissioning of the drive easy and reduces the manual work with the parameters. It is
also possible to edit these parameters later.
ACCIDENTAL START BECAUSE OF CHANGE OF SETTINGS
Running the Startup wizard, changing the application or the software can cause the I/O functions to change.
-
Disconnect the motor from the drive if an accidental start can be dangerous.
The available applications:
• Standard application (3.2 Standard and HVAC
• HVAC application (3.2 Standard and HVAC
• PID control application (3.3 PID Control
• Multi-pump (single drive) application
• Multi-pump (double drive) application
Wizards make it more convenient to use the AC drive. There is a start-up wizard (see
(see 4.1 Application Wizards), and 1 function wizard (see

1.6.1 Start-Up Wizard

The Start-up wizard asks for necessary data for the drive to control the procedure.
Procedure
1. Select language (P6.1).
If a battery is installed, the steps 2–5 are shown.
2. Set daylight saving time (P5.5.5). (Russia, US, EU, or OFF)
3.
Set time (P5.5.2).
4. Set year (P5.5.4).
5.
Set date (P5.5.3).
6. Run Startup wizard?
If the selection is No, the Start-up wizard ends.
7. Select an application (P1.2 Application, ID 212).
8.
Run the Application wizard?
- a. To continue to the application wizard, set the selection to Yes and push the [OK] button. See the description of the
different application wizards in chapter

After these selections, the Start-up wizard is completed. To start the Start-up wizard again, there are 2 alternatives.
Go to the parameter P6.5.1 Restore Factory Defaults or to the parameter B1.1.1 Start-up Wizard. Then set the value
to Activate.
Danfoss A/S © 2023.08
W A R N I N G
Applications)
Applications)
Application)
(3.4 Multi-pump (Single Drive)
(3.5 Multi-pump (Multidrive)
4.2.2 Fire Mode
4.1 Application
Application)
Application)
1.6.1 Start-Up Wizard), 5 applications wizards
Wizard).
Wizards.
AB298035655957en-000201 / DPD01083 | 13
Introduction
