Danfoss VACON 100 FLOW Series Application Manual page 54

VACON® 100 FLOW
Application Guide
DRIVE 1
2-WIRE
VACON 100 FLOW
TRANSMITTER
P1.2 Application = Multipump(MultiDrive)
P
PRESSURE
P3.15.3 Pump ID Number = 1
SENSOR 1
P3.15.4 Start & Feedback = Signals Connected
I
+ -
1 +10V ref Reference voltage
2 AI1 +
NOT USED
(0...10V)
3 AI1 -
4 AI2 +
PID FEEDBACK
(4...20mA)
5 AI2 -
6 +24V out 24V auxilary voltage out
7 GND I/O ground
8 DIN1 START FORWARD
FLUSHING
9 DIN2
(Start Forward + Flushing Freq.)
PID SETPOINT SELECT.
10 DIN3
(Open=Keypad SP1, Closed=Keypad SP2)
11 CM Common for DI1-DI6
3
0 1
AUTO MAN
12 +24V out 24V auxilary voltage out
1S1 2S1
13 GND I/O ground
2 4
14 DIN4 FAULT RESET
PUMP INTERLOCK
15 DIN5
(Not in use by default)
16 DIN6 EXTERNAL FAULT
17 CM Common for DI1-DI6
18 AO1 +
OUTPUT FREQUENCY
(0...20mA)
19 AO1 -
30 +24V in 24V auxilary voltage in
Drive-To-Drive
A RS485
Communication
B RS485 (Modbus RTU)
21 RO1
Relay Output 1
22 RO1
(RUN)
23 RO1
24 RO2
Relay Output 2
25 RO2
(FAULT)
26 RO2
32 RO3 Relay Output 3
(READY)
33 RO3
DI O´S AI1 AO
FLOAT U U
GND I I
RS485
AI2 termination
U OFF
I ON
1 3
0
AUTO MAN
3S1
2 4

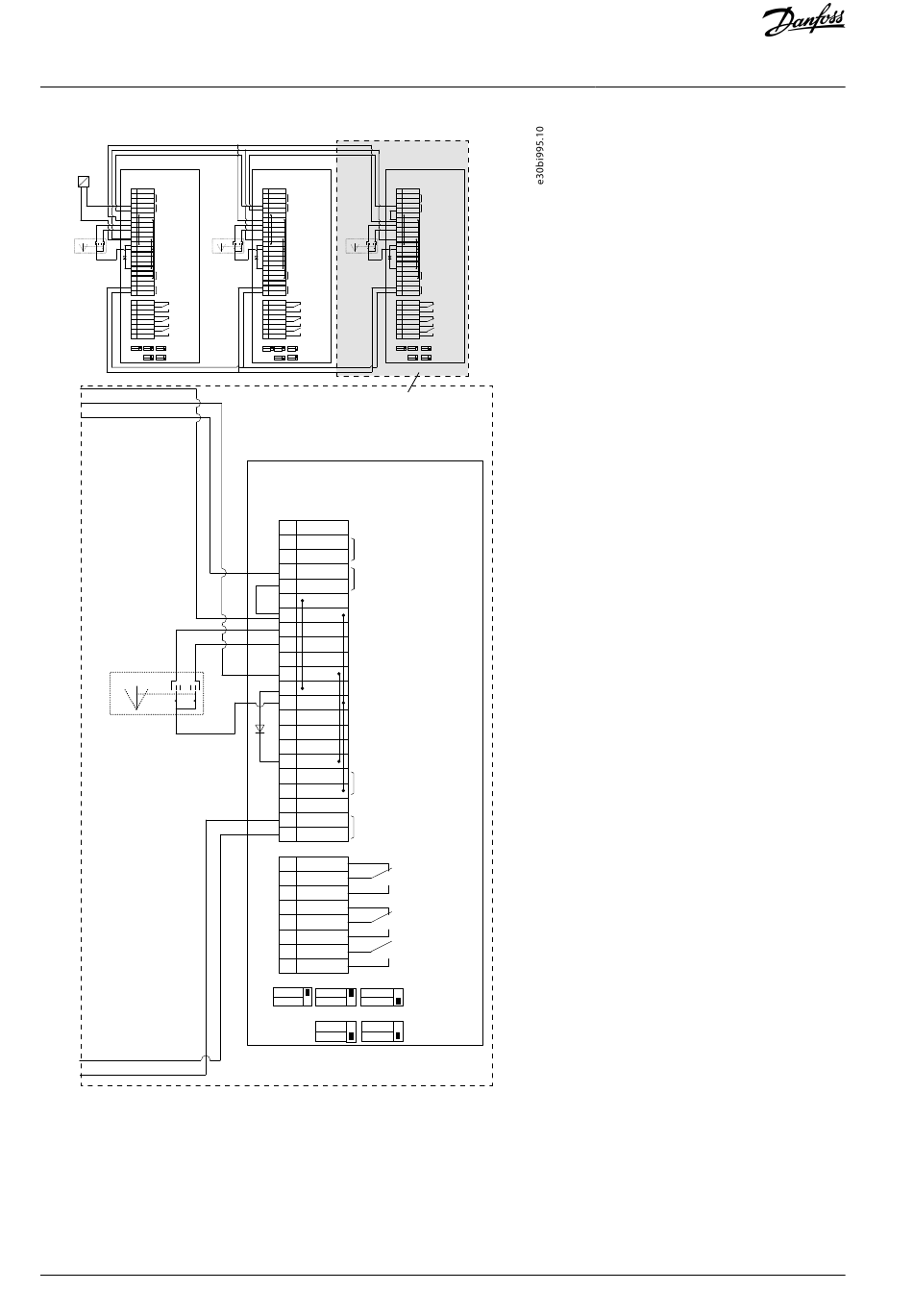

Illustration 25: Electric Wiring Diagram of the Multi-pump (Multidrive) System, Example 2C
2 drives have individual pressure sensors. The redundancy level of the system is medium because the drives and the pressure sen-
sors are duplicated.
• If there is a drive failure, the second drive starts to operate as master.
• If there is a sensor failure, the second drive (that has a separate sensor) starts to operate as master.
54 | Danfoss A/S © 2023.08
DRIVE 2
VACON 100 FLOW
P1.2 Application = Multipump(MultiDrive)
P3.15.3 Pump ID Number = 2
P3.15.4 Start & Feedback = Signals Connected
1 +10V ref Reference voltage
2 AI1 +
NOT USED
(0...10V)
3 AI1 -
4 AI2 +
PID FEEDBACK
(4...20mA)
5 AI2 -
6 +24V out 24V auxilary voltage out
7 GND I/O ground
8 DIN1 START FORWARD
FLUSHING
9 DIN2
(Start Forward + Flushing Freq.)
PID SETPOINT SELECT.
10 DIN3
(Open=Keypad SP1, Closed=Keypad SP2)
11 CM Common for DI1-DI6
3 3
0 1 0 1
AUTO MAN AUTO MAN
12 +24V out 24V auxilary voltage out
3S1
13 GND I/O ground
2 4 2 4
14 DIN4 FAULT RESET
PUMP INTERLOCK
15 DIN5
(Not in use by default)
16 DIN6 EXTERNAL FAULT
17 CM Common for DI1-DI6
18 AO1 +
OUTPUT FREQUENCY
(0...20mA)
19 AO1 -
30 +24V in 24V auxilary voltage in
A RS485 Drive-To-Drive
Communication
B RS485 (Modbus RTU)
21 RO1
Relay Output 1
22 RO1
(RUN)
23 RO1
24 RO2
Relay Output 2
25 RO2
(FAULT)
26 RO2
32 RO3 Relay Output 3
(READY)
33 RO3
DIO´S AI1 AO
FLOAT U U
GND I I
RS485
AI2 termination
OFF
U
I ON
DRIVE 3
VACON 100 FLOW
P1.2 Application
P3.15.3 Pump ID Number
P3.15.4 Start & Feedback
1 +10V
Reference voltage
ref
2 AI2+
NOT USED (0...10V)
3 AI1-
4 AI2+
PID FEEDBACK (4...20mA)
5 AI2-
6 +24V 24V auxilary voltage out
out
7 GND
I/O ground
8 DIN1
START FORWARD
9 DIN2 FLUSHING
(Start Forward + Flushing Freq.)
10 DIN3 PID SETPOINT SELECT.
(Open=Keypad SP1, Closed=Keypad SP2)
11 CM
Common for DI1-DI6
12 +24V 24V auxilary voltage out
out
13 GND
I/O ground
14 DIN4
FAULT RESET
PUMP INTERLOCK
15 DIN5
(Not in use by default)
16 DIN6
EXTERNAL FAULT
17 CM
Common for DI1-DI6
18 AO1+
OUTPUT FREQUENCY
19 AO1- (0...20mA)
30 +24V
24V auxilary voltage in
in
A RS485
Drive-To-Drive
Communication
B RS485
(Modbus RTU)
21 RO1
22 RO1
23 RO1
24 RO2
25 RO2
26 RO2
32 RO3
33 RO3
DIO´S AI1 AO
FLOAT U U
GND I I
RS485
AI2
termination
OFF
U
I ON
DRIVE 3
VACON 100 FLOW
P1.2 Application = Multipump(MultiDrive)
P3.15.3 Pump ID Number = 3
P3.15.4 Start & Feedback = Signals Connected
1 +10V ref Reference voltage
2 AI1 +
NOT USED
(0...10V)
3 AI1 -
4 AI2 +
PID FEEDBACK
(4...20mA)
5 AI2 -
6 +24V out 24V auxilary voltage out
7 GND I/O ground
8 DIN1 START FORWARD
FLUSHING
9 DIN2
(Start Forward + Flushing Freq.)
PID SETPOINT SELECT.
10 DIN3
(Open=Keypad SP1, Closed=Keypad SP2)
11 CM Common for DI1-DI6
12 +24V out 24V auxilary voltage out
13 GND I/O ground
14 DIN4 FAULT RESET
PUMP INTERLOCK
15 DIN5
(Not in use by default)
16 DIN6 EXTERNAL FAULT
17 CM Common for DI1-DI6
18 AO1 +
OUTPUT FREQUENCY
(0...20mA)
19 AO1 -
30 +24V in 24V auxilary voltage in
A RS485 Drive-To-Drive
Communication
B RS485 (Modbus RTU)
21 RO1
Relay Output 1
22 RO1
(RUN)
23 RO1
24 RO2
Relay Output 2
25 RO2
(FAULT)
26 RO2
32 RO3 Relay Output 3
(READY)
33 RO3
DIO´S AI1 AO
FLOAT U U
GND I I
RS485
AI2 termination
U OFF
I ON
= Multipump(MultiDrive)
= 3
= Signals Connected
Relay Output 1
(RUN)
Relay Output 2
(FAULT)
Relay Output 3
(READY)
Applications
