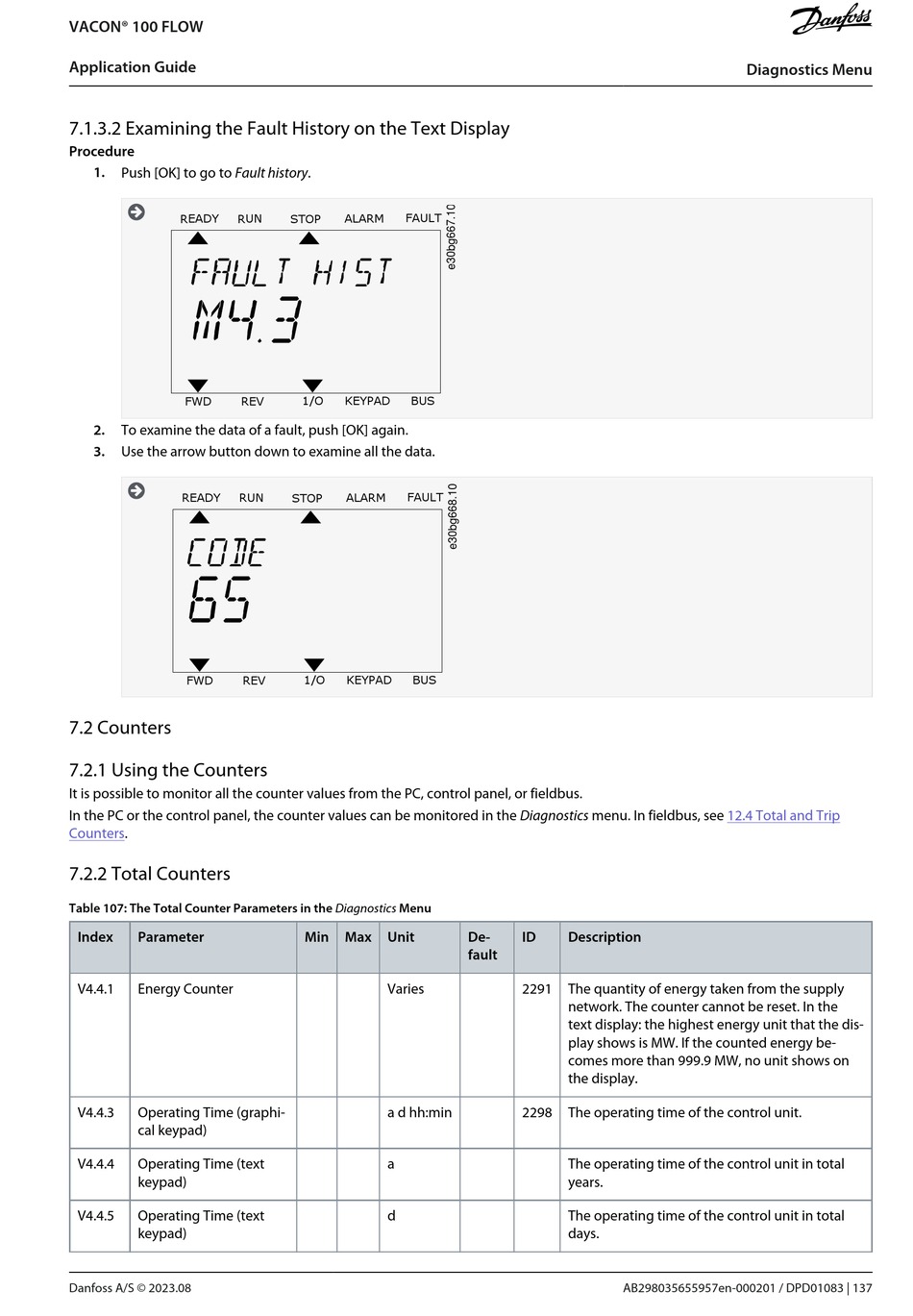

7.1.3.2 Examining the Fault History on the Text Display

Procedure
1. Push [OK] to go to Fault history.

2. To examine the data of a fault, push [OK] again.
3. Use the arrow button down to examine all the data.


7.2 Counters

7.2.1 Using the Counters

It is possible to monitor all the counter values from the PC, control panel, or fieldbus.
In the PC or the control panel, the counter values can be monitored in the Diagnostics menu. In fieldbus, see
Counters.

7.2.2 Total Counters

Table 107: The Total Counter Parameters in the Diagnostics Menu
Index Parameter
V4.4.1 Energy Counter
V4.4.3 Operating Time (graphi-
cal keypad)
V4.4.4 Operating Time (text
keypad)
V4.4.5 Operating Time (text
keypad)
Danfoss A/S © 2023.08
Min Max Unit De-
fault
Varies
a d hh:min
a
d
ID Description
2291 The quantity of energy taken from the supply
network. The counter cannot be reset. In the
text display: the highest energy unit that the dis-
play shows is MW. If the counted energy be-
comes more than 999.9 MW, no unit shows on
the display.
2298 The operating time of the control unit.
The operating time of the control unit in total
years.
The operating time of the control unit in total
days.
AB298035655957en-000201 / DPD01083 | 137
Diagnostics Menu
12.4 Total and Trip
