VACON® 100 FLOW
Application Guide
Selection num- Selection name
ber
0 Absolute level
1 Relative setpoint
A

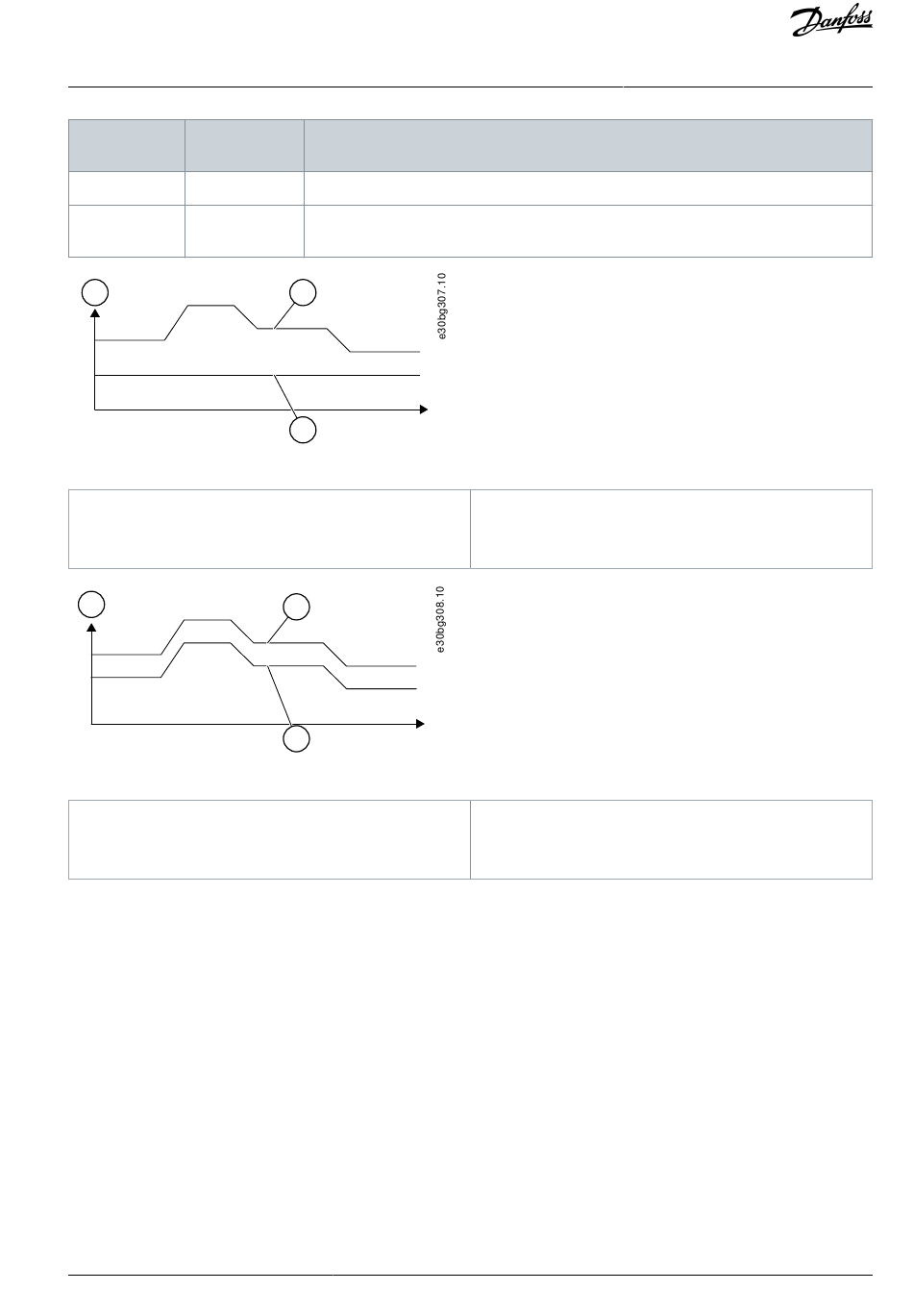

Illustration 80: Wake-up Mode: Absolute Level
A Setpoint
B PID Setpoint
A
Illustration 81: Wake-up Mode: Relative Setpoint
A Setpoint
B PID Setpoint
11.15.5.11 (ID 1794) SP2 Sleep Boost
Location in the menu: P3.13.5.11
Use this parameter to set the value that is added to the actual setpoint value when the sleep boost function is used.
11.15.5.12 (ID 1796) SP2 Sleep Boost Maximum Time
Location in the menu: P3.13.5.12
Use this parameter to set the timeout time for the sleep boost function.
11.15.6 Feedback Supervision
Use the feedback supervision to make sure that the PID Feedback value (the process value or the actual value) stays in the set limits.
Use this function, for example, to find a pipe break and stop the flooding.
These parameters set the range in which the PID Feedback signal stays in correct conditions. If the PID Feedback signal does not
stay in the range, and this continues longer than the delay, a Feedback supervision fault (the fault code 101) shows.
11.15.6.1 (ID 735) Enable Feedback Supervision
Location in the menu: P3.13.6.1
Danfoss A/S © 2023.08
Description
The wake-up level is a static level that does not follow the setpoint value.
The wake-up level is an offset below the actual setpoint value. The wake-up level follows
the actual setpoint.
B
t
C
B
t
C
C Wake-up level
C Wake-up level
AB298035655957en-000201 / DPD01083 | 243
Parameter Descriptions
