Danfoss VACON 100 FLOW Series Application Manual page 181

VACON® 100 FLOW
Application Guide
FWD
Output
frequency
Set
frequency
0 Hz
Set
frequency
REV
Run enable
Ctrl signal 1
Ctrl signal 2
Keypad stop
button
1

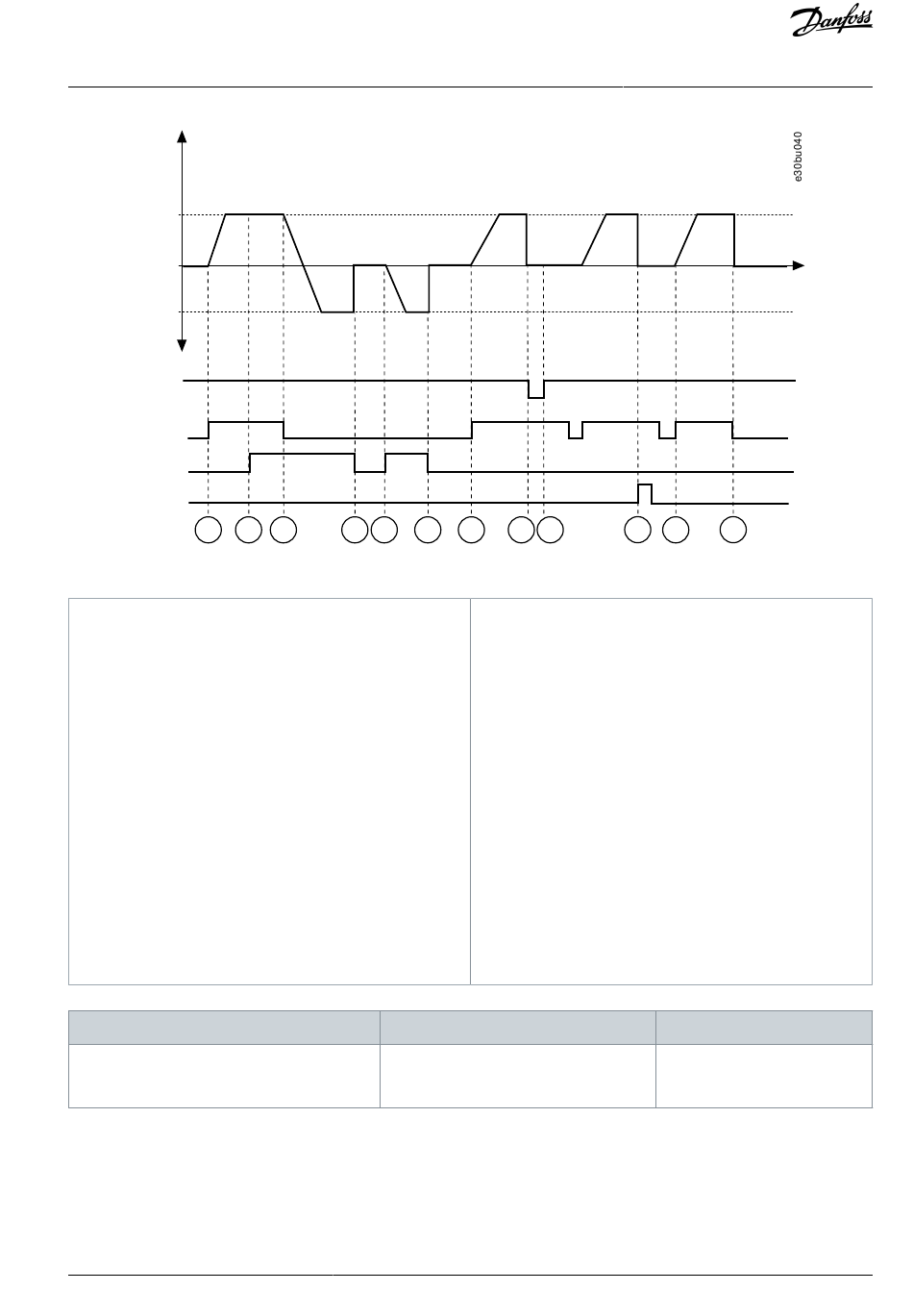

Illustration 44: I/O A Start/Stop Logic = 2
1 Control signal (CS) 1 activates and causes the output
frequency to increase. The motor operates forward.
2 CS2 activates, but it does not affect the output fre-
quency, because the direction that is set first has the
highest priority.
3 CS1 becomes inactive and causes the direction to
start to change (FWD to REV), because CS2 is still ac-
tive.
4 CS2 becomes inactive and the frequency that is fed
to the motor goes to 0.
5 CS2 activates again and causes the motor to acceler-
ate (REV) to the set frequency.
6 CS2 becomes inactive and the frequency that is fed
to the motor goes to 0.
Selection = 3
Selection number
3
Danfoss A/S © 2023.08
2 3 4 5
Selection name
CS1 = Start
CS2 = Reverse
6 7 8 9
7 CS1 activates and the motor accelerates (FWD) to
the set frequency.
8 The Run enable signal is set to OPEN, which causes
the frequency to go to 0. Configure the Run enable
signal with parameter P3.5.1.15.
9 The Run enable signal is set to CLOSED, which does
not affect, because a rising edge is necessary for the
start, even if CS1 is active.
10 The STOP button on the keypad is pushed and the
frequency that is fed to the motor goes to 0. (This
signal only works if the value of P3.2.3 Keypad Stop
Button is Yes.)
11 CS1 is opened and closed again, which causes the
motor to start.
12 CS1 becomes inactive and the frequency that is fed
to the motor goes to 0.
Parameter Descriptions
t
10 11 12
Description
AB298035655957en-000201 / DPD01083 | 181
