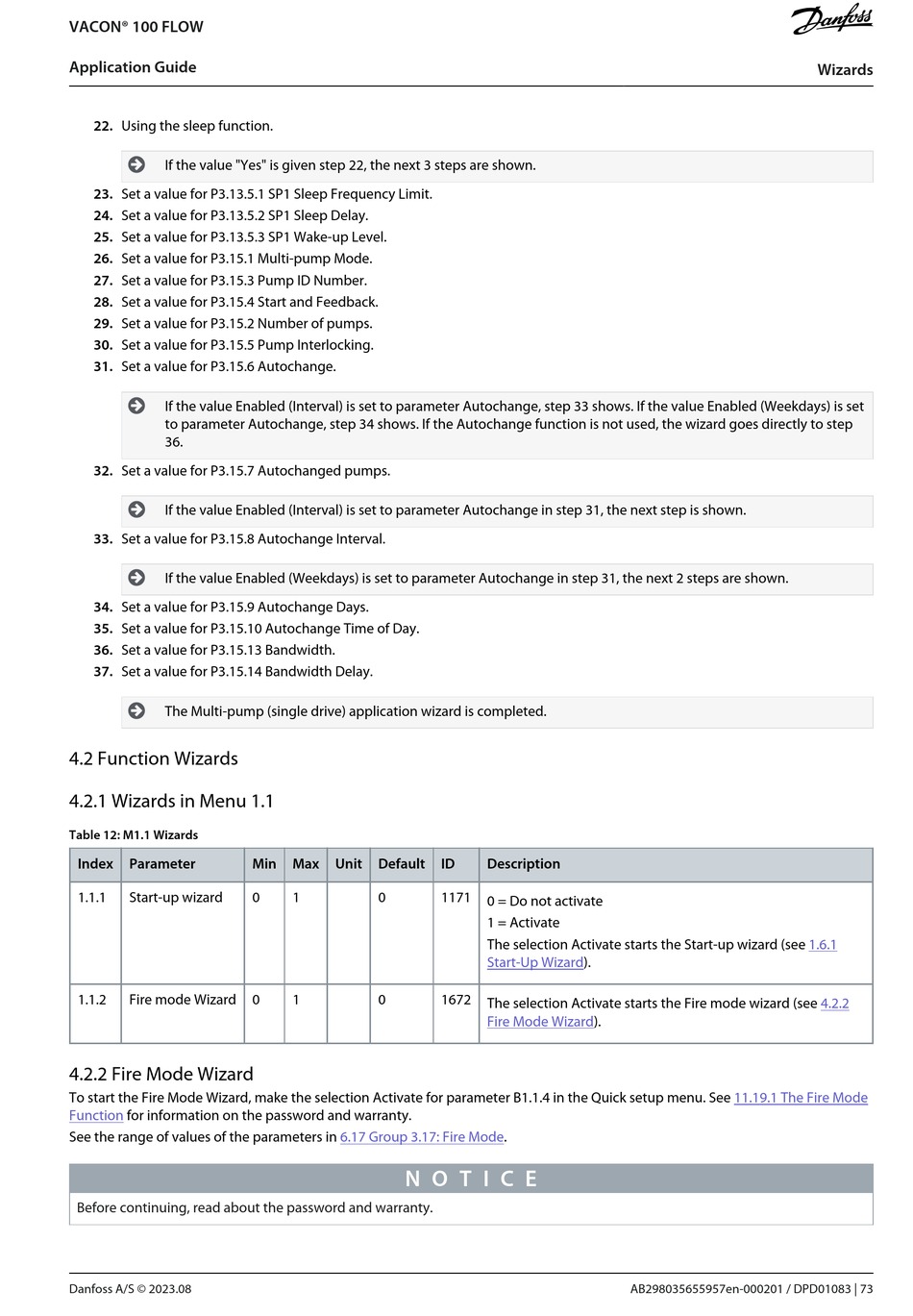

VACON® 100 FLOW
Application Guide
22. Using the sleep function.

If the value "Yes" is given step 22, the next 3 steps are shown.
23. Set a value for P3.13.5.1 SP1 Sleep Frequency Limit.
24. Set a value for P3.13.5.2 SP1 Sleep Delay.
25. Set a value for P3.13.5.3 SP1 Wake-up Level.
26. Set a value for P3.15.1 Multi-pump Mode.
27. Set a value for P3.15.3 Pump ID Number.
28. Set a value for P3.15.4 Start and Feedback.
29. Set a value for P3.15.2 Number of pumps.
30. Set a value for P3.15.5 Pump Interlocking.
31. Set a value for P3.15.6 Autochange.

If the value Enabled (Interval) is set to parameter Autochange, step 33 shows. If the value Enabled (Weekdays) is set
to parameter Autochange, step 34 shows. If the Autochange function is not used, the wizard goes directly to step
36.
32. Set a value for P3.15.7 Autochanged pumps.

If the value Enabled (Interval) is set to parameter Autochange in step 31, the next step is shown.
33. Set a value for P3.15.8 Autochange Interval.

If the value Enabled (Weekdays) is set to parameter Autochange in step 31, the next 2 steps are shown.
34. Set a value for P3.15.9 Autochange Days.
35. Set a value for P3.15.10 Autochange Time of Day.
36. Set a value for P3.15.13 Bandwidth.
37. Set a value for P3.15.14 Bandwidth Delay.

The Multi-pump (single drive) application wizard is completed.

4.2 Function Wizards

4.2.1 Wizards in Menu 1.1

Table 12: M1.1 Wizards
Index Parameter
1.1.1 Start-up wizard
1.1.2

Fire mode Wizard

4.2.2 Fire Mode Wizard
To start the Fire Mode Wizard, make the selection Activate for parameter B1.1.4 in the Quick setup menu. See
Function for information on the password and warranty.
See the range of values of the parameters in
Before continuing, read about the password and warranty.
Danfoss A/S © 2023.08
Min Max Unit Default
0 1 0
0 1 0
6.17 Group 3.17: Fire
N O T I C E
ID Description
1171
0 = Do not activate
1 = Activate
The selection Activate starts the Start-up wizard (see
Start-Up Wizard).
1672
The selection Activate starts the Fire mode wizard (see
Fire Mode Wizard).
Mode.
11.19.1 The Fire Mode
AB298035655957en-000201 / DPD01083 | 73
Wizards
1.6.1
4.2.2
