ASAP 2020 Confirm

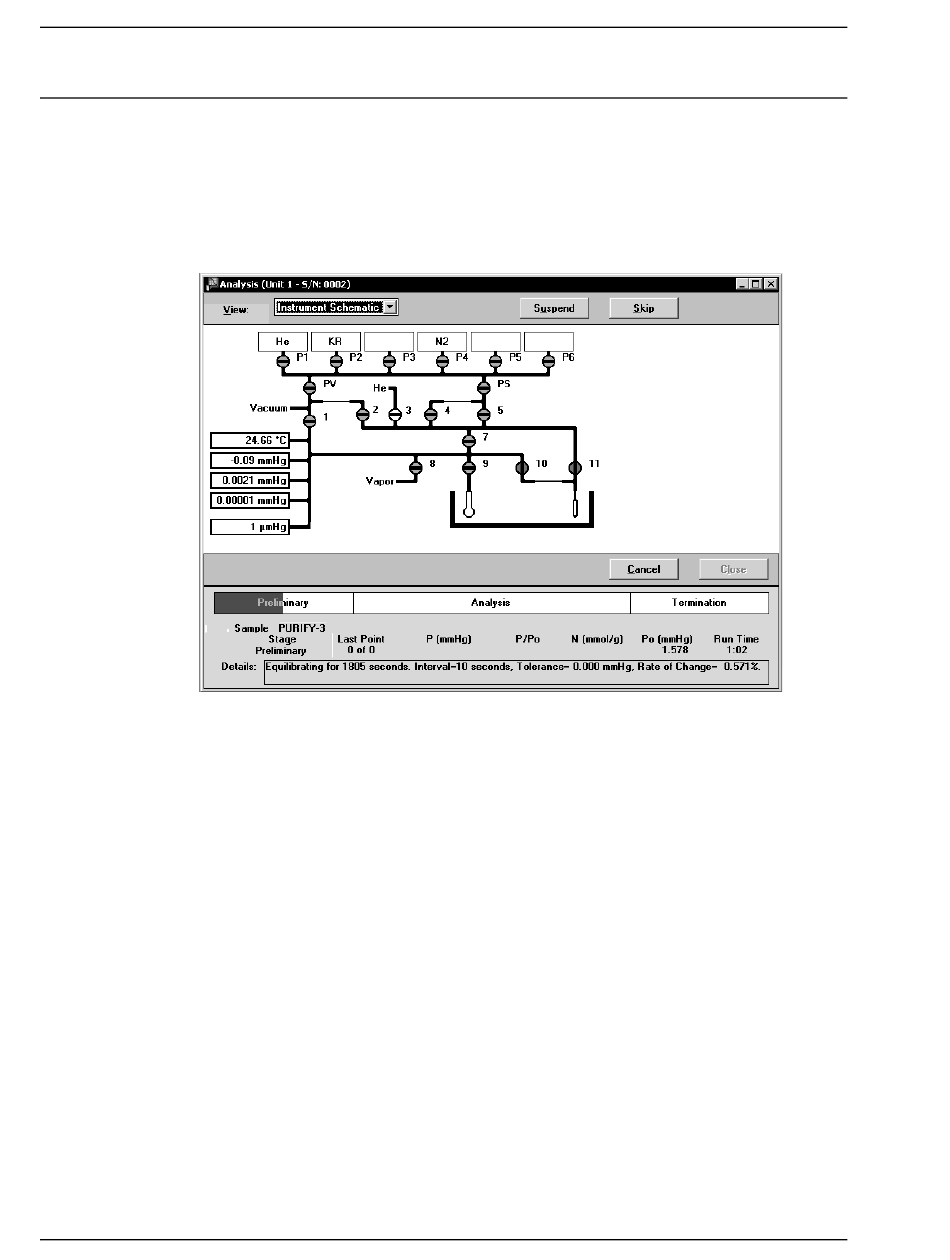

Show Instrument Schematic

Select this option to display a schematic of the ASAP 2020 analyzer. The schematic is a
graphical representation of the plumbing system including system valves, the analysis station,
and the Dewar position. The valves and Dewar can be controlled from the schematic when
Manual control is enabled. Refer to the previous section for an explanation of the components
displayed on the instrument schematic.
The state of the valves can be determined quickly by color representation even when manual
control is not enabled:
• Green = open
• White = closed
If you wish to change the state of a valve, you must enable manual control.
