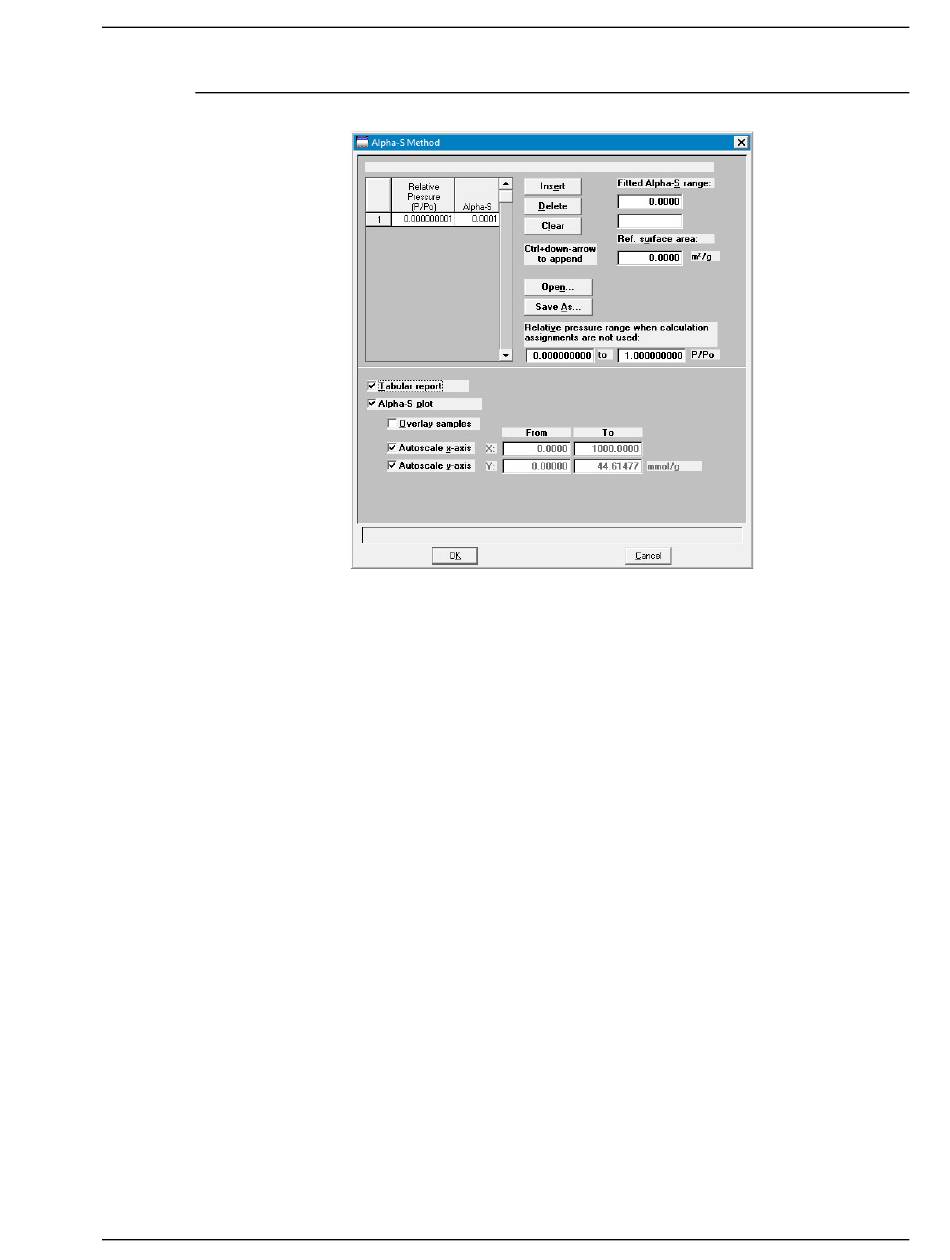

Alpha-S Plot

The Alpha-S plot converts the standard adsorption isotherm into a dimensionless isotherm
using the quantity adsorbed at a relative pressure of 0.4.
Table
Insert
Delete
Clear
202-42811-01 - Mar 2011
Provides two columns for entering the relative pressure (first
column) and the alpha-s values (second column). This table
can also be created in another application if desired and
imported into this dialog using
table in another application, the file must be saved as ASCII
text with an ALS extension. Use a two-column format with
the relative pressures in the first column and the alpha-s
values in the second column. Columns must be separated by a
space (or a tab).
Inserts a row above the selected row. A row cannot be
inserted if the value in the selected row is at its lowest value;
values must be strictly increasing. For example, in the table
shown above, the default value is 0.000000001. Therefore
you must use
Ctrl + Down Arrow
Deletes the selected row.
Clears the table of all but one entry, one entry is required.
ASAP 2020 Confirm
. When creating the
Open
to insert rows.
