Lower - Micromeritics ASAP 2020 Confirm Operator's Manual

ASAP 2020 Confirm

Lower

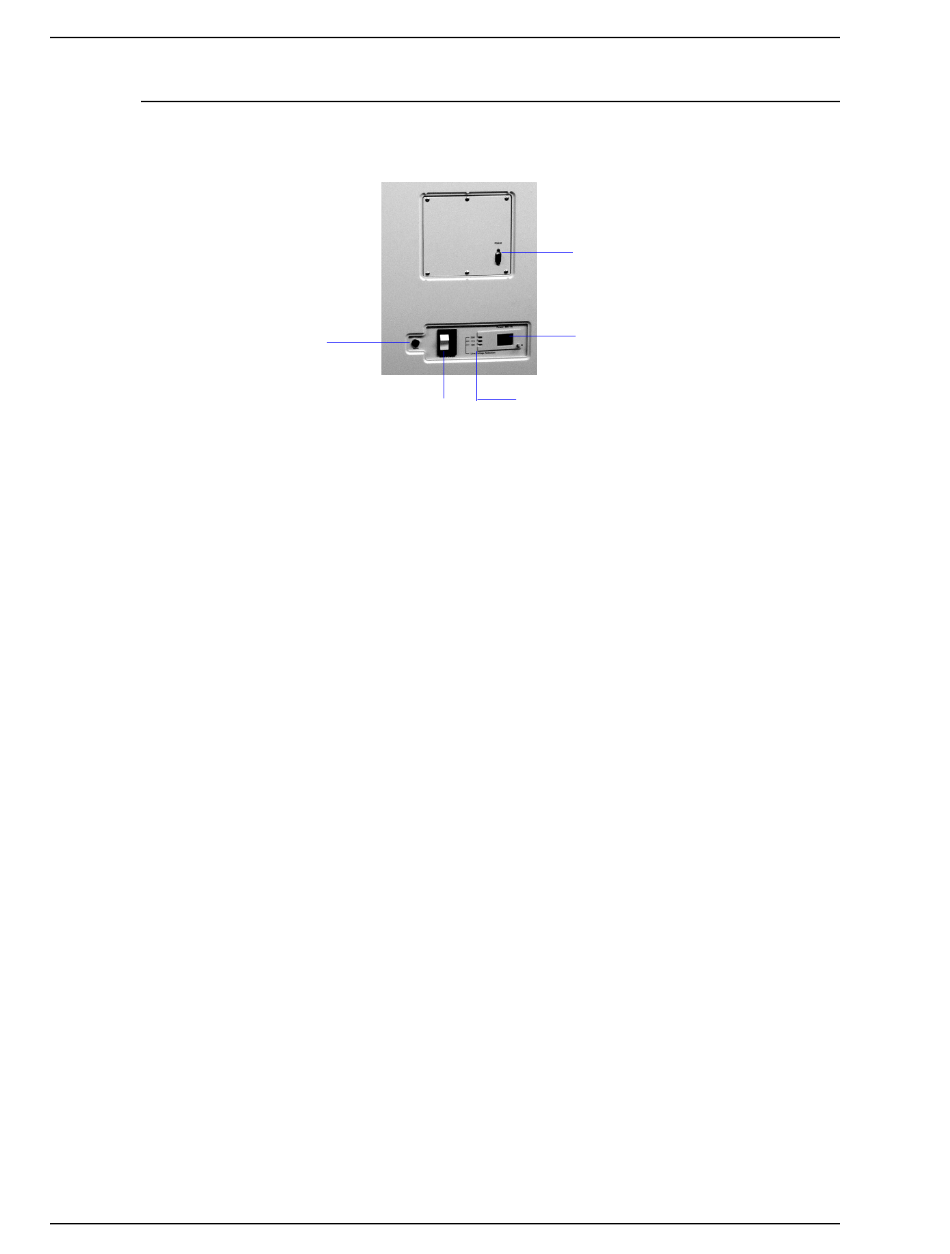

On/Off switch
Power connector
Ethernet port
Valve circuit breaker
Voltage selector switch
2-6
Valve Circuit
Breaker
On/Off Switch
For turning the analyzer on and off. This switch also serves
as the main breaker for the analyzer; it switches off auto-
matically in the event of an electrical fault.
For connecting the analyzer to the electrical supply.
For connecting the analyzer to a computer.
Protects the circuitry for the valves in the event of a failure.
If the circuit breaker trips (pops out) and continues to trip
after being reset, call your Micromeritics service representa-
tive.
For setting the analyzer to the correct incoming AC line
voltage.
Controls, Indicators, and Connectors
Ethernet
Power Connector
Voltage Selector Switch
