Side Panel; Upper - Micromeritics ASAP 2020 Confirm Operator's Manual

Controls, Indicators, and Connectors

Side Panel

Upper

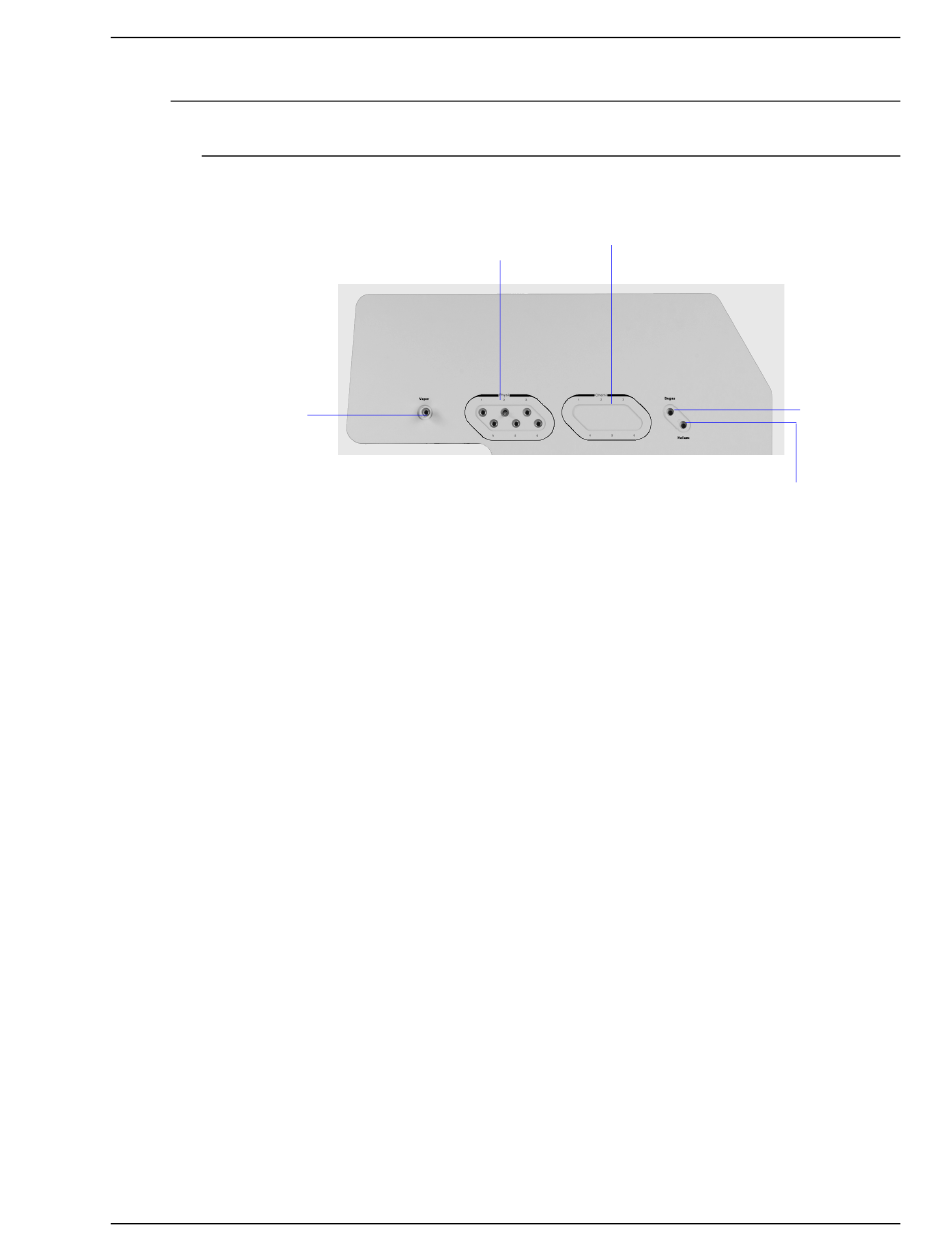

Vapor Gas Port
Gas inlet ports
Vapor gas port
Degas port
Helium port
202-42811-01 - May 2012
Chemisorption Ports
(available if upgraded to
Chemisorption capability)
Gas Inlet Ports
Used to connect gas supplies to the analyzer.
For attaching the water vapor option, or connecting a vapor
gas. Refer to ORDERING INFORMATION
ordering information on the water vapor option.
Allows connection of a gas to use for degassing the sample.
Allows connection of helium to use for measuring the free
space.
ASAP 2020 Confirm
Degas Port
Helium Port
9-1 for
, page
2-5
