Micromeritics ASAP 2020 Confirm Operator's Manual page 130

ASAP 2020 Confirm
Broekhoff-de Boer
Carbon Black STSA
Surface Area group box
4-54

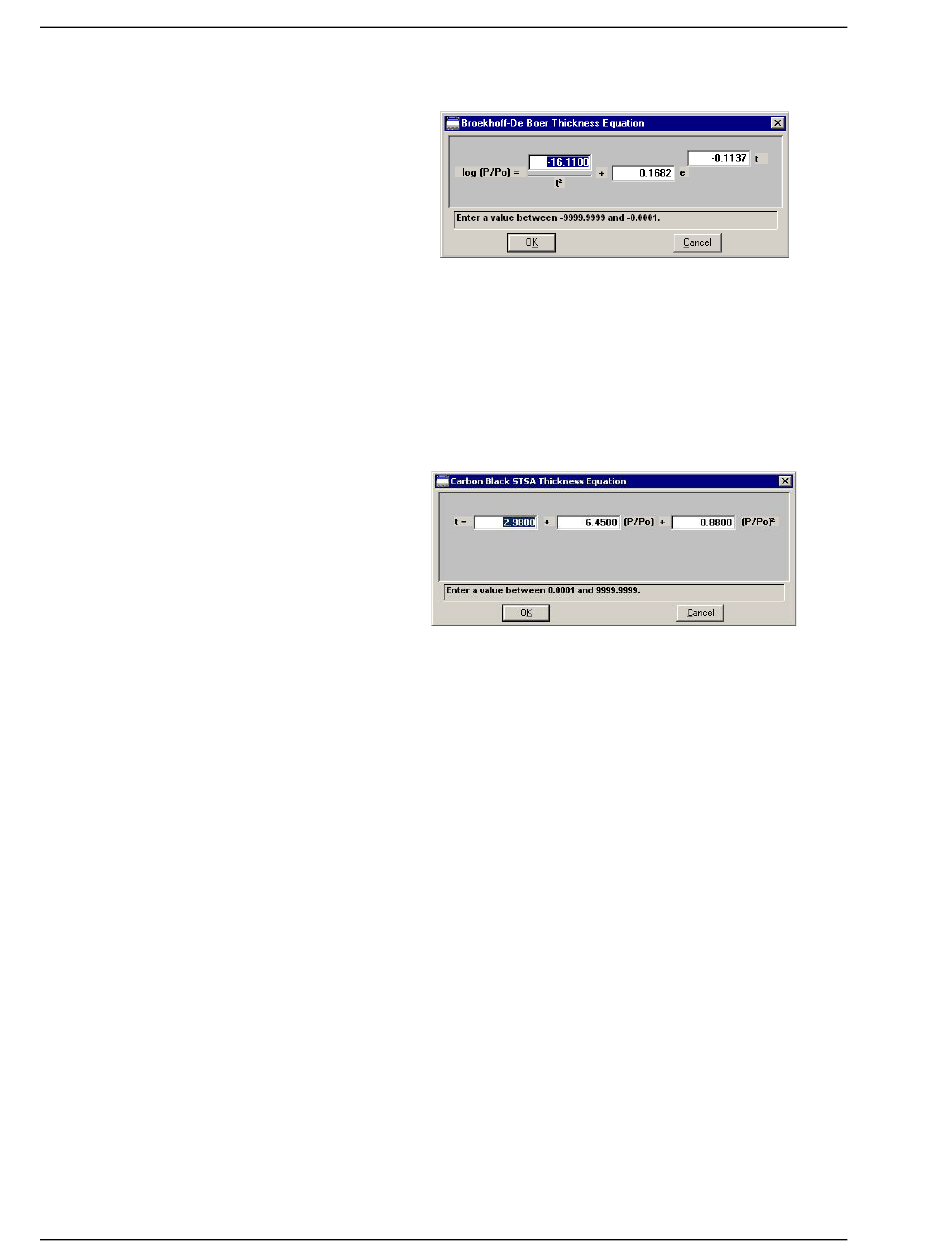

Displays the Broekhoff-de Boer Thickness equation dialog.
You can edit the values for the multiplier, numerator, and
exponent. The range for a selected field is shown in the
information bar at the bottom of the dialog.
Refer to t-Plot, page C-11, for additional information.
Displays the Carbon Black STSA Thickness Equation dialog.
All coefficients can be edited. The range for a selected field is
shown in the information bar at the bottom of the dialog.
Refer to t-Plot, page C-11, for additional information.
Allows you to choose the surface area value used for
thickness calculations. You can use BET (most commonly
used), Langmuir, or enter one of preference.
New
202-42811-01 - Mar 2011
