Enable Manual Control

Enable Manual Control

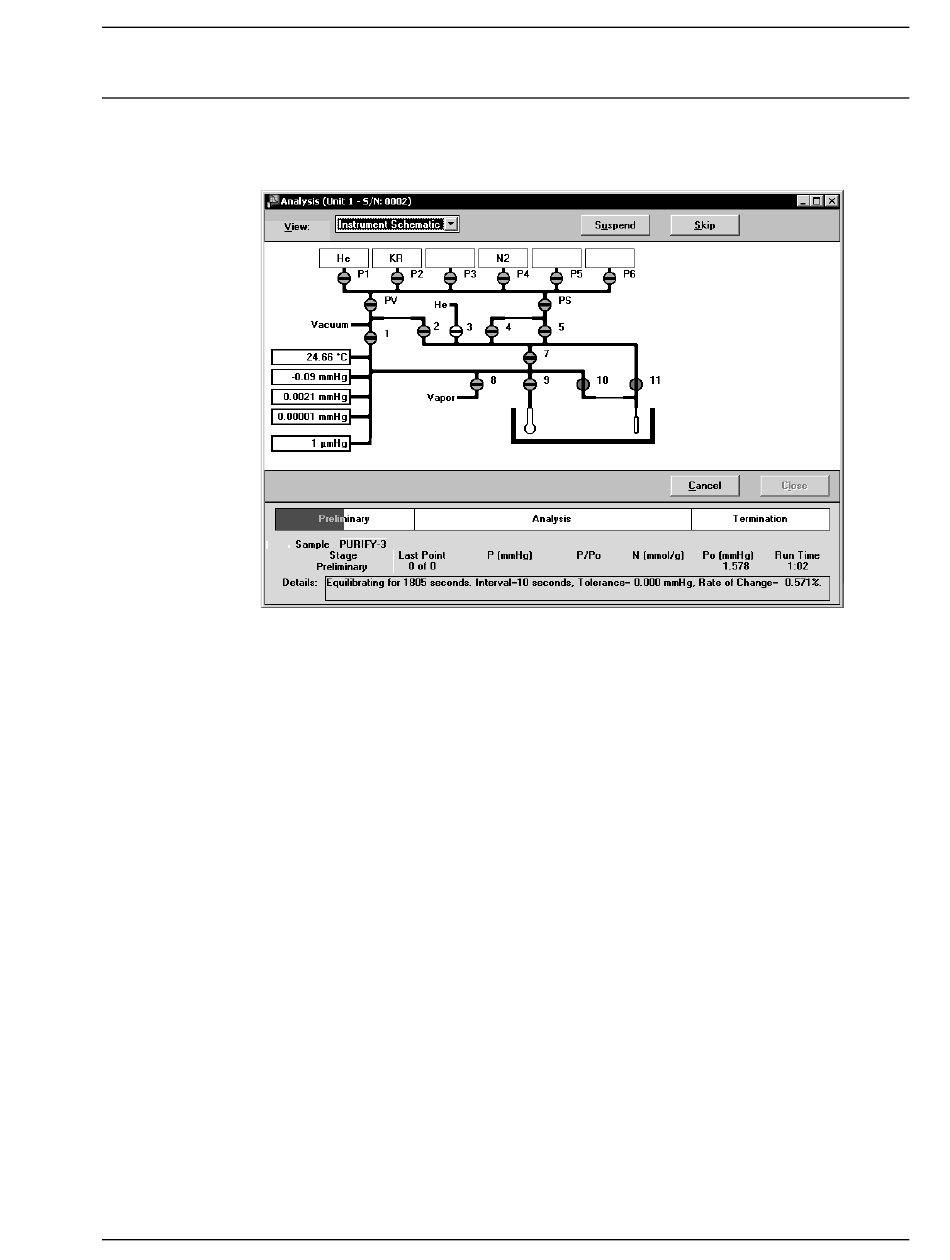

Select this option to control certain components of your system manually. If the instrument
schematic is not displayed, select Show Instrument Schematic.
When manual control is enabled, the valve symbols change color on the monitor screen to
indicate their status.
Green = open
Yellow = closed
Use the mouse pointer to select a component. A component is selected when it is surrounded
by a thin line. Each component has a shortcut menu displaying the operations available for
that particular component. These menus may be accessed by right-clicking on the desired
component, or by using the shortcut keys
You can open and close valves, and raise or lower the elevator by using one of the following
methods:
• right-click on the valve or elevator symbol to access the shortcut menu and select the
appropriate action
• double-click on the valve or elevator symbol
• select the valve or elevator symbol and press the
202-42811-01 - Mar 2011
.
Shift + F9
Spacebar
ASAP 2020 Confirm
5-9
