Micromeritics ASAP 2020 Confirm Operator's Manual page 96

ASAP 2020 Confirm
Geometric from
saturation
Insert predefined
Insert
Delete
Clear
4-20
Inserts geometrically spaced points from the saturation
pressure. For example, to insert 5 points with a 0.99 starting
pressure and a 0.84 ending pressure, the following points are
inserted into the table:
0.99
0.98
0.96
0.92
0.84

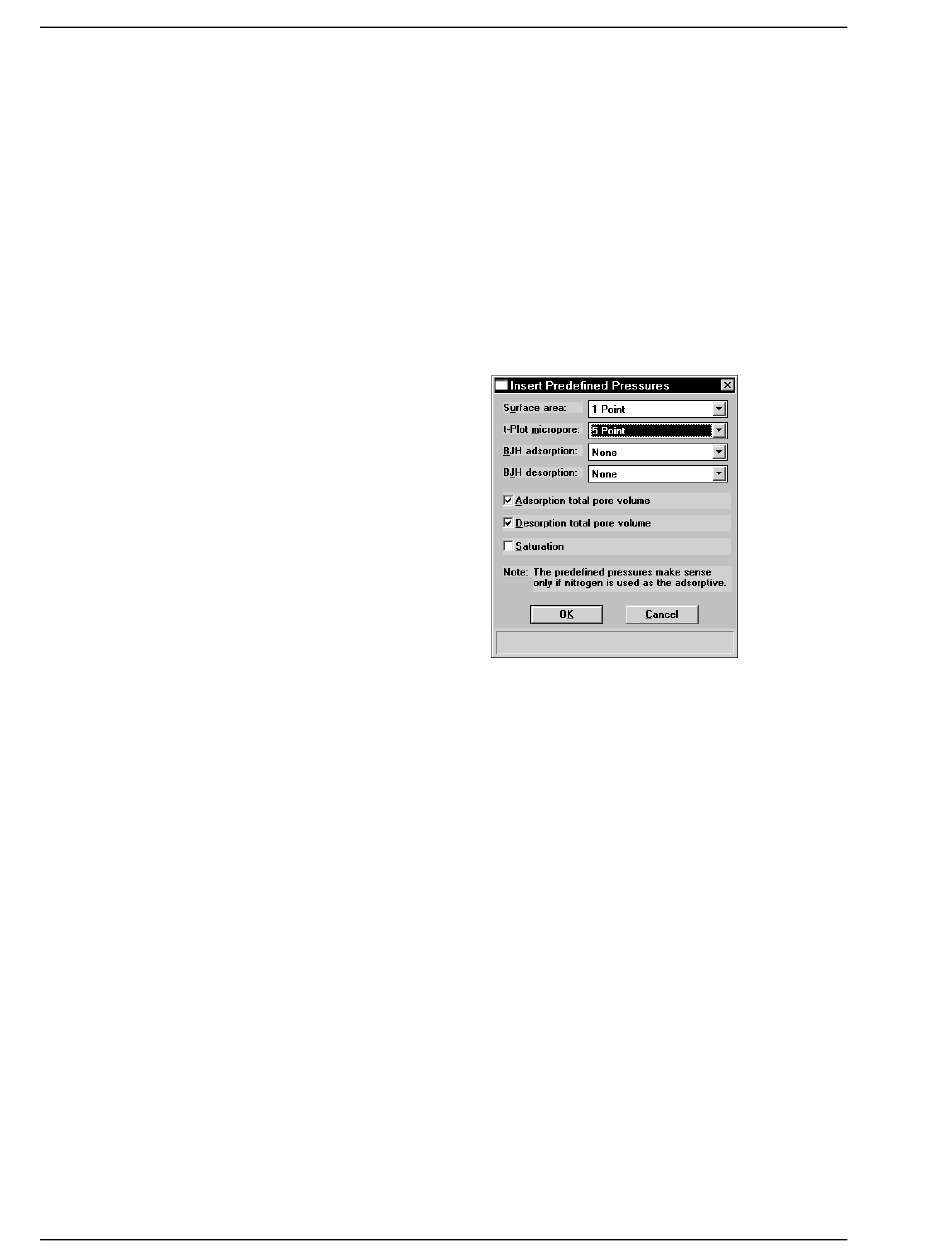

Displays the Insert Predefined Pressures dialog.
Choose predefined pressure points for surface area, t-Plot
micropore, and/or BJH adsorption/desorption.
Click on the down arrow for each field to choose the desired
set of points. You can also specify Adsorption/ Desorption
total pore volume and Saturation.
Inserts a row into the table above the selected line.
Deletes the selected row.
Removes all but one required entry from the table. The rows
do not have to be selected. A warning message appears
requesting confirmation before the table is cleared.
New
202-42811-01 - Mar 2011
