Front Panel - Micromeritics ASAP 2020 Confirm Operator's Manual

ASAP 2020 Confirm

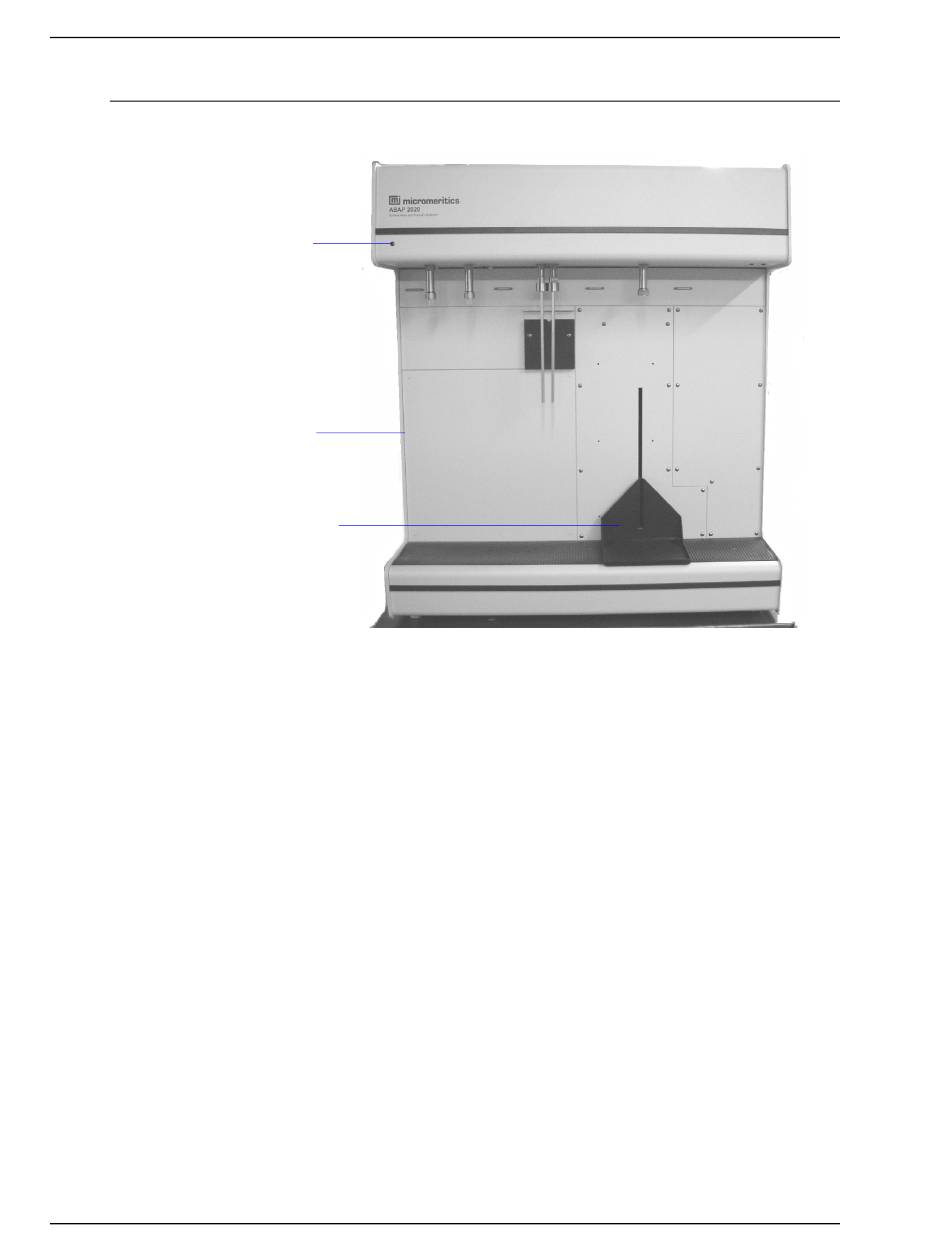

Front Panel

Indicator Light
Vacuum Pump
Panel
Green indicator light
Vacuum pump panel
Vacuum pump sight
window
2-2
Elevator
Illuminated when power is applied to the analyzer.
Allows access to the vacuum pumps. Remove this panel
when you need to service the pumps.
It is not necessary to remove the panel to inspect the condi-
tion of the oil or the oil level (oil-sealed forepump). To
accomplish either of these tasks, remove (or fold over to the
right) the protective rubber mat from the work surface and
lift off the metal cover; this exposes the vacuum pump sight
window.
Enables you to inspect the oil levels in the degas and analy-
sis pumps.
