Control Chart
Graph [n]
Statistic
Autoscale
Center Line
Limit Lines
Tabular report
Recalculate archived
SPC results
202-42811-01 - Mar 2008

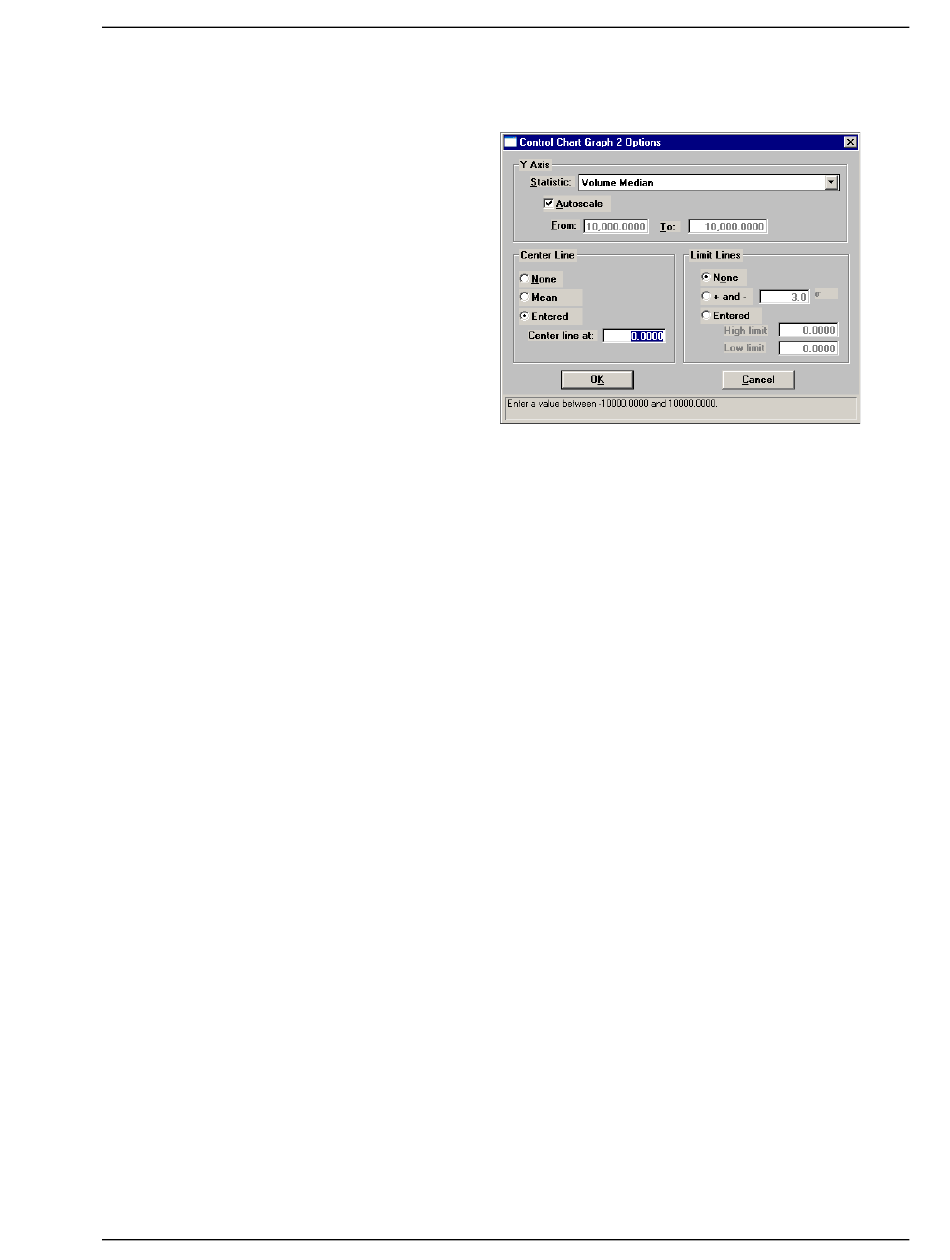

Displays the Control Chart Graph [n] Options dialog,
allowing you to define the Y-axis of each graph.
This drop-down list displays the SPC variables selected on
the SPC Report Options dialog. The variable you choose will
be plotted against time.
Allows you to have the Y-axis scaled automatically. If you
wish to specify a range, deselect this option and enter a range
in the From and To fields.
Displays placement options for the variable's optional value.
Choose Entered to specify placement of the line.
Displays the options available for limiting lines. You can
have the lines placed at some multiple of the standard
deviation or at specified positions (Entered).
When you select Entered, the High limit and Low limit
fields are enabled, allowing you to enter appropriate values.
Allows you to generate tabular, as well as graphical, data of
the included samples. A tabular report contains the numeric
values contributed by each sample.
Select this option to have archived SPC values recalculated.
This ensures that any changes made to the SPC Report
Options are included in the new report. It also lengthens the
time required to generate the report.
