Plot Options
Selecting a Horvath-Kawazoe plot option from the Horvath-Kawazoe Report Options dialog
enables you to specify the plotting method used for your report and to customize the plot.
Plots for Cumulative Pore Volume and dV/dw Pore Volume are available.
When you select either of these plots from the Horvath-Kawazoe Report Options dialog box,

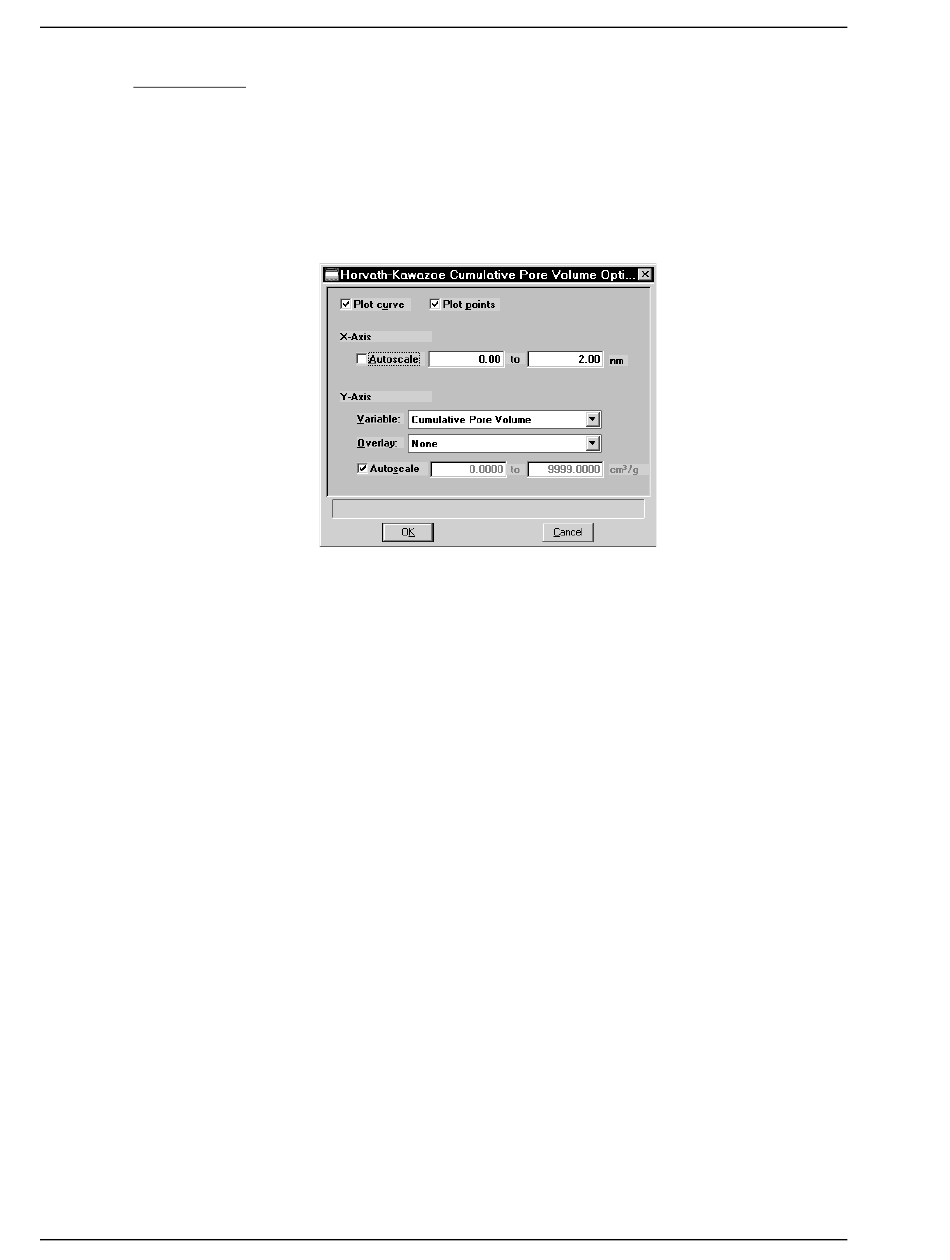

a dialog box like the following is displayed.
Plot Options
X-axis options
Y-axis options
4-74
Lists the data presentation styles available; you must choose
to plot a curve, points, or both.
Choose Autoscale to have the x-axis scaled automatically.
The X-axis begins at zero and the system uses the highest
value collected during analysis as the ending point.
If you deselect Autoscale, the adjacent fields are enabled so
that you may enter a beginning and ending value. Data
collected outside these ranges are not included in the plot.
X-axis range fields show pore radius or diameter in
angstroms or nanometers.
Data ranges are displayed in the information bar across the
bottom of the dialog when the cursor is in a numerical data
entry field.
Click on the down-arrow at the Variable field to choose a
variable for the Y-axis.
Click on the down-arrow at the Overlay field to overlay the
plot with data from other samples.
