New
Options
Tabular Options
Plot Options
202-42811-01 - Mar 2011

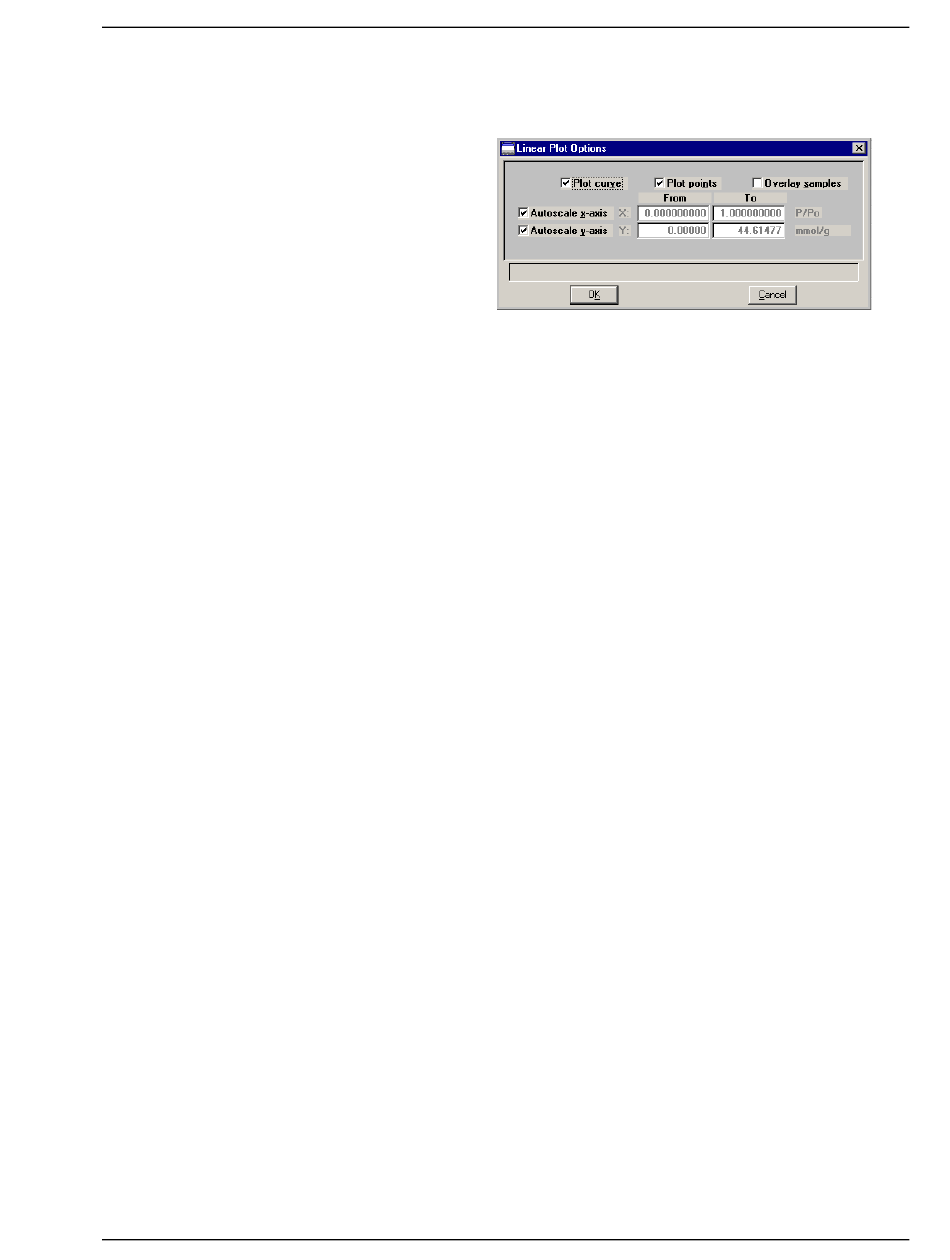

Displays the related Plot Options dialog; this example shows
the dialog for the Linear plot.
All plot dialogs contain the same options.
You can plot the graphs as a curve, points, or both.
Select Overlay samples to overlay data from the current plot
with data from other samples. The other sample files are
selected by clicking
Overlays
Autoscale options enable you to have the X- and/or Y-axes
automatically scaled.
Linear X-axes begin at zero, and logarithmic X-axes begin at
an appropriate value. Y-axes begin at zero. The system uses
the highest values collected during analysis as the ending
points for axes ranges.
If you choose not to autoscale data, the From and To fields
are enabled, allowing you to specify a range. Data collected
outside the specified range are not included in the plot.
The value entered in the To field must be greater than the
value entered in the From field.
The X-axis fields show the relative pressure.The Y-axis fields
show the quantity of gas adsorbed.
Enables you to have Run Time and/or Time Between Points
reported. Run time reports the time elapsed from the begin-
ning of the analysis to the finish. Time between points reports
the time elapsed between each point.
Also enables you to report Weight % when plotting pressure
composition.
Enables you to choose the type of isotherm you wish to plot.
You can plot the adsorption and/or the desorption isotherm.
ASAP 2020 Confirm
on the Report Options dialog.
