New
Pressure Table
Insert Range
Linear
Geometric from low
pressure
202-42811-01 - Mar 2011
Edit an existing value by highlighting the field and entering
the desired value. Use
Insert
values. To append to the beginning or to the end of the table,
use and
Ctrl + Up Arrow
The pressure table must contain one sequence of strictly
ascending relative pressures, optionally followed by one
sequence of strictly descending relative pressures. You can
enter a maximum of one thousand pressure points.
To specify the calculations performed at a given relative
pressure, click in the field of the desired calculation type; an
X in the field indicates the calculation is selected.

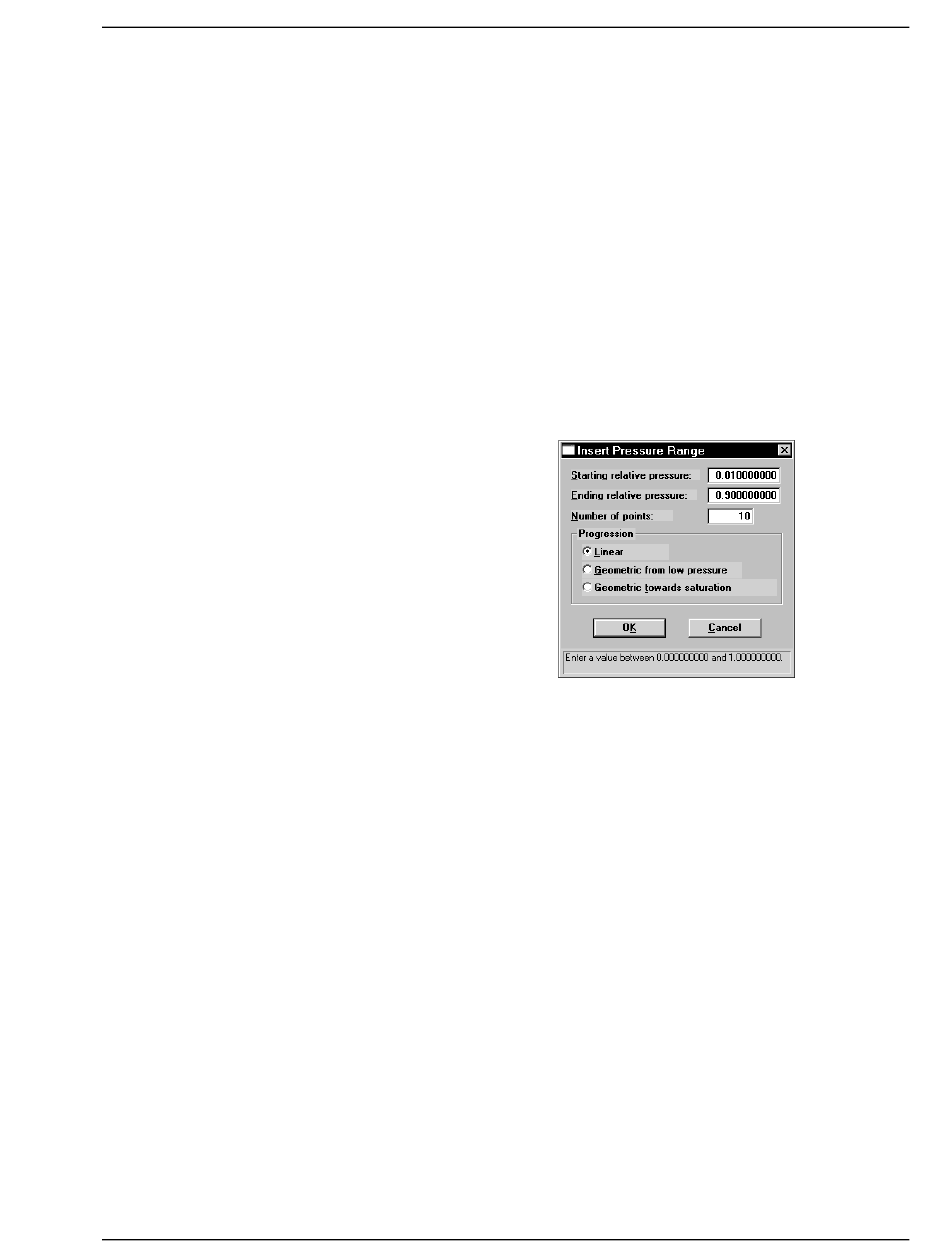

Displays the Insert Pressure Range dialog.
This dialog allows you to specify the starting pressure, the
ending pressure, the number of points to insert within the
specified range, and whether you wish to have linear or
geometric progression.
Inserts evenly spaced points into your table.
Inserts geometrically spaced points from the low pressure
range. For example, to insert 5 points with a 0.01 starting
pressure and a 0.16 ending pressure, the following points are
inserted into the table:
0.01
0.02
0.04
0.08
0.16
ASAP 2020 Confirm
to add rows for additional
, respectively.
Ctrl + Down arrow
4-19
