Show Instrument Schematic - Micromeritics ACCUPYC II 1345 Operator's Manual

Gas displacement pycnometer
Hide thumbs Also See for ACCUPYC II 1345:
Table of Contents

Advertisement

S
I
HOW
NSTRUMENT
Unit [n] > Show Instrument Schematic

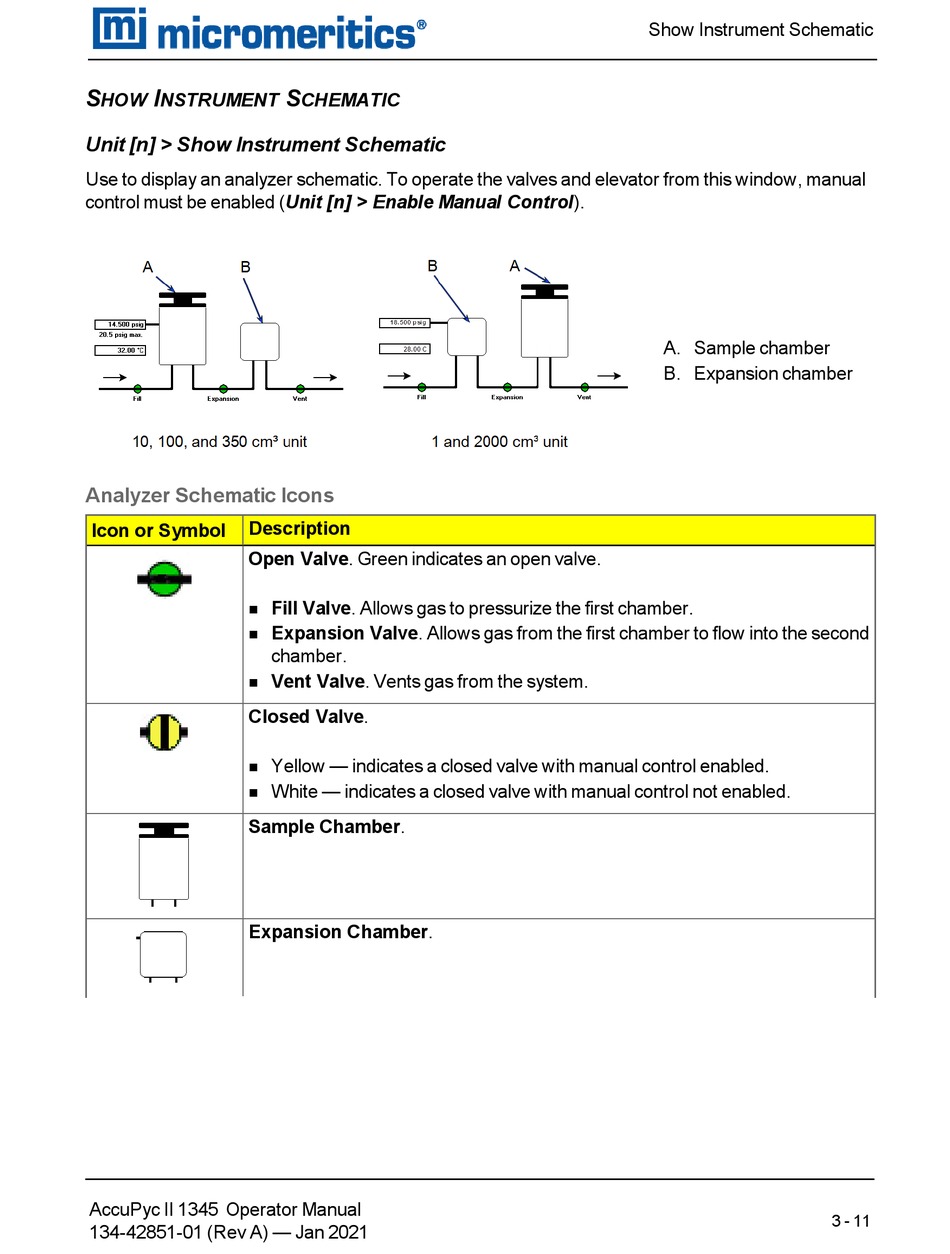

Use to display an analyzer schematic. To operate the valves and elevator from this window, manual
control must be enabled (Unit [n] > Enable Manual Control).
Analyzer Schematic Icons
Description
Icon or Symbol
Open Valve. Green indicates an open valve.
n
n
n
Closed Valve.
n
n
Sample Chamber.
Expansion Chamber.
AccuPyc II 1345 Operator Manual
134-42851-01 (Rev A) — Jan 2021
S
CHEMATIC
Fill Valve. Allows gas to pressurize the first chamber.
Expansion Valve. Allows gas from the first chamber to flow into the second
chamber.
Vent Valve. Vents gas from the system.
Yellow — indicates a closed valve with manual control enabled.
White — indicates a closed valve with manual control not enabled.

Show Instrument Schematic

A. Sample chamber
B. Expansion chamber
3 - 11
