Show Instrument Schematic - Micromeritics DVVA II 4000 Operator's Manual

Show Instrument Schematic

Show Instrument Schematic

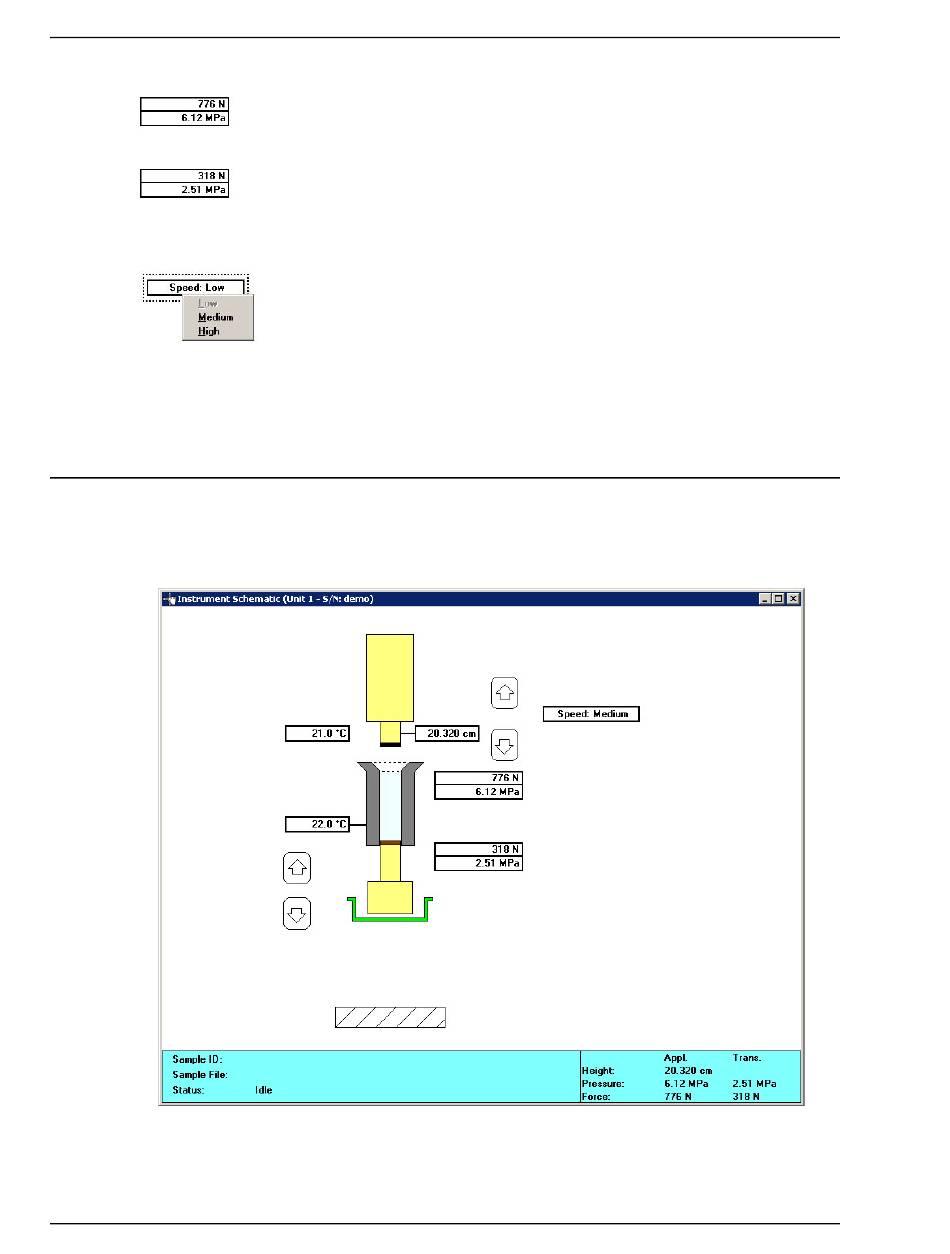

Select this option to display a schematic of the DVVAII 4000.
Refer to page
6-10
6-12
These readings display to the right of the sample chamber.
A
A. The applied force and pressure at which the upper piston
presses against the lower piston.
B
B. The transmitted force and pressure received by the lower
piston.
Displays the speed at which the upper piston travels. Right-click
on the icon to display its shortcut menu, or press
when the icon is selected.
Actions:
for a description of the components on the instrument schematic.
Low, Medium, High
400-42803-01 (Rev B) - July 2017
DVVA II 4000
Shift + F9
