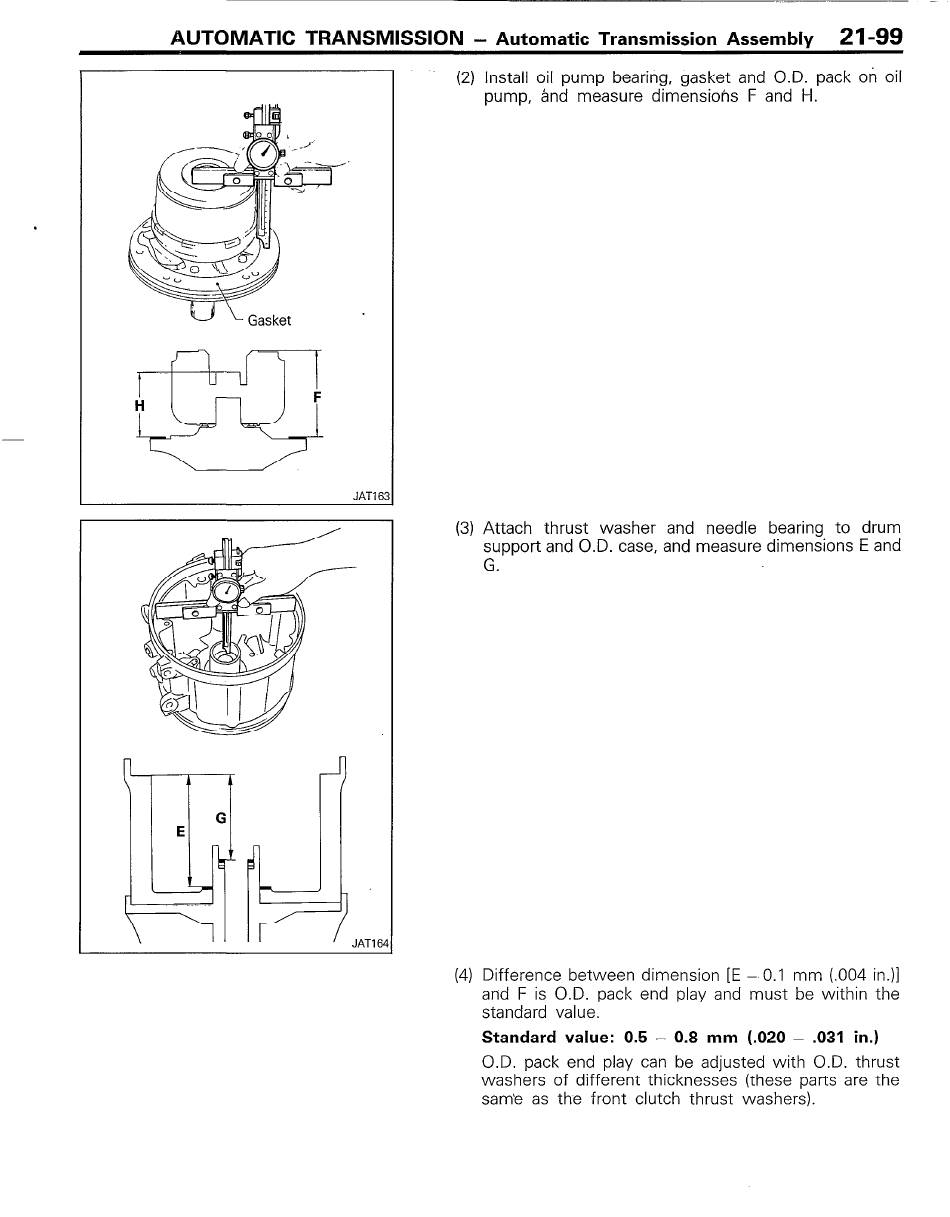

AUTOMATIC TRANSMISSION - Automatic Transmission Assemblv 21-99
H
F
a
JAT16:
(2) Install oil pump bearing, gasket and O.D. pack on oil
pump, and measure dimensions F and H.
(3) Attach thrust washer and needle bearing to drum
support and O.D. case, and measure dimensions E and
G.
(4) Difference between dimension [E - 0.1 mm (.004 in.)]
and F is O.D. pack end play and must be within the
standard value.
Standard value: 0.5 - 0.8 mm (.020 - .031 in.)
O.D. pack end play can be adjusted with O.D. thrust
washers of different thicknesses (these parts are the
sam'e as the front clutch thrust washers).
