Parameter Descriptions
Function
Parameter 1-90 Motor Thermal
Protection
Parameter 1-94 ATEX ETR cur.lim.
speed reduction
Parameter 1-98 ATEX ETR interpol.
points freq.
Parameter 1-99 ATEX ETR interpol
points current
Parameter 1-23 Motor Frequency
Parameter 4-19 Max Output
Frequency
Parameter 4-18 Current Limit
Parameter 5-15 Terminal 33
Digital Input
Parameter 5-19 Terminal 37 Safe
Stop
Parameter 14-01 Switching
Frequency
Parameter 14-26 Trip Delay at
Inverter Fault
Table 3.9 Parameters
NOTICE
Compare the minimum switching frequency requirement
stated by the motor manufacturer to the minimum
switching frequency of the frequency converter, the
default value in parameter 14-01 Switching Frequency. If
the frequency converter does not meet this requirement,
use a sine-wave filter.
More information about ATEX ETR thermal monitoring can
be found in Application Note for FC 300 ATEX ETR Thermal
Monitoring Function.
3.2.17 Klixon
The Klixon type thermal circuit breaker uses a KLIXON
metal dish. At a predetermined overload, the heat caused
by the current through the disc causes a trip.
Using a digital input and 24 V as supply:
Example: The frequency converter trips when the motor
temperature is too high.
MG33MO02
Programming Guide
Setting
[20] ATEX ETR
20%
Motor nameplate.
Enter the same value as for
parameter 4-19 Max Output
Frequency.
Motor nameplate, possibly
reduced for long motor cables,
sine-wave filter, or reduced
supply voltage.
Forced to 150% by 1-90 [20]
[80] PTC Card 1
[4] PTC 1 Alarm
Check that the default value
fulfills the requirement from
motor nameplate. If not, use a
sine-wave filter.
0
®
Danfoss A/S © 01/2018 All rights reserved.
Parameter set-up:
•
Set parameter 1-90 Motor Thermal Protection to [2]
Thermistor Trip.
•
Set parameter 1-93 Thermistor Source to [6] Digital
Input.
12 13 18 19 27 29 32 33 20 37
PTC / Thermistor

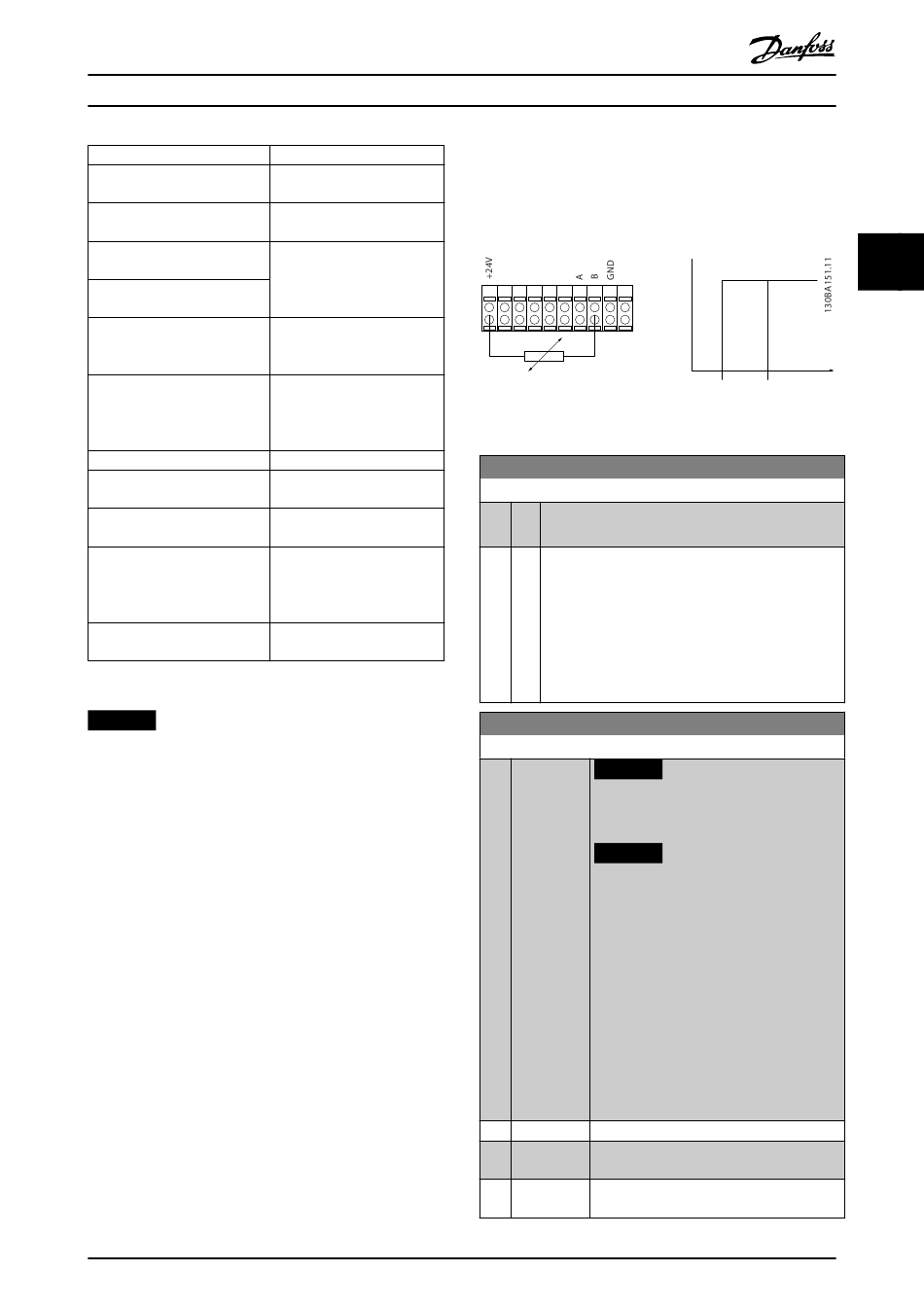

Illustration 3.17 Thermistor Connection
1-91 Motor External Fan
Option: Function:
[0] No No external fan is required, that is the motor is
*
derated at low speed.
[1] Yes Applies an external motor fan (external ventilation), so
no derating of the motor is required at low speed. The
upper curve in Illustration 3.16 (f
followed if the motor current is lower than nominal
motor current (see parameter 1-24 Motor Current). If
the motor current exceeds nominal current, the
operation time still decreases as if no fan was
installed.
1-93 Thermistor Source
Option: Function:
NOTICE
This parameter cannot be adjusted
while the motor is running.
NOTICE
Set digital input to [0] PNP - Active at
24 V in parameter 5-00 Digital I/O Mode.
Select the input to which the thermistor (PTC
sensor) should be connected. An analog
input option [1] Analog Input 53 or [2] Analog
Input 54 cannot be selected if the analog
input is already in use as a reference source
(selected in parameter 3-15 Reference 1 Source,
parameter 3-16 Reference 2 Source, or
parameter 3-17 Reference 3 Source).
When using VLT
112, always select [0] None.
[0] None
*
[1] Analog
Input 53
[2] Analog
Input 54
OFF
ON
<6.6 k Ω >10.8 k Ω R
= 1 x f ) is
out M,N
®
PTC Thermistor Card MCB
