Danfoss VLT AutomationDrive FC 301 Programming Manual page 182

Parameter Descriptions
3 3

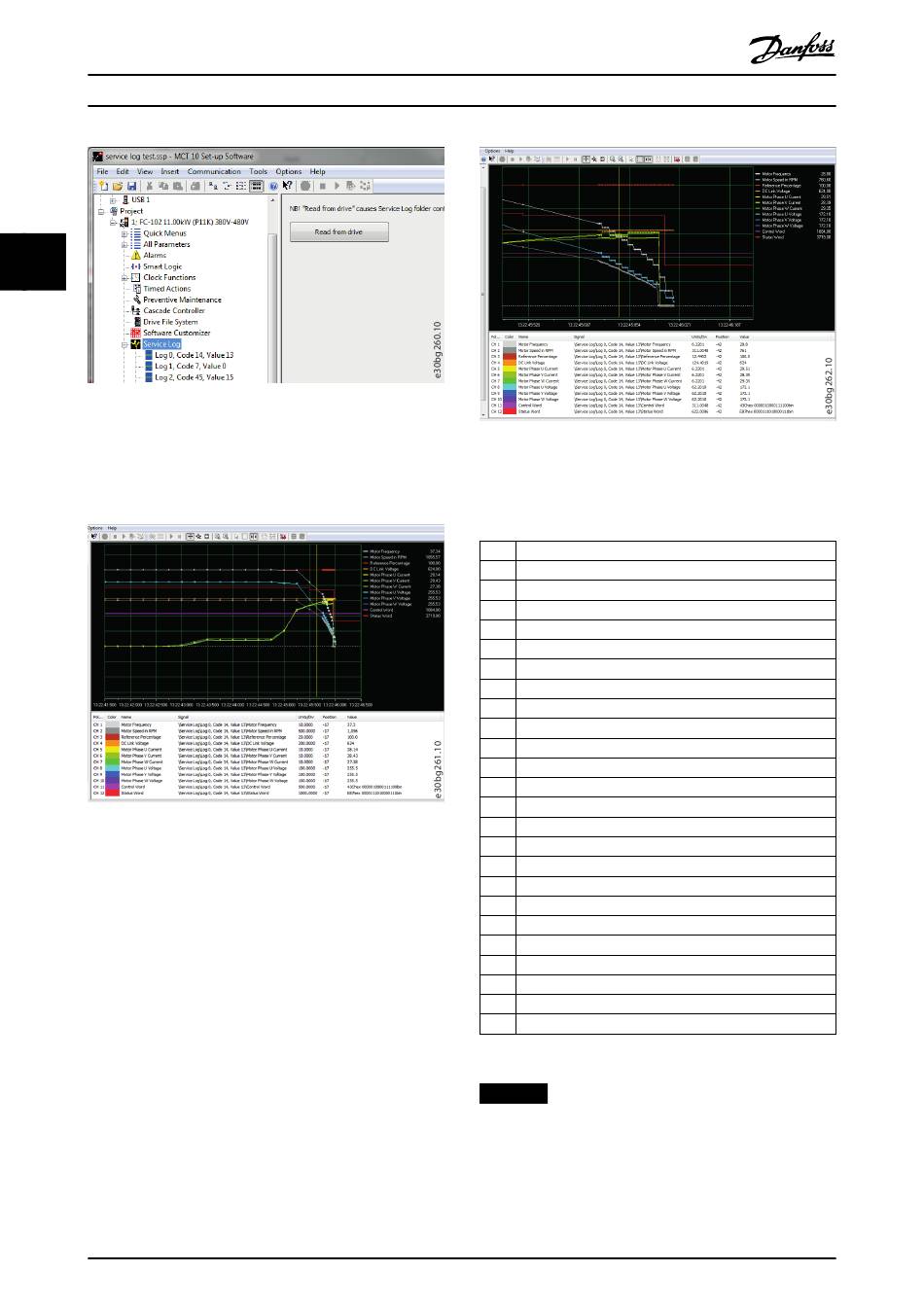

Illustration 3.65 MCT10, Read from Drive
Illustration 3.66 shows the service log view in MCT 10 Set-
up Software. Use the cursor to view the detailed readings
at a specific time.
Illustration 3.66 Service Log View, 5 s
Use the zoom function to focus on the last 250 ms before
the fault. See Illustration 3.67.
180
®
VLT AutomationDrive FC 301/302
Illustration 3.67 Service Log Detailed View, 250 ms
3.15.6 Alarms that Trigger a Service Log
#
4
5
6
7
8
9
10
12
13
14
16
18
25
26
27
28
30
31
32
36
37
44
45
59
Table 3.29 Alarms that Trigger a Service Log Record
NOTICE
If an alarm has 2 states (warning/alarm), it only triggers
a service log record when going into the alarm state
Danfoss A/S © 01/2018 All rights reserved.
Record
Alarm title
Mains phase loss
DC voltage high
DC voltage low
DC over volt
DC under volt 9Inverter overld.
Inverter overld.
Motor ETR over
Torque limit
Over Current
Earth Fault
Short Circuit
Start Failed
Brake resistor
Brake overload
Brake IGBT
Brake check
U phase loss
V phase loss
W phase loss
Mains failure
Phase imbalance
Earth Fault AL44
Earth Fault 2
Current limit
