Parameter Descriptions
5-57 Term. 33 Low Ref./Feedb. Value
Range:
0 ReferenceFeed- [-999999.999 -
backUnit 999999.999
*
ReferenceFeed-
backUnit]
5-58 Term. 33 High Ref./Feedb. Value
Range:
1500.000 Referen- [-999999.999 -
ceFeedbackUnit 999999.999
*
ReferenceFeed-
backUnit]
5-59 Pulse Filter Time Constant #33
Range: Function:
NOTICE
100 [1 - 1000
ms ms]
*
This parameter cannot be adjusted
while the motor is running.
Enter the pulse filter time constant. The
low-pass filter reduces the influence and
dampens oscillations on the feedback
signal from the control.
This is an advantage if there is a lot of
noise in the system.
3.6.6 5-6* Pulse Outputs
NOTICE
These parameters cannot be adjusted while the motor is
running.
These parameters configure pulse outputs with their
functions and scaling. Terminals 27 and 29 are allocated to
pulse output via parameter 5-01 Terminal 27 Mode and
parameter 5-02 Terminal 29 Mode, respectively.
MG33MO02
Programming Guide
Function:
Enter the low reference
value [RPM] for the motor
shaft speed. This is also
the low feedback value,
see also
parameter 5-52 Term. 29
Low Ref./Feedb. Value.
Function:
Enter the high reference
value [RPM] for the motor
shaft speed. See also
parameter 5-53 Term. 29
High Ref./Feedb. Value. Options for readout output variables:
Danfoss A/S © 01/2018 All rights reserved.
Output value
High output
value
P 5-60(term27)
P 5-63(term29)

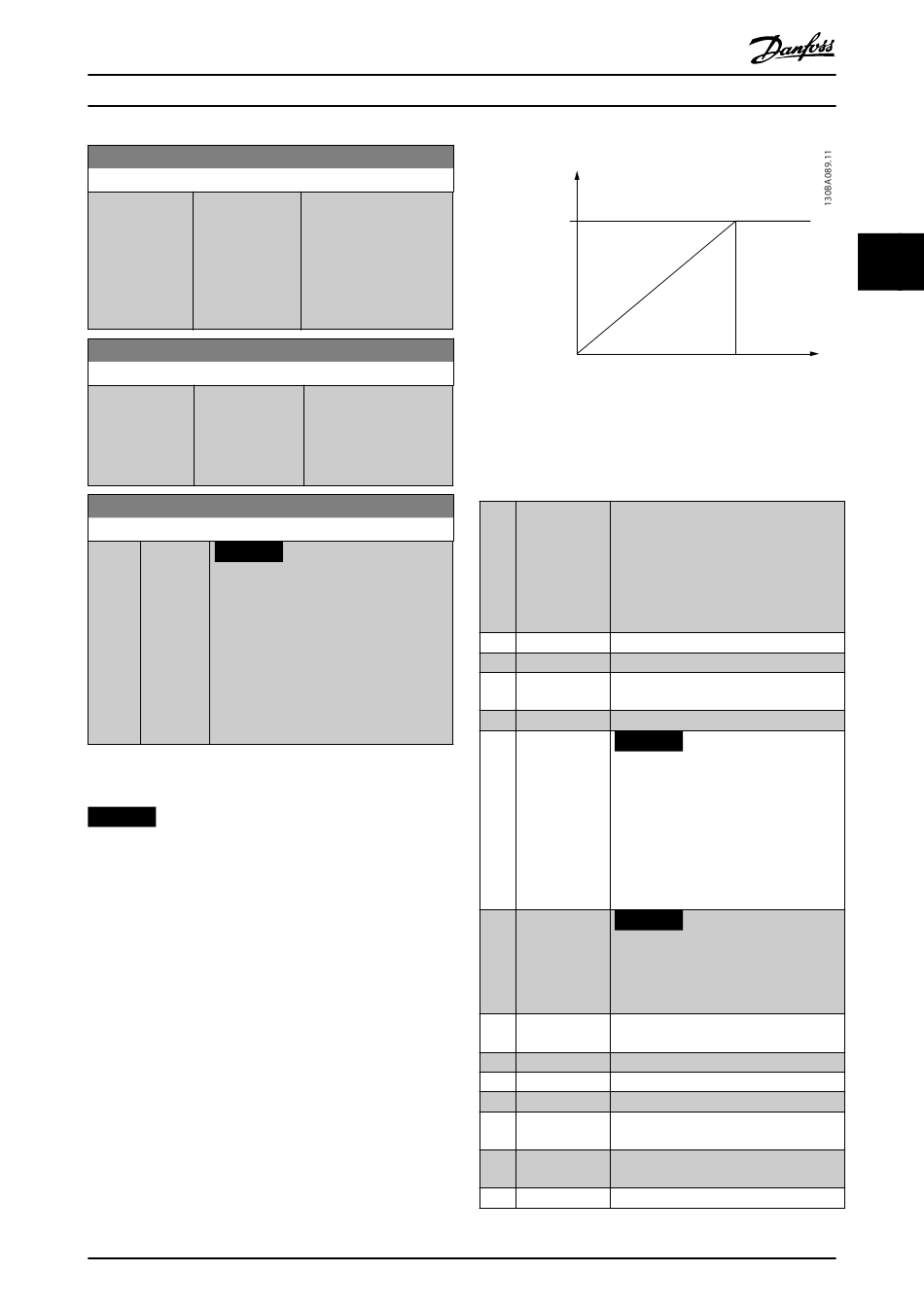

Illustration 3.40 Configuration of Pulse Outputs
Parameters for configuring the scaling
and output functions of pulse outputs.
The pulse outputs are designated to
terminals 27 or 29. Select terminal 27
output in parameter 5-01 Terminal 27
Mode and terminal 29 output in
parameter 5-02 Terminal 29 Mode.
[0] No operation
[45] Bus control
[48] Bus control
timeout
[51] MCO-controlled
NOTICE
[97] Reference After
Ramp
This option is available only with
software version 48.XX.
Actual speed reference after the ramp.
Use this output as master signal for
speed synchronization of follower
frequency converters. The reference is set
in parameter 16-48 Speed Ref. After Ramp
[RPM].
NOTICE
[99] Virtual Master
Speed
This option is available only with
software version 48.XX.
Virtual master signal for controlling the
speed or position of the followers.
[100] Output
frequency
[101] Reference
[102] Feedback
[103] Motor current
[104] Torque relative
to limit
[105] Torque relative
to rated
[106] Power
High freq. Output
P 5-62(term27) (Hz)
P 5-65(term29)
107
3 3
