Parameter Descriptions
0-21 Display Line 1.2 Small
Select a variable for display in line 1, middle position. The
options are the same as those listed for parameter 0-20 Display
Line 1.1 Small.
0-22 Display Line 1.3 Small
Select a variable for display in line 1, right position. The options
are the same as those listed for parameter 0-20 Display Line 1.1
Small.
0-23 Display Line 2 Large
Select a variable for display in line 2. The options are the same
as listed for parameter 0-20 Display Line 1.1 Small.
0-24 Display Line 3 Large
Select a variable for display in line 3.
0-25 My Personal Menu
Range: Function:
0 [0 - Define up to 50 parameters to appear in the Q1
N/A 9999 Personal Menu, accessible via the [Quick Menu]
N/A] key on the LCP. The parameters are shown in the
*
Q1 Personal Menu in the order they are
programmed into this array parameter. Delete
parameters by setting the value to 0000.
For example, this can be used to provide quick,
simple access to just 1 or up to 50 parameters,
which require changing on a regular basis (for
example, for plant maintenance reasons) or by an
OEM to enable simple commissioning of their
equipment.
3.1.3 0-3* LCP Custom Readout
It is possible to customize the display elements for various
purposes:
•
Custom readout. Value proportional to speed
(linear, squared, or cubed depending on unit
selected in parameter 0-30 Custom Readout Unit).
•
Display text. Text string stored in a parameter.
Custom readout
The calculated value to be shown is based on the settings
in:
•
Parameter 0-30 Custom Readout Unit.
•
Parameter 0-31 Custom Readout Min Value (linear
only).
•
Parameter 0-32 Custom Readout Max Value.
•
Parameter 4-13 Motor Speed High Limit [RPM].
•
Parameter 4-14 Motor Speed High Limit [Hz].
•
Actual speed.
MG33MO02
Programming Guide
Custom Readout (Value)
P 16-09
Custom Readout
Unit P 0-30
Max value
P 0-32
Min value
Linear
units only
P 0-31

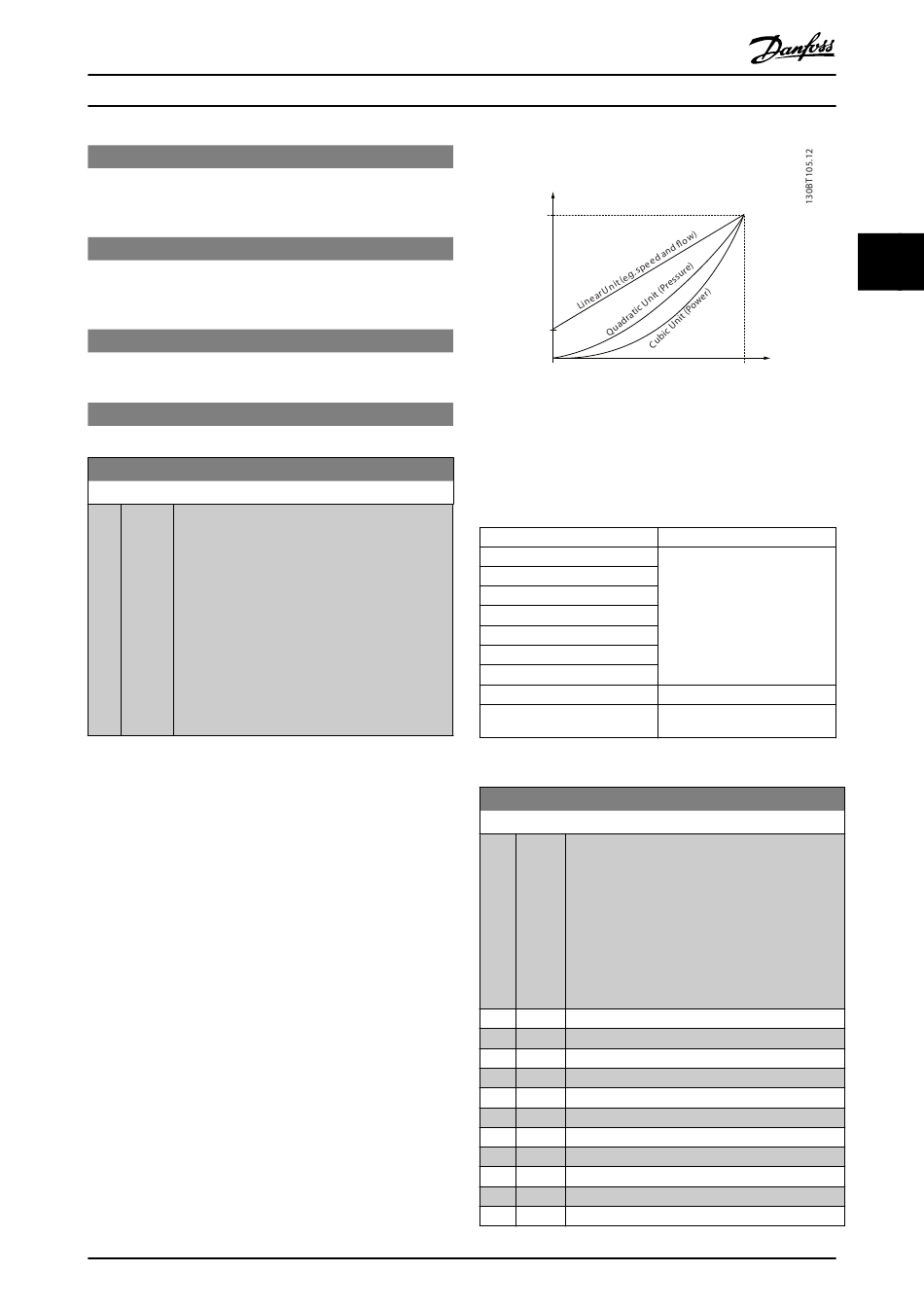

Illustration 3.4 Custom Readout
The relation depends on the type of unit selected in
parameter 0-30 Custom Readout Unit:
Unit type
Dimensionless
Speed
Flow, volume
Flow, mass
Velocity
Length
Temperature
Pressure
Power
Table 3.2 Speed Relations for Different Unit Types
0-30 Unit for User-defined Readout
Option:
[0] None
*
[1] %
[5] PPM
[10] 1/min
[11] rpm
[12] Pulse/s
[20] l/s
[21] l/min
[22] l/h
[23] m³/s
[24] m³/min
Danfoss A/S © 01/2018 All rights reserved.
0 Motor Speed
High limit
P 4-13 (RPM)
P 4-14 (Hz)
Speed relation
Linear
Quadratic
Cubic
Function:
It is possible to program a value to be shown in
the display of the LCP. The value has a linear,
squared, or cubed relation to speed. This relation
depends on the unit selected (see Table 3.2). The
actual calculated value can be read in
parameter 16-09 Custom Readout, and/or shown in
the display by selecting [16-09] Custom Readout in
parameter 0-20 Display Line 1.1 Small to
parameter 0-24 Display Line 3 Large.
3 3
Motor Speed
