Parameter Descriptions
5-66 Terminal X30/6 Pulse Output Variable
Select the variable for readout on terminal X30/6.
This parameter is active when VLT
is installed in the frequency converter.
Same options and functions as parameter group 5-6* Pulse
Outputs.
Option: Function:
NOTICE
[97] Reference After
Ramp
This option is available only
with software version 48.XX.
Actual speed reference after the
ramp. Use this output as master
signal for speed synchronization of
follower frequency converters. The
reference is set in
parameter 16-48 Speed Ref. After
Ramp [RPM].
NOTICE
[99] Virtual Master Speed
This option is available only
with software version 48.XX.
Virtual master signal for controlling
the speed or position of the
followers.
[100] Output frequency
[101] Reference
[102] Feedback
[103] Motor Current
[104] Torque rel to limit
[105] Torq relate to rated
[106] Power
[107] Speed
[108] Torque
[109] Max Out Freq
[119] Torque % lim
5-68 Pulse Output Max Freq #X30/6
Range: Function:
NOTICE
5000. [0 -
Hz 32000 Hz]
*
This parameter cannot be adjusted
while the motor is running.
Select the maximum frequency on terminal
X30/6 referring to the output variable in
parameter 5-66 Terminal X30/6 Pulse Output
Variable.
This parameter is active when VLT
Purpose I/O MCB 101 is installed in the
frequency converter.
MG33MO02
Programming Guide
®
General Purpose I/O MCB 101
®
General
Danfoss A/S © 01/2018 All rights reserved.
3.6.7 5-7* 24 V Encoder Input
Connect the 24 V encoder to terminal 12 (24 V DC supply),
terminal 32 (channel A), terminal 33 (channel B), and
terminal 20 (GND). The digital inputs 32/33 are active for
encoder inputs when [1] 24 V encoder is selected in
parameter 1-02 Flux Motor Feedback Source and
parameter 7-00 Speed PID Feedback Source. The encoder
used is a dual-channel (A and B) 24 V type. Maximum
input frequency: 110 kHz.
Encoder connection to the frequency converter
24 V incremental encoder. Maximum cable length is 5 m
(16.4 ft).
12 13 18 19 27 29
24 V or 10–30 V encoder

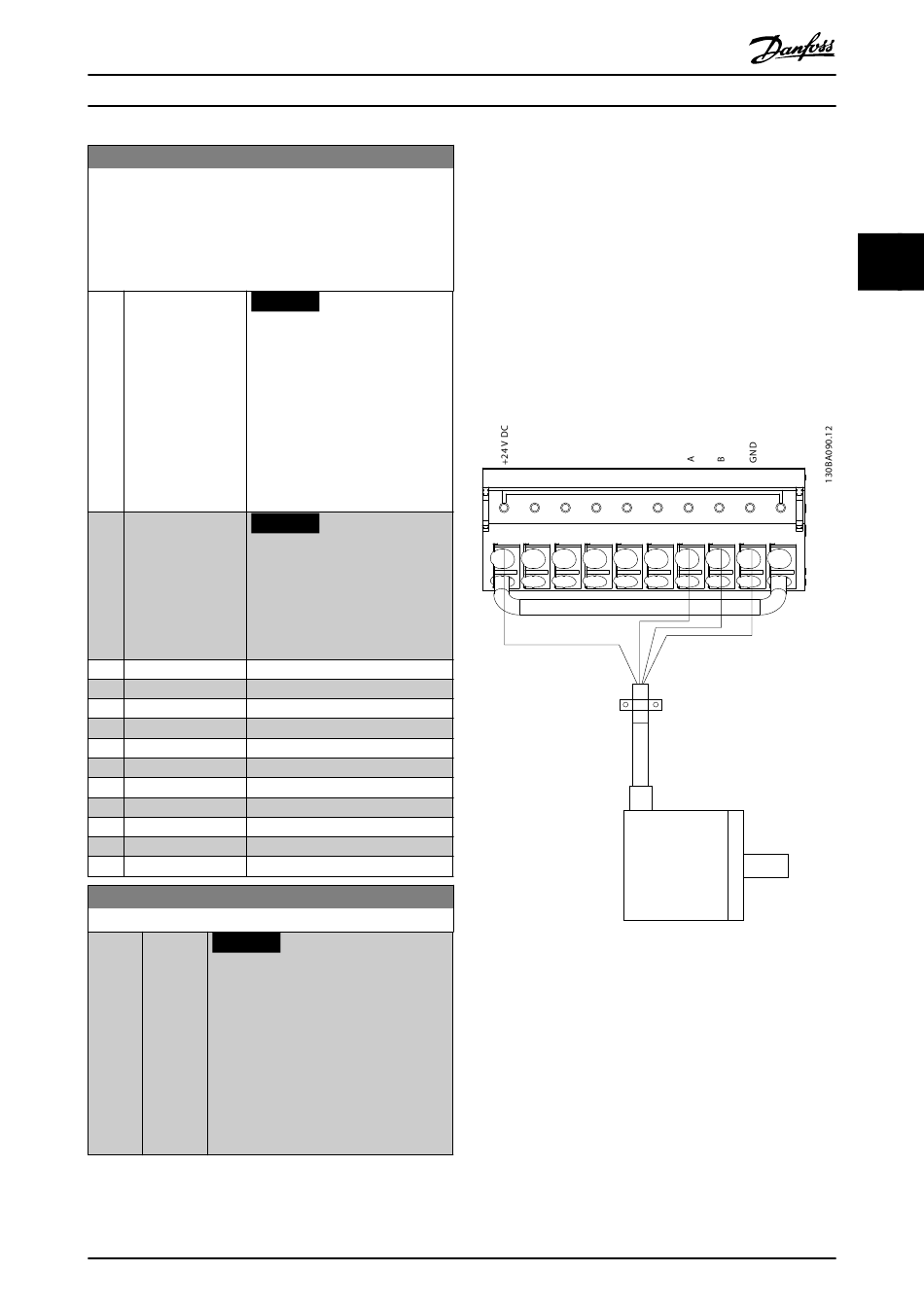

Illustration 3.41 Encoder Connection
32 33 20 37
