Parameter Descriptions
3.14.7 14-6* Auto Derate
This group contains parameters for derating the frequency
converter in case of high temperature.
14-60 Function at Over Temperature
3 3
Option:
[0] Trip
*
[1] Derate If the critical temperature is exceeded, the output
3.14.8 No Trip at Inverter Overload
In some systems, the frequency converter has not been
sized properly to yield the current needed in all points of
the operational flow-head characteristic. At these points,
the motor needs a current higher than the rated current of
the frequency converter. The frequency converter can yield
110% of the rated current continuously for 60 s. If still
overloaded, the frequency converter normally trips
(causing the motor to stop by coasting) and issues an
alarm.
Current
% of rated
110
105
100
95
Inverter
load
counter
100
98
90.7

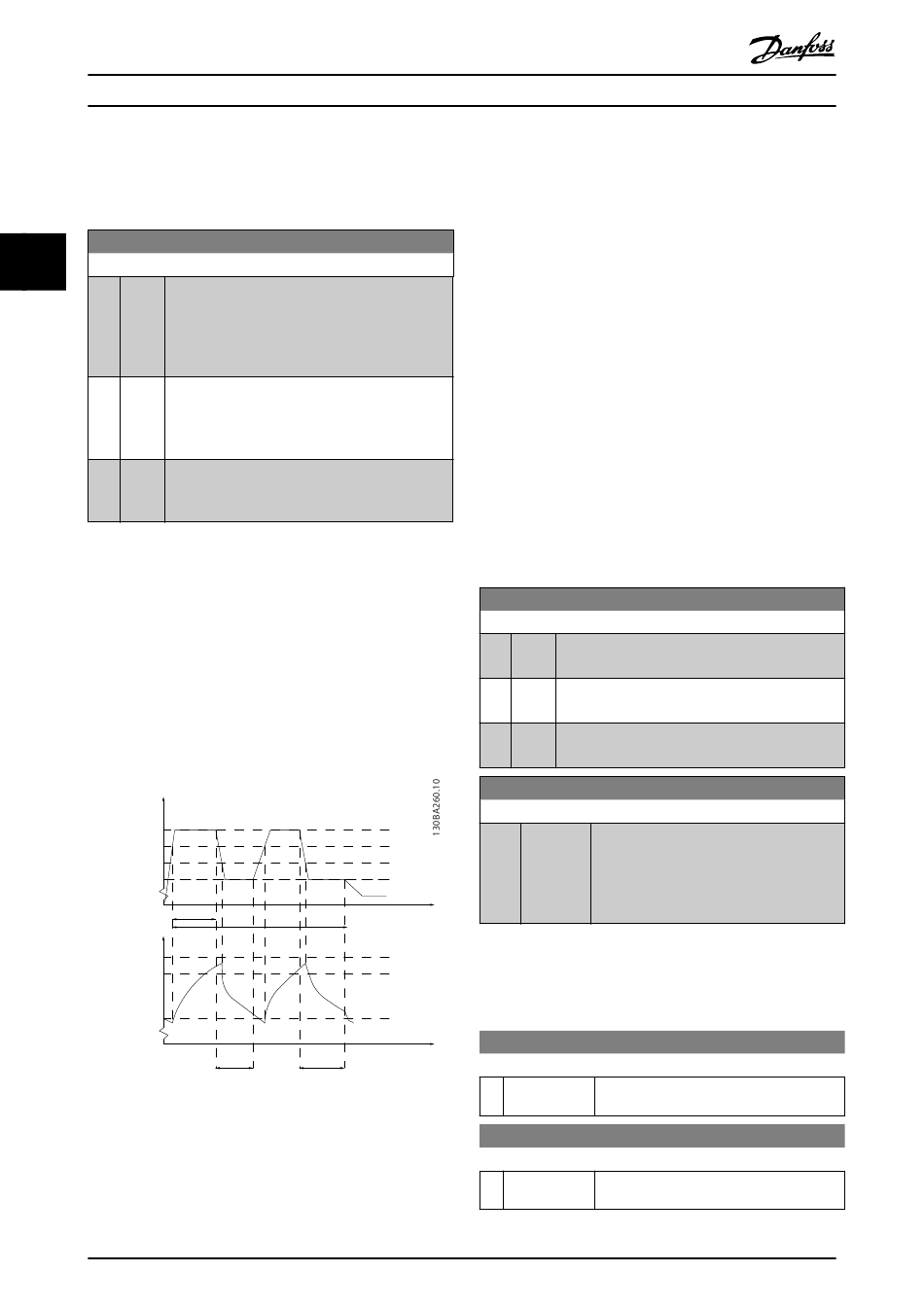

Illustration 3.64 Output Current in Overload Condition
If the motor is unable to run continuously with the
demanded capacity, run it at reduced speed for a while.
174
Function:
If either heat sink or control card temperature
exceeds a factory-programmed temperature limit, a
warning is activated. If the temperature increases
further, select whether the frequency converter
should trip (trip lock) or derate the output current.
The frequency converter trips (trip lock) and
generate an alarm. Cycle power to reset the alarm.
The motor restarts when the heat sink temperature
has dropped below the alarm limit.
current is reduced until the allowable temperature
has been reached.
~ ~
60s
Desired current>100%
Warning Warning
