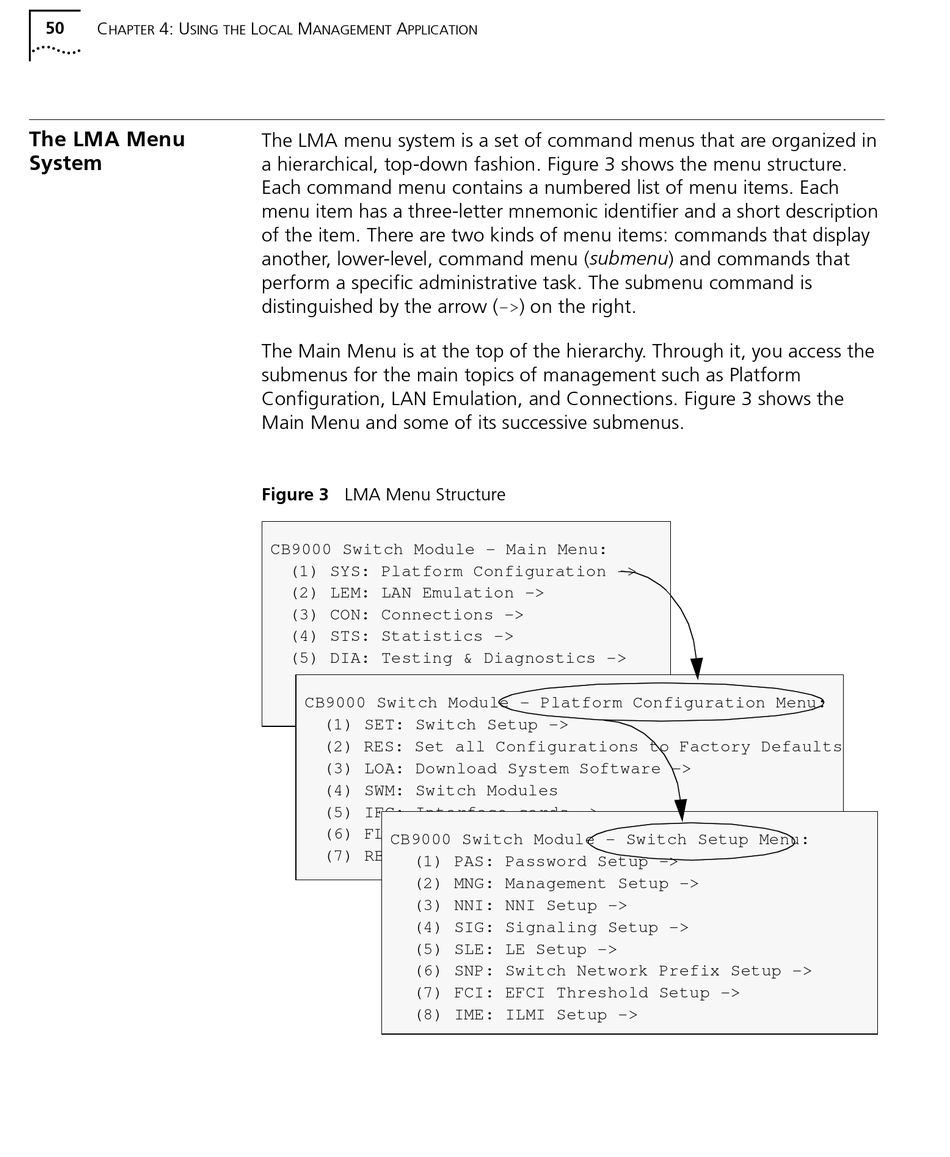

50
C 4: U
HAPTER SING THE
The LMA Menu
System
L M A
OCAL ANAGEMENT PPLICATION
The LMA menu system is a set of command menus that are organized in
a hierarchical, top-down fashion. Figure 3 shows the menu structure.
Each command menu contains a numbered list of menu items. Each
menu item has a three-letter mnemonic identifier and a short description
of the item. There are two kinds of menu items: commands that display
another, lower-level, command menu (submenu) and commands that
perform a specific administrative task. The submenu command is
distinguished by the arrow (
The Main Menu is at the top of the hierarchy. Through it, you access the
submenus for the main topics of management such as Platform
Configuration, LAN Emulation, and Connections. Figure 3 shows the
Main Menu and some of its successive submenus.
Figure 3 LMA Menu Structure
CB9000 Switch Module - Main Menu:
(1) SYS: Platform Configuration ->
(2) LEM: LAN Emulation ->
(3) CON: Connections ->
(4) STS: Statistics ->
(5) DIA: Testing & Diagnostics ->
(6) FTR: ATM features
) LOG: Logout
CB9000 Switch Module - Platform Configuration Menu: 7
(1) SET: Switch Setup ->
(2) RES: Set all Configurations to Factory Defaults
(3) LOA: Download System Software ->
(4) SWM: Switch Modules
(5) IFC: Interface cards ->
(6) FLS: Configuration Flash Status
CB9000 Switch Module - Switch Setup Menu:
(7) RBO: Reboot
(1) PAS: Password Setup ->
(2) MNG: Management Setup ->
(3) NNI: NNI Setup ->
(4) SIG: Signaling Setup ->
(5) SLE: LE Setup ->
(6) SNP: Switch Network Prefix Setup ->
(7) FCI: EFCI Threshold Setup ->
(8) IME: ILMI Setup ->
) on the right.
->
