A NNI is a private NNI (P-NNI) when the switches are not part of a WAN.
P-NNI allows you to interconnect multiple switches in an arbitrary
topology and still have them work as one network. See Figure 10.

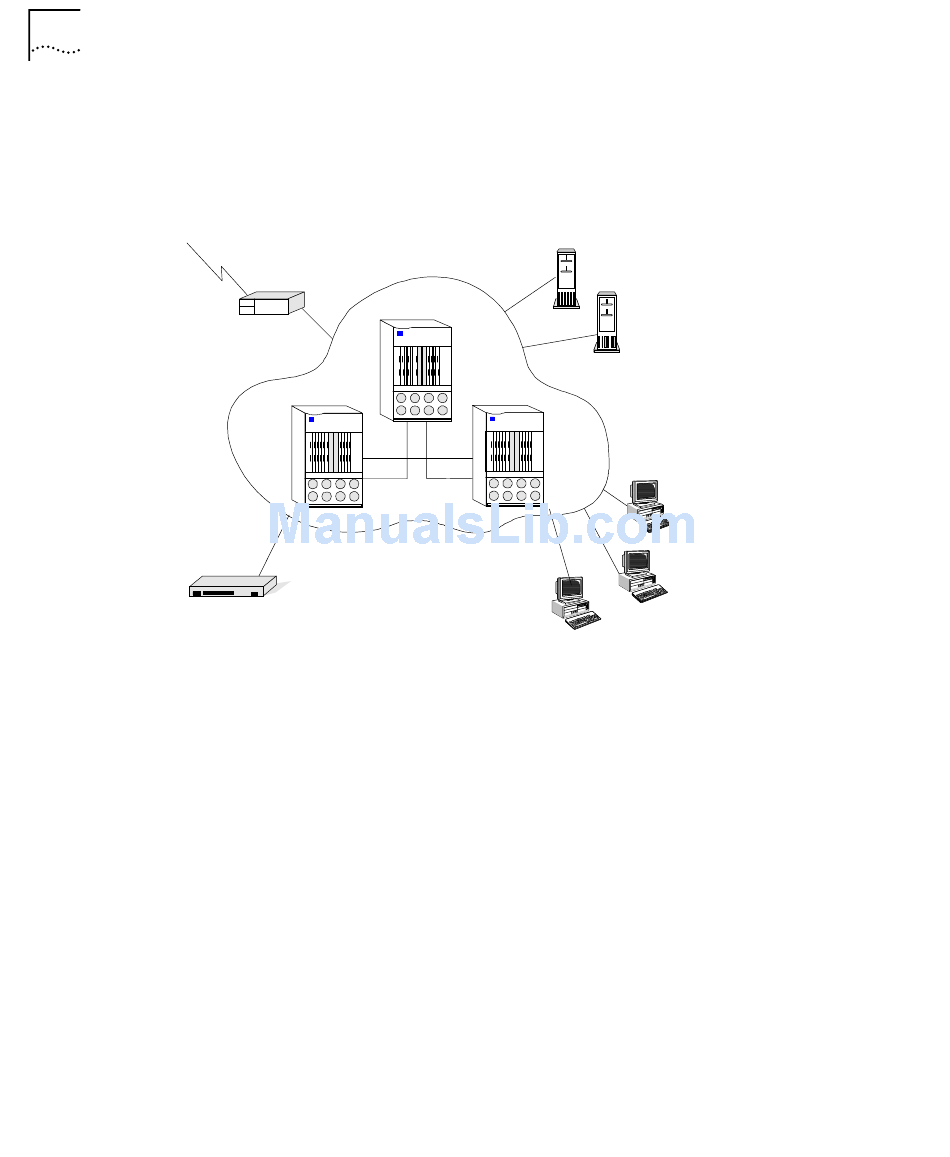

Figure 10 Multiple Switches in a Private Network
CoreBuilder 9000
Router
3Co m
CoreBuilder 9000 TM
Co r eB uild e r 9 00 0
3Co m
LS2700
For an ATM switch to work in an ATM network, the switch must have a
topology database and a routing engine. The topology database reflects
the network topology (the number of ATM switches, their addresses, and
their locations). The database may be static or dynamic. A static database
does not reflect on-line topology changes, whereas the dynamic database
automatically senses changes in the network topology. The ATM switch
determines the best path/route to a destination according to the topology
database, using the routing engine.
The CoreBuilder 9000 ATM Enterprise Switch implements the P-NNI in the
E-IISP NNI protocol. (For more information, see Chapter 12.)
