Operational and error diagnosis

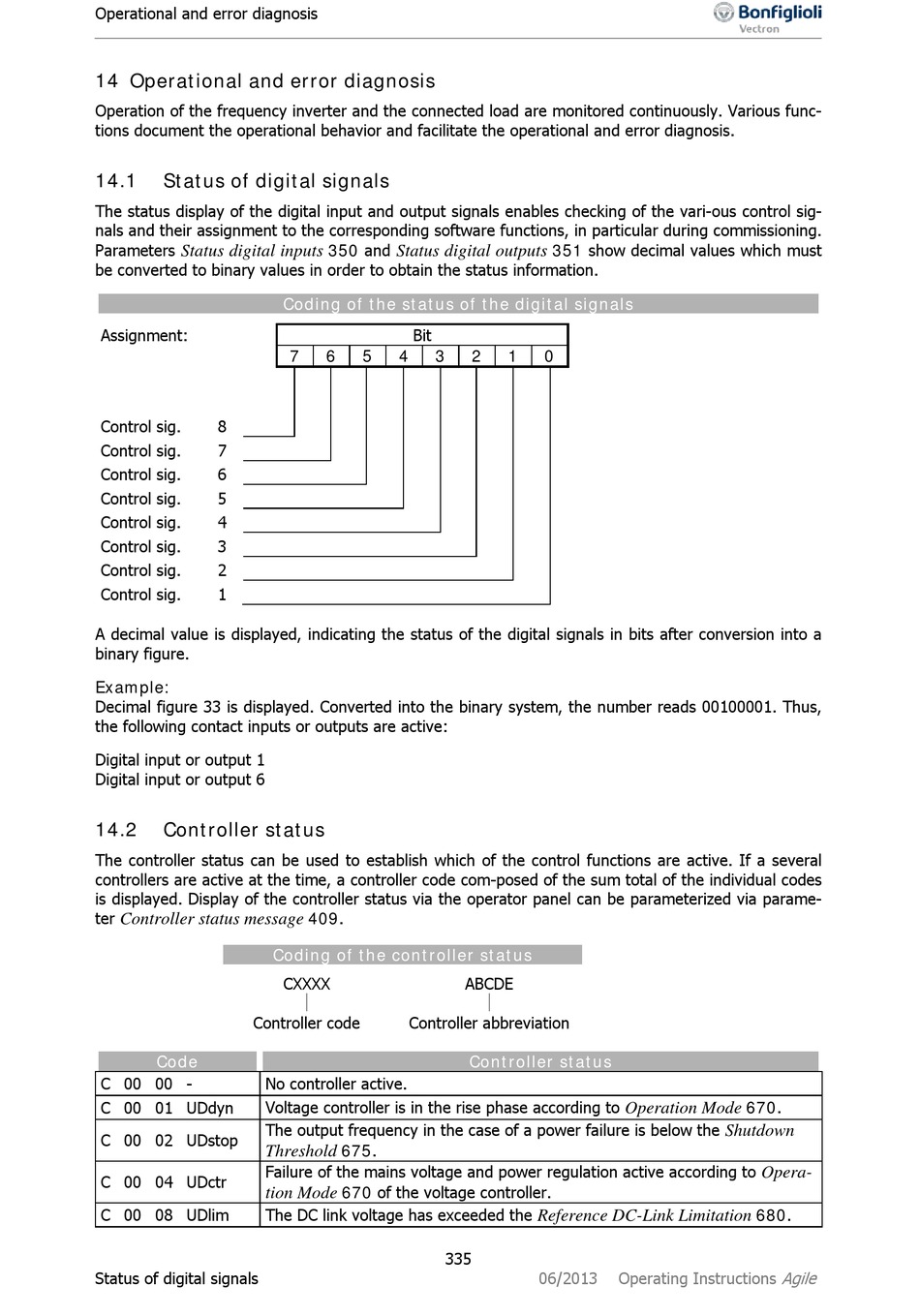

14 Operational and error diagnosis
Operation of the frequency inverter and the connected load are monitored continuously. Various func-
tions document the operational behavior and facilitate the operational and error diagnosis.
14.1

Status of digital signals

The status display of the digital input and output signals enables checking of the vari-ous control sig-
nals and their assignment to the corresponding software functions, in particular during commissioning.
Parameters
Status digital inputs
be converted to binary values in order to obtain the status information.
Assignment:
Control sig. 8
Control sig. 7
Control sig. 6
Control sig. 5
Control sig. 4
Control sig. 3
Control sig. 2
Control sig. 1
A decimal value is displayed, indicating the status of the digital signals in bits after conversion into a
binary figure.
Example:
Decimal figure 33 is displayed. Converted into the binary system, the number reads 00100001. Thus,
the following contact inputs or outputs are active:
Digital input or output 1
Digital input or output 6
14.2

Controller status

The controller status can be used to establish which of the control functions are active. If a several
controllers are active at the time, a controller code com-posed of the sum total of the individual codes
is displayed. Display of the controller status via the operator panel can be parameterized via parame-
ter
Controller status message
Controller code
Code
C 00 00 - No controller active.
C 00 01 UDdyn Voltage controller is in the rise phase according to
The output frequency in the case of a power failure is below the
C 00 02 UDstop
Threshold
Failure of the mains voltage and power regulation active according to
C 00 04 UDctr
tion Mode
C 00 08 UDlim The DC link voltage has exceeded the
Status of digital signals
350 and
Status digital outputs
Coding of the status of the digital signals
Bit
7 6 5 4 3
409.
Coding of the controller status
CXXXX

Controller abbreviation
675.
670 of the voltage controller.
335
351 show decimal values which must
2 1 0
ABCDE

Controller status
Operation Mode
Reference DC-Link Limitation
06/2013 Operating Instructions
670.
Shutdown
Opera-
680.
