BONFIGLIOLI Agile Operating Instructions Manual page 81

Commissioning

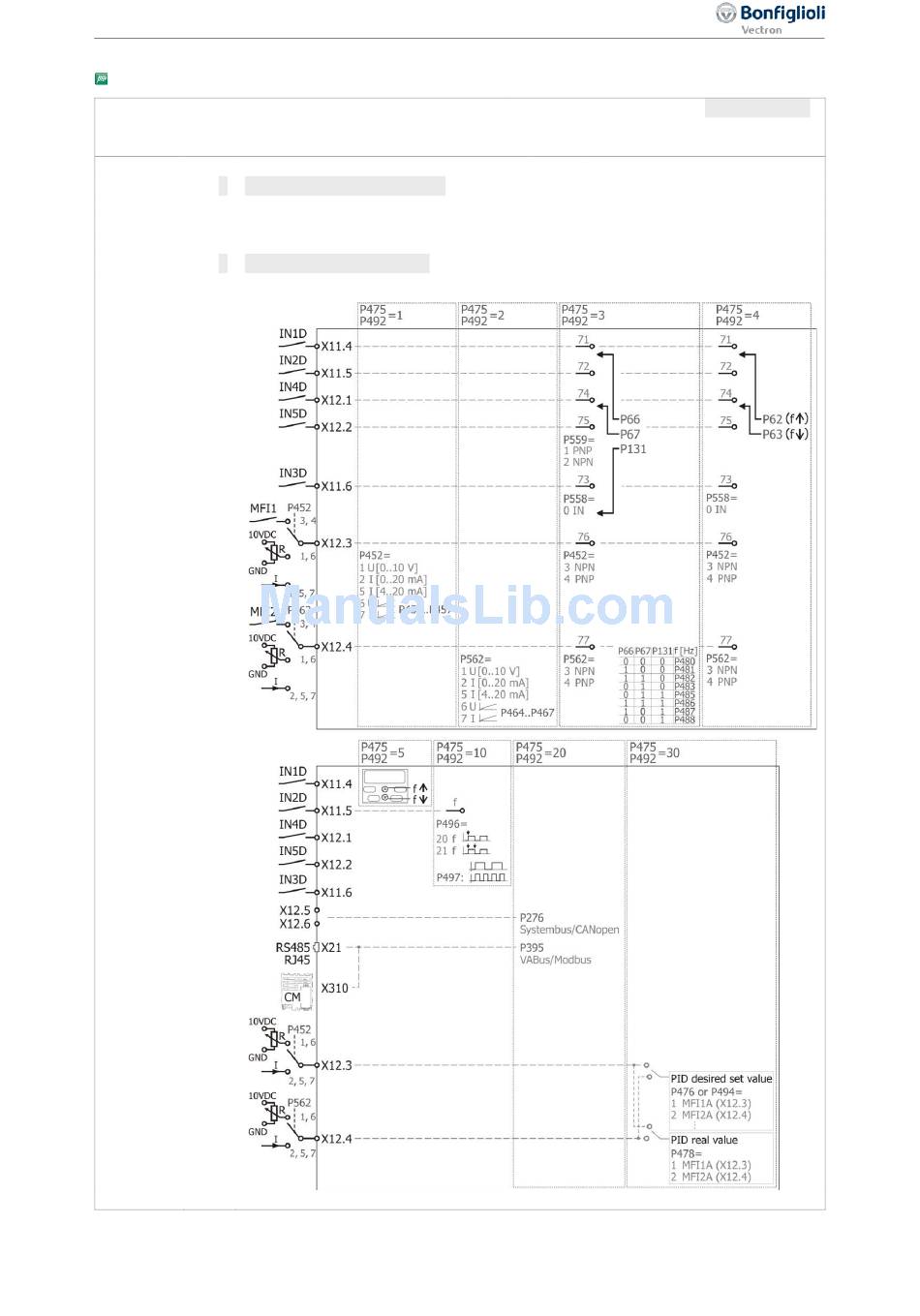

Selection of reference frequency
P475 Reference Frequency Source 1.
P492 Reference frequency source 2.
Additional reference value, only for combination of two reference sources.
0 Zero
1 Analog Value MFI1A (P475)
2 Analog Value MFI2A
3 Fixed Frequency
4 Motorpot. via Digital Inputs
5 Keypad-Motorpot. (P492)
10 Repetition Frequency
After first commissioning
20
30
40
2501
2502
Not all possible reference frequency sources are shown.
81
06/2013
(Factory setting)
Fieldbus Reference Value
Technology Controller
Electronic gear
PLC-Output Frequency 1
PLC-Output Frequency 2
Operating Instructions
Agile
