Minimize cable lengths.
Minimum Torque to tighten the screws: 0.5 Nm (4.6 lb-in)
Maximum Torque to tighten the screws: 0,6 Nm (5,3 lb-in)
NOTE
BONFIGLIOLI provides suitable brake resistors. Refer to chapter 12.3 "Brake resistor".
For calculation of brake resistance refer to chapter 7.10.4.1 "Dimensioning of brake
resistor".
NOTE
DC-connection requires a power estimation of the complete system. The brake resistor
is operational dependent on the enable of the frequency inverter. The contactor K1
must disconnect all plant components from the mains.

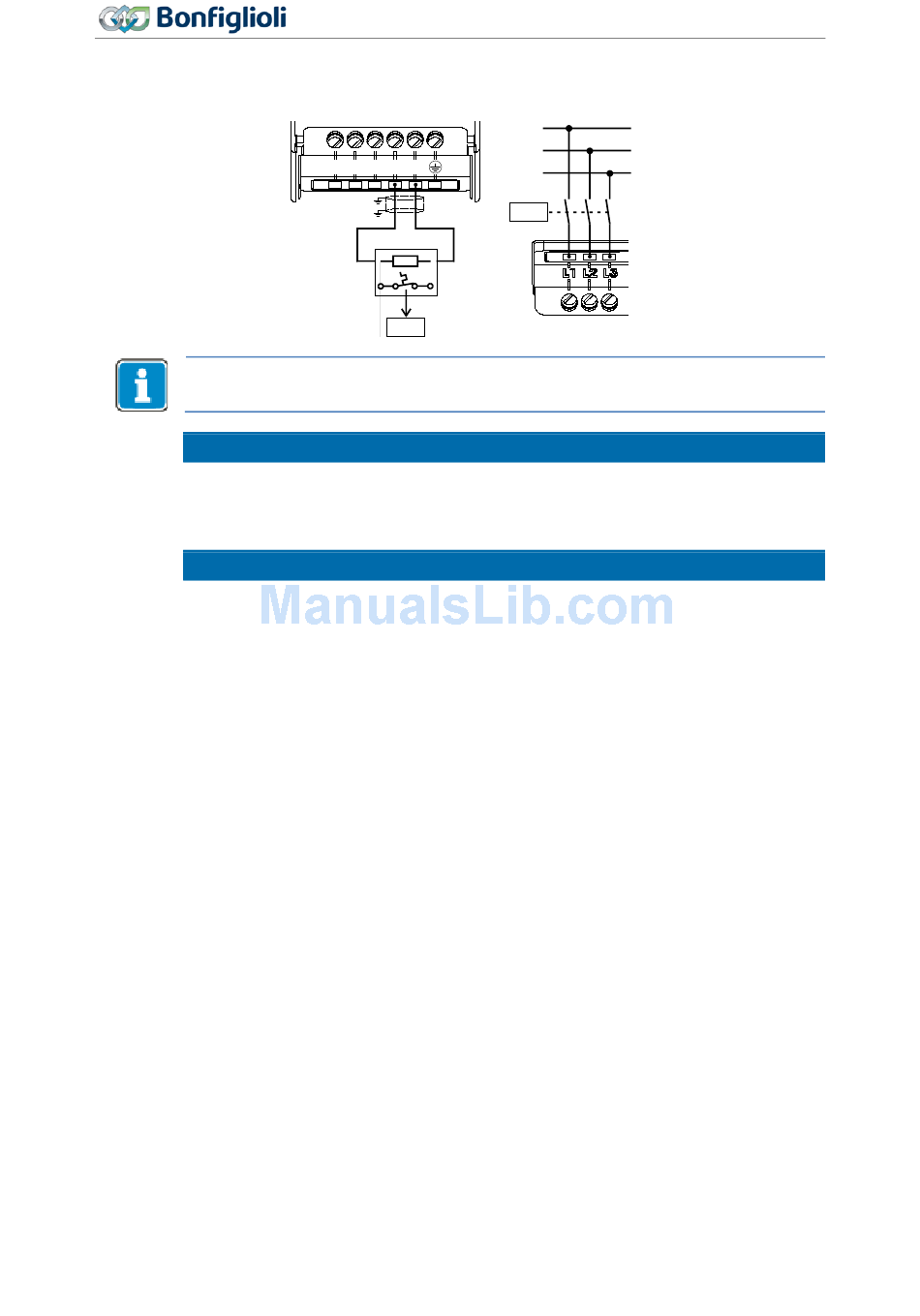

Agile
Operating Instructions
X2
U V W
Rb1 Rb2
K1
42
06/2013
Electrical Installation
L1
L2
L3
K1
Motor Connection
