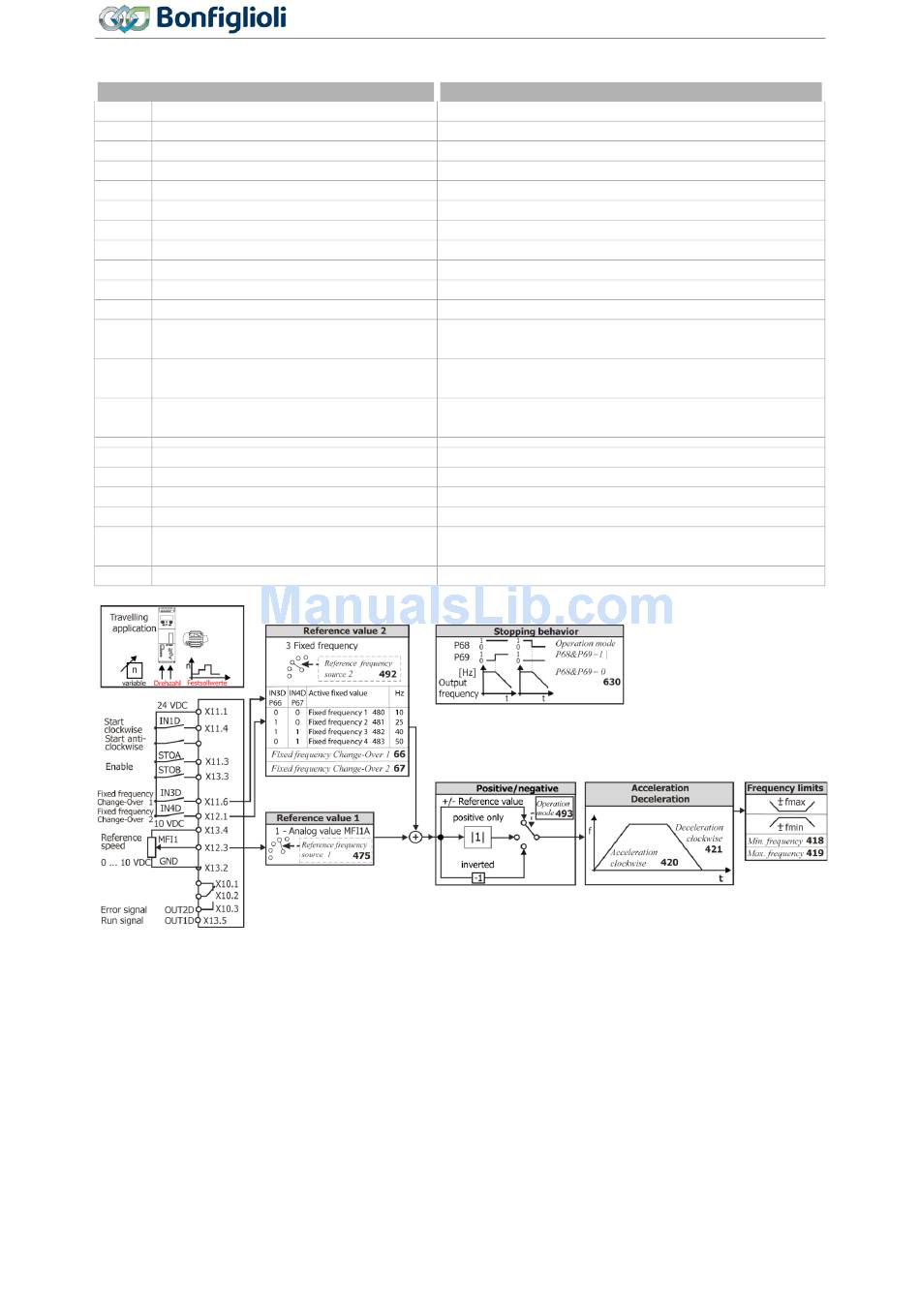

Travel applications

Parameters
30 Configuration
418 Minimum frequency
419 Maximum frequency
420 Acceleration (clockwise)
421 Deceleration (clockwise)
475 Reference frequency source 1
480 Fixed frequency 1
481 Fixed frequency 2
482 Fixed frequency 3
483 Fixed frequency 4
492 Reference frequency source 2
Operation mode (reference frequency
493
source)
Operation mode terminal X11.6 (digi-
558
tal input/output)
Operation mode (P68&P69=1
630
|P68&P69=0) (stopping behavior)
68 Start Clockwise
69 Start Anticlockwise
66 Fixed frequency Change-Over 1
67 Fixed frequency Change-Over 2
Operation mode OUT1D (X13.5) (digi-
531
tal output)
532 Operation mode OUT2D (X10/relay)
Agile
Operating Instructions
110 IM: sensorless control (V/f characteristic)
10 Hz
50 Hz
15 Hz/s
15 Hz/s
1 - Analog Value MFI1A
10 Hz
25 Hz
40 Hz
50 Hz
3 - Fixed frequency
1 - (+/- reference)
0 - Input IN3D
11 - (Stop, Off | Stop, Off)
71 - IN1D
7 - Off
73 - IN3D
74 - IN4D
2 - Run signal
103 - Inv. error signal
106
