• Check the Actual value
• Change the
Cross-Coupling Factor
NOTE
Too high values set as
offs. Change the value in small steps (max. 5 % per step).
6.3

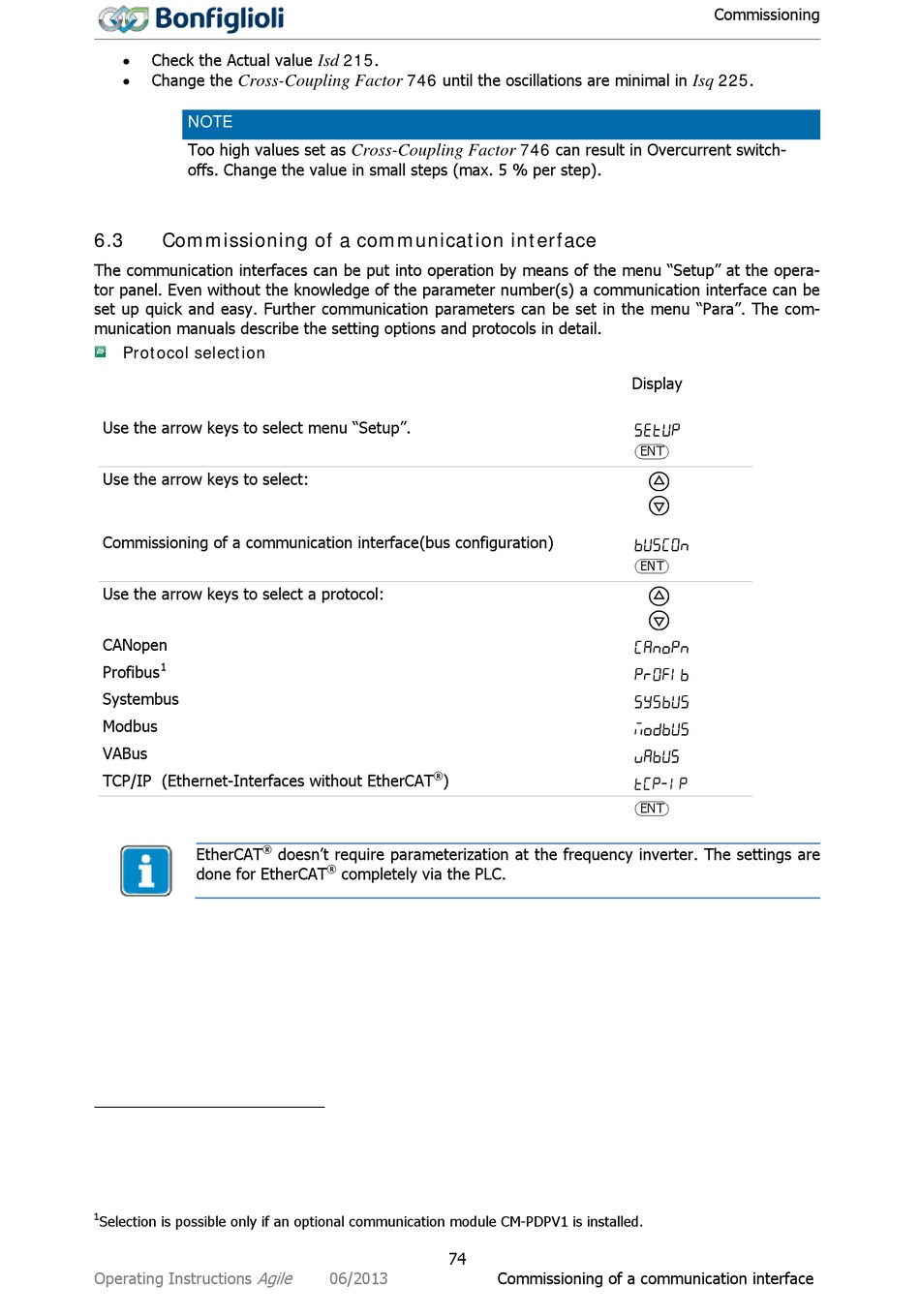

Commissioning of a communication interface

The communication interfaces can be put into operation by means of the menu "Setup" at the opera-
tor panel. Even without the knowledge of the parameter number(s) a communication interface can be
set up quick and easy. Further communication parameters can be set in the menu "Para". The com-
munication manuals describe the setting options and protocols in detail.
Protocol selection
Use the arrow keys to select menu "Setup".
Use the arrow keys to select:
Commissioning of a communication interface(bus configuration)
Use the arrow keys to select a protocol:
CANopen
1
Profibus
Systembus
Modbus
VABus
TCP/IP (Ethernet-Interfaces without EtherCAT
®
EtherCAT
done for EtherCAT
1
Selection is possible only if an optional communication module CM-PDPV1 is installed.
Agile
Operating Instructions
215.
Isd
746 until the oscillations are minimal in
Cross-Coupling Factor
®
)
doesn't require parameterization at the frequency inverter. The settings are
®
completely via the PLC.
74
06/2013
746 can result in Overcurrent switch-
Display

ENT

ENT





ENT
Commissioning of a communication interface
Commissioning
225.
Isq
