5.7.1

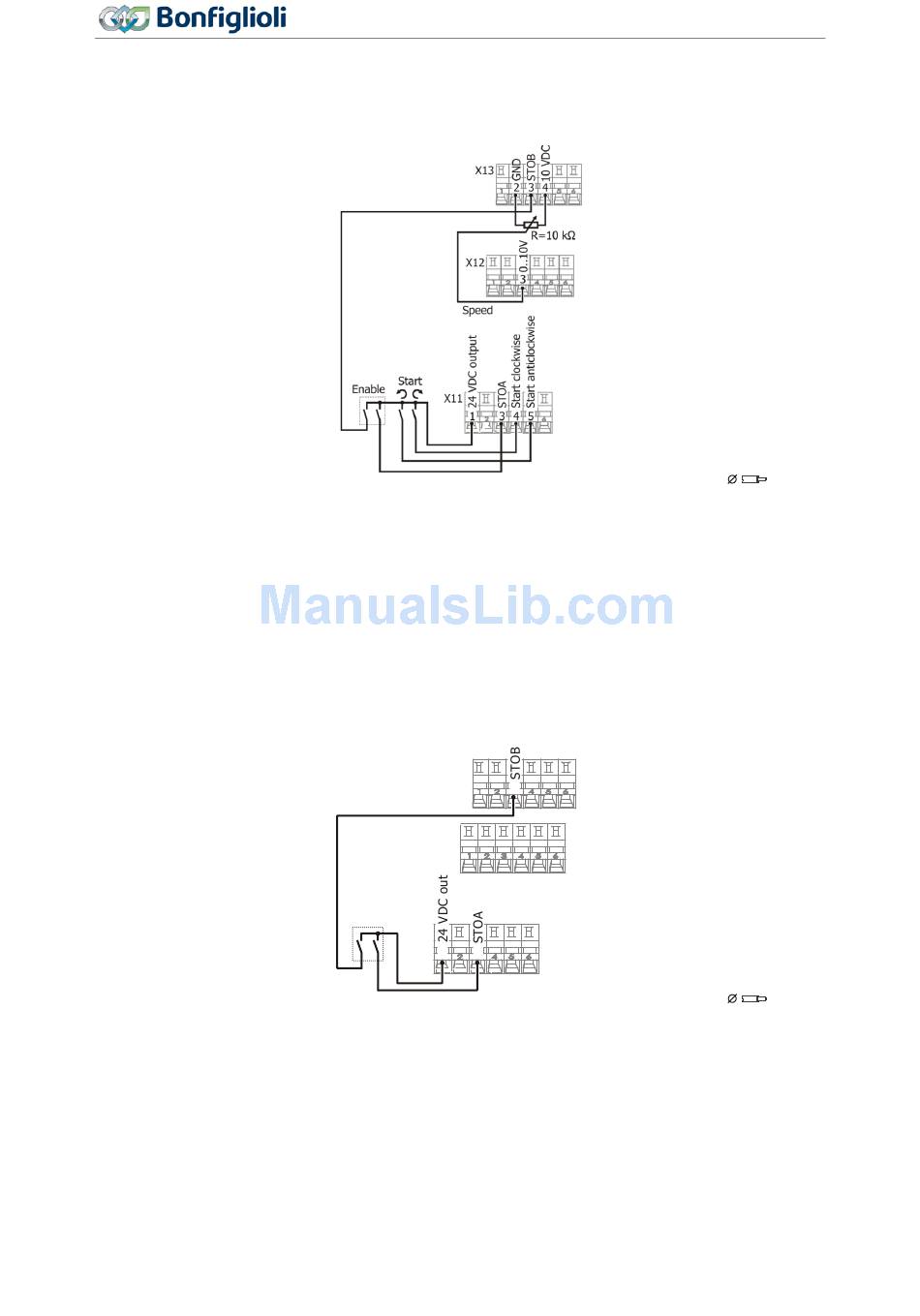

Circuit for control via control terminals

The motor is started via start signals on the control terminals. The circuit shows the input signals re-
quired as a minimum and the control terminals in factory settings.
Start cw: Start clockwise operation
Start ccw: Start anticlockwise operation
VDC out: Voltage output
n: Speed
E: Enable
5.7.2

Circuit for control via operator panel

The motor is started via the operator panel. The circuit shows the input signals required as a mini-
mum and the control terminals in factory settings.
VDC out: Voltage output
E: Enable
Agile
Operating Instructions
X13
X12
E
X11
1 3
46
06/2013
Electrical Installation
3
Control terminals Standard connection
1.5 mm 2
max. 2.5 mm 2
1.5 mm 2
max. 2.5 mm 2
