Commissioning
Repetition frequency input
A frequency signal at input IN2D (X11.5) can be used as reference value.
P496 20 RF (Repetition frequency) single evaluation:
21 RF (Repetition frequency) double evaluation:
P497 (Divider); for scaling
P475 or P492:
The Speed Control is always limited by the Minimum Frequency (P418) and Maximum
Frequency (P419).

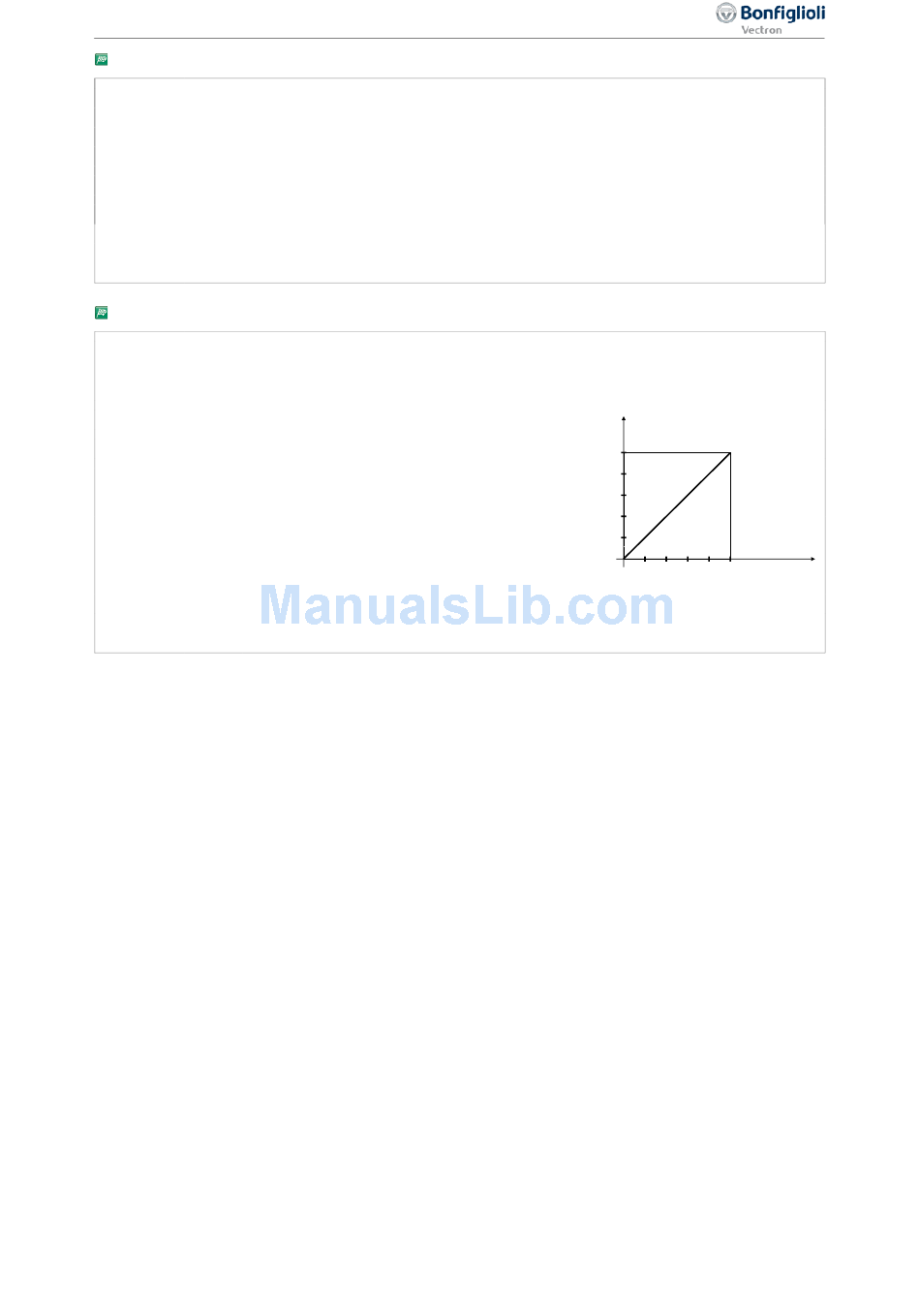

Pulse train input
A pulse train signal at input IN2D (X11.5) can be used for specification of the reference
value. The frequency of the pulse train signal on the input can be modified via a scal-
ing factor.
P496 30 Pulse train
P654 (scaling frequency)
P475 or P492:
P476 or P494:
The Speed Control is always limited by the Minimum Frequency (P418) and Maximum
Frequency (P419).
After first commissioning
10 Repetition Frequency Input
f
10 Repetition
frequency
10 Repetition
percentage
87
06/2013
Evaluation
One signal edge
Both signal edges
Factory setting
[Hz]
Reference
(P419)
50
25000
(P654)
Operating Instructions
P654=25000
f [Hz]
IN2D
Agile
