5.7.4

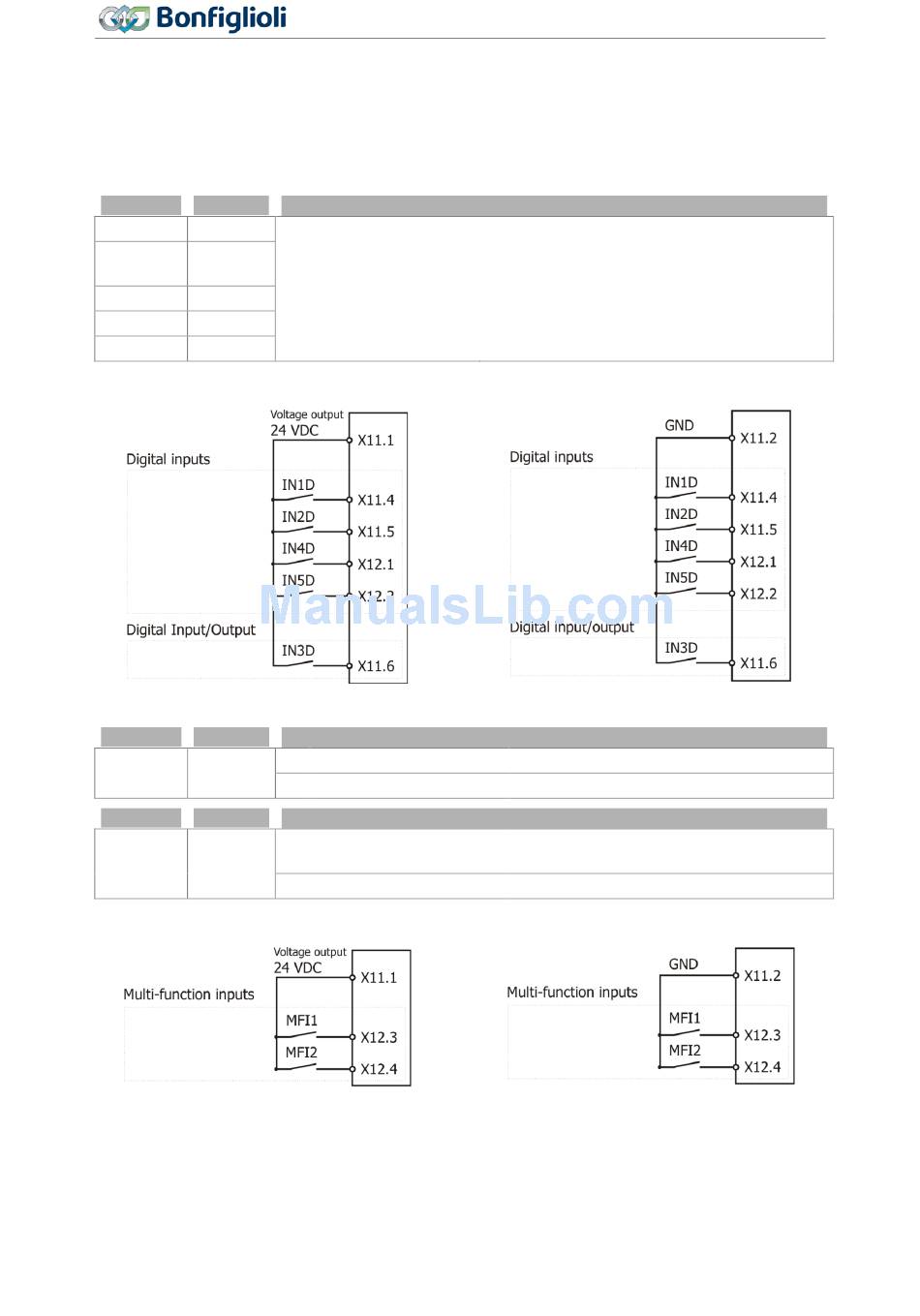

Evaluation logic of digital inputs

The evaluation logic of the digital inputs and multifunction inputs - in digital operation mode - can be
changed over via parameter settings.
Select "0 - NPN (active: 0 V)" or "1 - PNP (active: 24 V)" for parameter
•
559.
PNP/NPN
Digital inputs
Terminal Input
X11.4 IN1D
X11.5 IN2D
X11.6 IN3D
X12.1 IN4D
X12.2 IN5D
PNP
Multifunction inputs
Terminal Input
X12.3 MFI1
Terminal Input
X12.4 MFI2
PNP
Agile
Operating Instructions
Digital inputs PNP/NPN
0 - NPN (active: 0 V)
1 - PNP (active: 24 V)
Operation Mode MFI1
3 digital NPN (active: 0 V)
4 digital PNP (active: 24 V)
Operation Mode MFI2
3 digital NPN (active: 0 V)
4 digital PNP (active: 24 V)
48
06/2013
Digital inputs
559
Low-switching (with negative signal).
High-switching (with positive signal). Factory
setting.
NPN
452
Low-switching (with negative signal).
High-switching (with positive signal).
562
Low-switching (with negative sig-
nal).Factory setting.
High-switching (with positive signal).
NPN
Control terminals Standard connection
Electrical Installation
