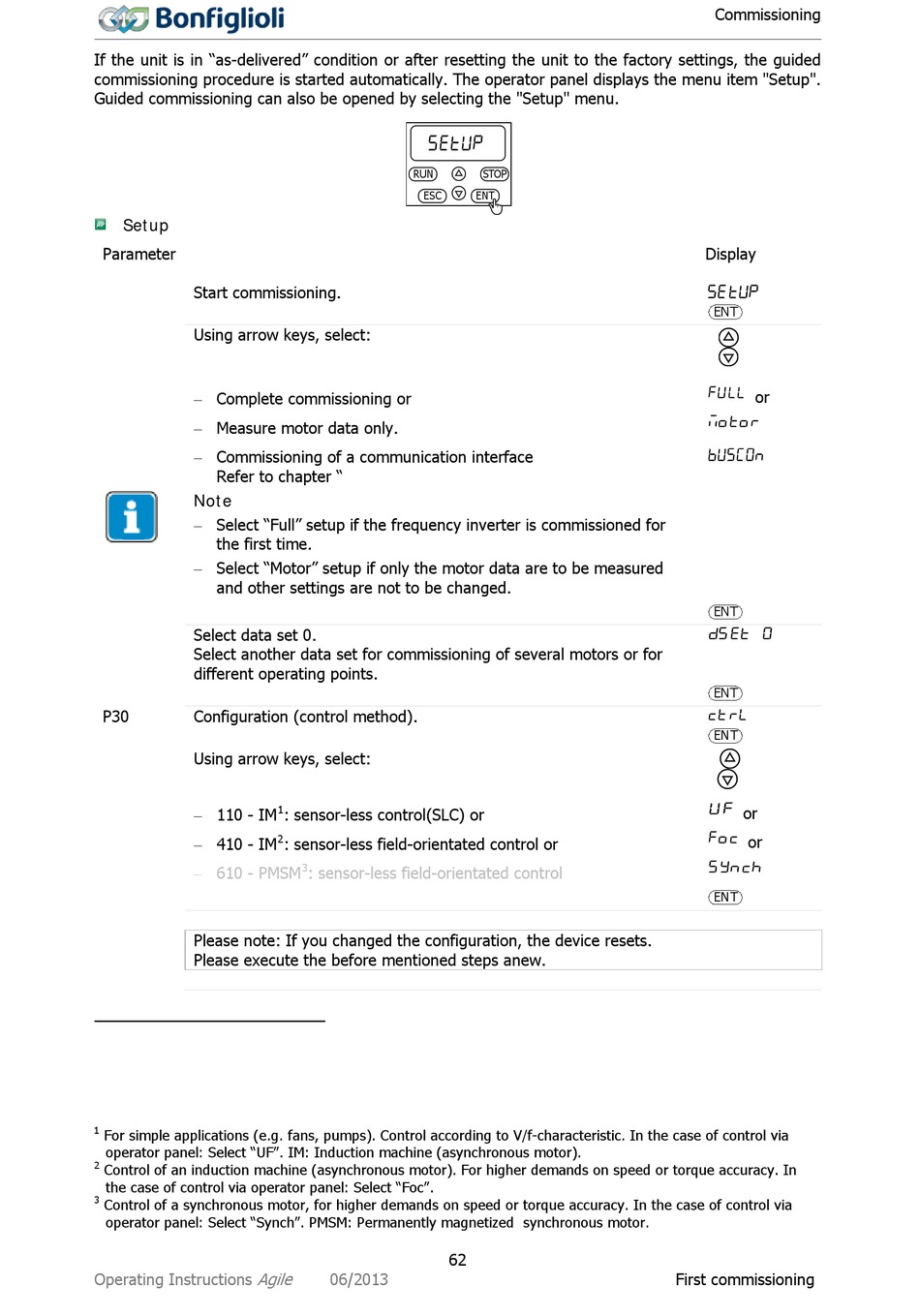

BONFIGLIOLI Agile Operating Instructions Manual page 62

If the unit is in "as-delivered" condition or after resetting the unit to the factory settings, the guided
commissioning procedure is started automatically. The operator panel displays the menu item "Setup".
Guided commissioning can also be opened by selecting the "Setup" menu.
Setup
Parameter
Start commissioning.
Using arrow keys, select:
− Complete commissioning or
− Measure motor data only.
− Commissioning of a communication interface
Refer to chapter "
Note
− Select "Full" setup if the frequency inverter is commissioned for
the first time.
− Select "Motor" setup if only the motor data are to be measured
and other settings are not to be changed.
Select data set 0.
Select another data set for commissioning of several motors or for
different operating points.
P30 Configuration (control method).
Using arrow keys, select:
− 110 - IM
− 410 - IM
− 610 - PMSM
Please note: If you changed the configuration, the device resets.
Please execute the before mentioned steps anew.
1
For simple applications (e.g. fans, pumps). Control according to V/f-characteristic. In the case of control via
operator panel: Select "UF". IM: Induction machine (asynchronous motor).
2
Control of an induction machine (asynchronous motor). For higher demands on speed or torque accuracy. In
the case of control via operator panel: Select "Foc".
3
Control of a synchronous motor, for higher demands on speed or torque accuracy. In the case of control via
operator panel: Select "Synch". PMSM: Permanently magnetized synchronous motor.
Agile
Operating Instructions

RUN
ESC
1
: sensor-less control(SLC) or
2
: sensor-less field-orientated control or
3
: sensor-less field-orientated control
62
06/2013
STOP
ENT
Commissioning
Display

ENT
 or


ENT
 
ENT

ENT
 or
 or

ENT
First commissioning
