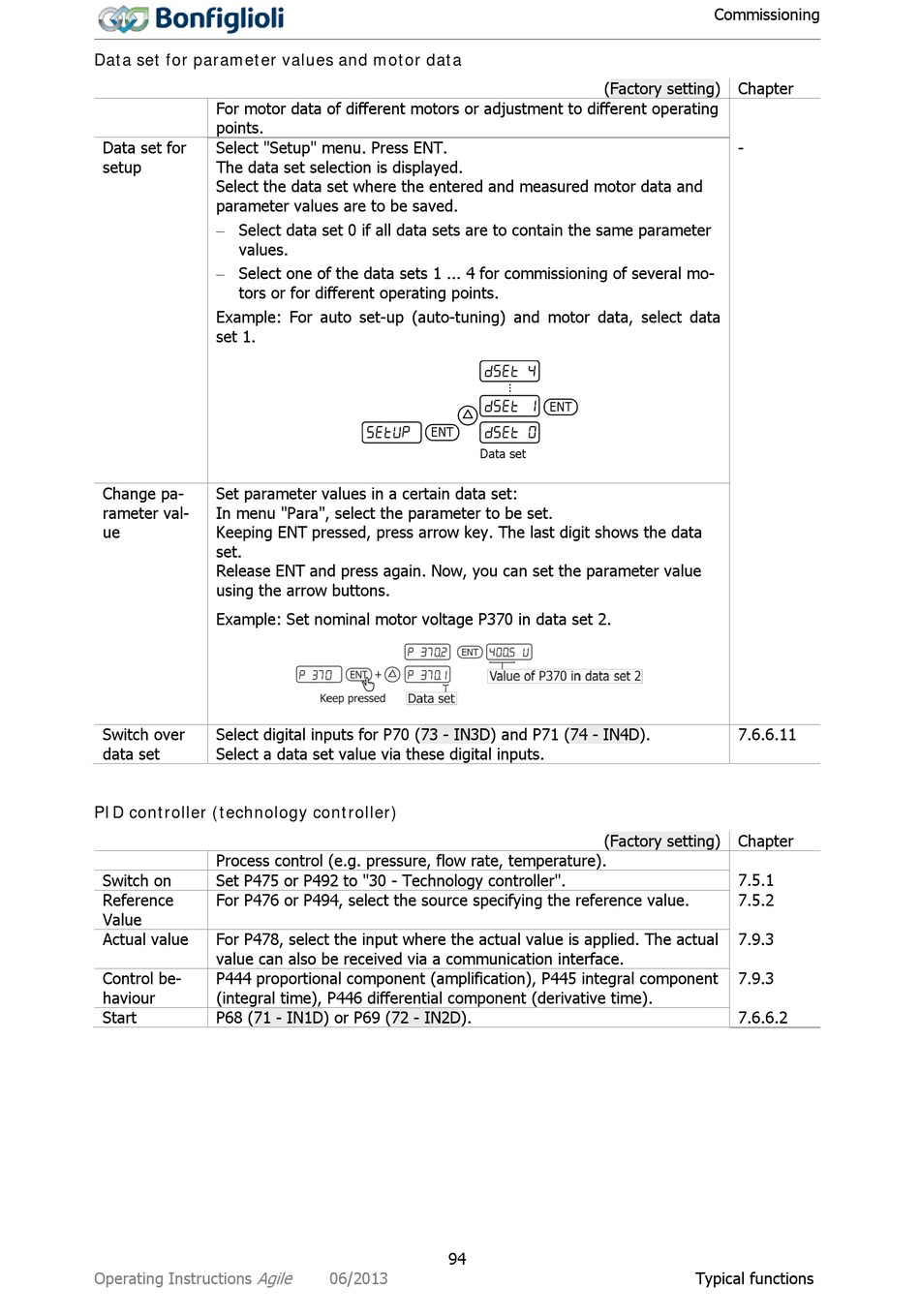

BONFIGLIOLI Agile Operating Instructions Manual page 94

Data set for parameter values and motor data
For motor data of different motors or adjustment to different operating
points.
Data set for Select "Setup" menu. Press ENT.
setup The data set selection is displayed.
Select the data set where the entered and measured motor data and
parameter values are to be saved.
− Select data set 0 if all data sets are to contain the same parameter
values.
− Select one of the data sets 1 ... 4 for commissioning of several mo-
tors or for different operating points.
Example: For auto set-up (auto-tuning) and motor data, select data
set 1.
Change pa- Set parameter values in a certain data set:
rameter val- In menu "Para", select the parameter to be set.
ue Keeping ENT pressed, press arrow key. The last digit shows the data
set.
Release ENT and press again. Now, you can set the parameter value
using the arrow buttons.
Example: Set nominal motor voltage P370 in data set 2.
Switch over Select digital inputs for P70 (73 - IN3D) and P71 (74 - IN4D).
data set Select a data set value via these digital inputs.
PID controller (technology controller)
Process control (e.g. pressure, flow rate, temperature).
Switch on Set P475 or P492 to "30 - Technology controller".
Reference For P476 or P494, select the source specifying the reference value.
Value
Actual value For P478, select the input where the actual value is applied. The actual
value can also be received via a communication interface.
Control be- P444 proportional component (amplification), P445 integral component
haviour (integral time), P446 differential component (derivative time).
Start P68 (71 - IN1D) or P69 (72 - IN2D).
Agile
Operating Instructions
 
 
  
ENT
Data set
94
06/2013
(Factory setting)
. .
.
ENT
(Factory setting)
Commissioning
Chapter
-
7.6.6.11
Chapter
7.5.1
7.5.2
7.9.3
7.9.3
7.6.6.2
Typical functions
