Click the Apply button to accept the changes made.

Voice VLAN OUI Settings

This window is used to configure the user-defined voice traffic's OUI. The OUI is used to identify the voice traffic.
There are a number of pre-defined OUIs. The user can further define the user-defined OUIs if needed. The user-
defined OUI cannot be the same as the pre-defined OUI.
To view the following window, click L2 Features > VLAN > Voice VLAN > Voice VLAN OUI Settings, as shown
below:
The fields that can be configured are described below:
Parameter
OUI Address
Mask
Description
Click the Apply button to accept the changes made.
Click the Delete All button to remove all the user-defined entries listed.
Click the Edit button to re-configure the specific entry.
Click the Delete button to remove the specific entry.

Voice VLAN Device

This window is used to show voice devices that are connected to the ports. The start time is the time when the
device is detected on this port, the activate time is the latest time saw the device sending the traffic.
To view the following window, click L2 Features > VLAN > Voice VLAN > Voice VLAN Device, as shown below:
The fields that can be configured are described below:

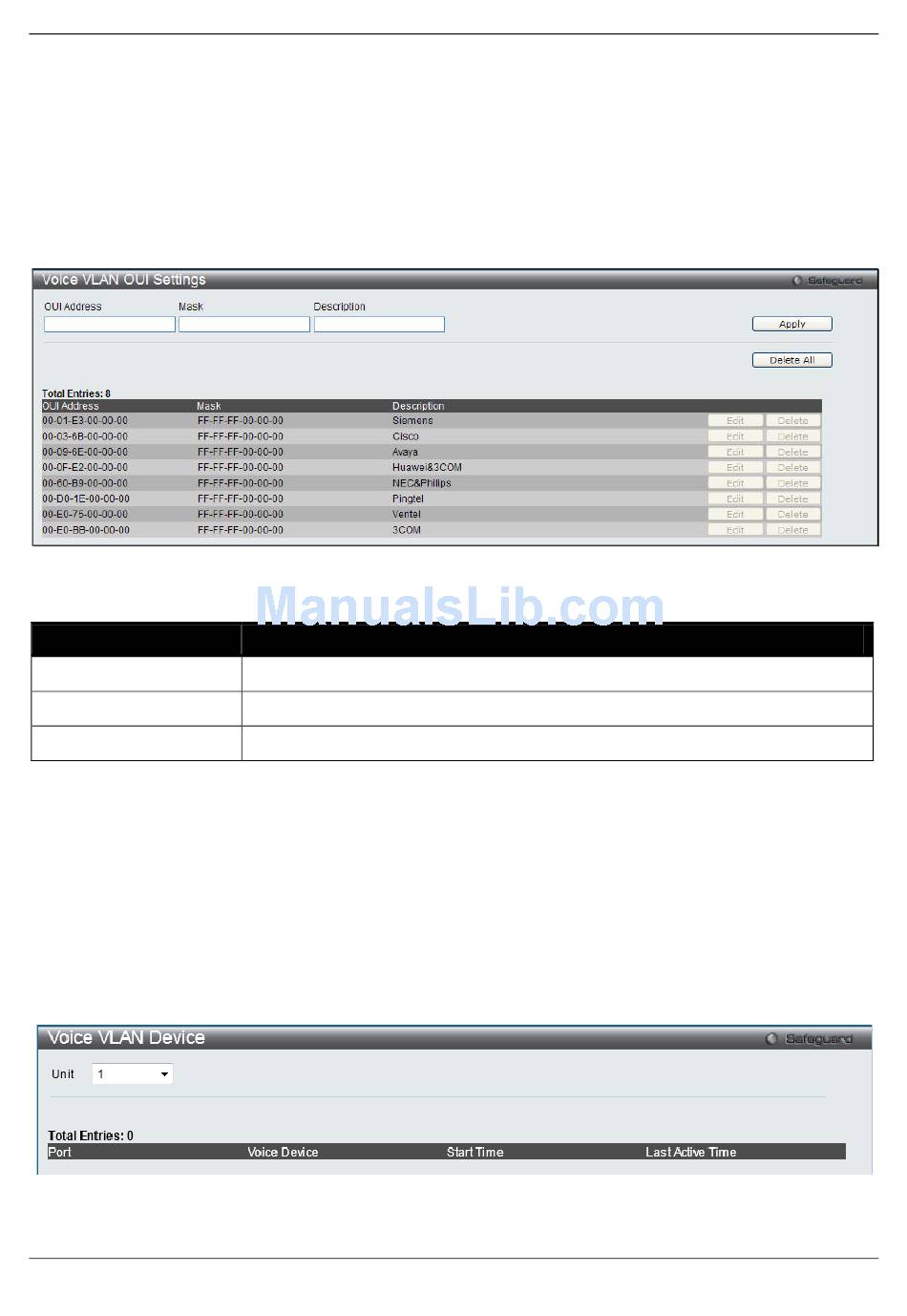

Figure 5-25 Voice VLAN OUI Settings window
Description
User defined OUI MAC address.
User defined OUI MAC address mask.
The description for the user defined OUI.
Figure 5-26 Voice VLAN Device window
