xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide
Collision
STPDrop
HOLDR
COS0DR~COS7DR
Show/Hide
Click the Apply button to accept the changes made for each individual section.
Click the Clear button to clear all statistics counters on this window.
Click the View Table link to display the information in a table rather than a line graph.
Click the View Graphic

Packet Size

Users can display packets received by the Switch, arranged in ten groups and classed by size, as either a line
graph or a table. Two windows are offered. To select a port to view these statistics for, select the port by using the
Port drop-down menu. The user may also use the real-time graphic of the Switch at the top of the web page by
simply clicking on a port.
To view this window, click Monitoring > Statistics > Packet Size as shown below:
Click the View Table link to display the information in a table rather than a line graph.
transmission is inhibited by more than one collision.
An estimate of the total number of collisions on this network segment.
STP Drop - Increment counter for packets dropped when the egress port is not in the
forwarding state.
HOL Drop - Incremented for each Packet drop due to Head Of Line blocking.
CoS Drop - Incremented for each packet drop due to Head of Line blocking per egress
port CoS
Check whether or not to display errors.
link to display the information in a line graph rather than a table.

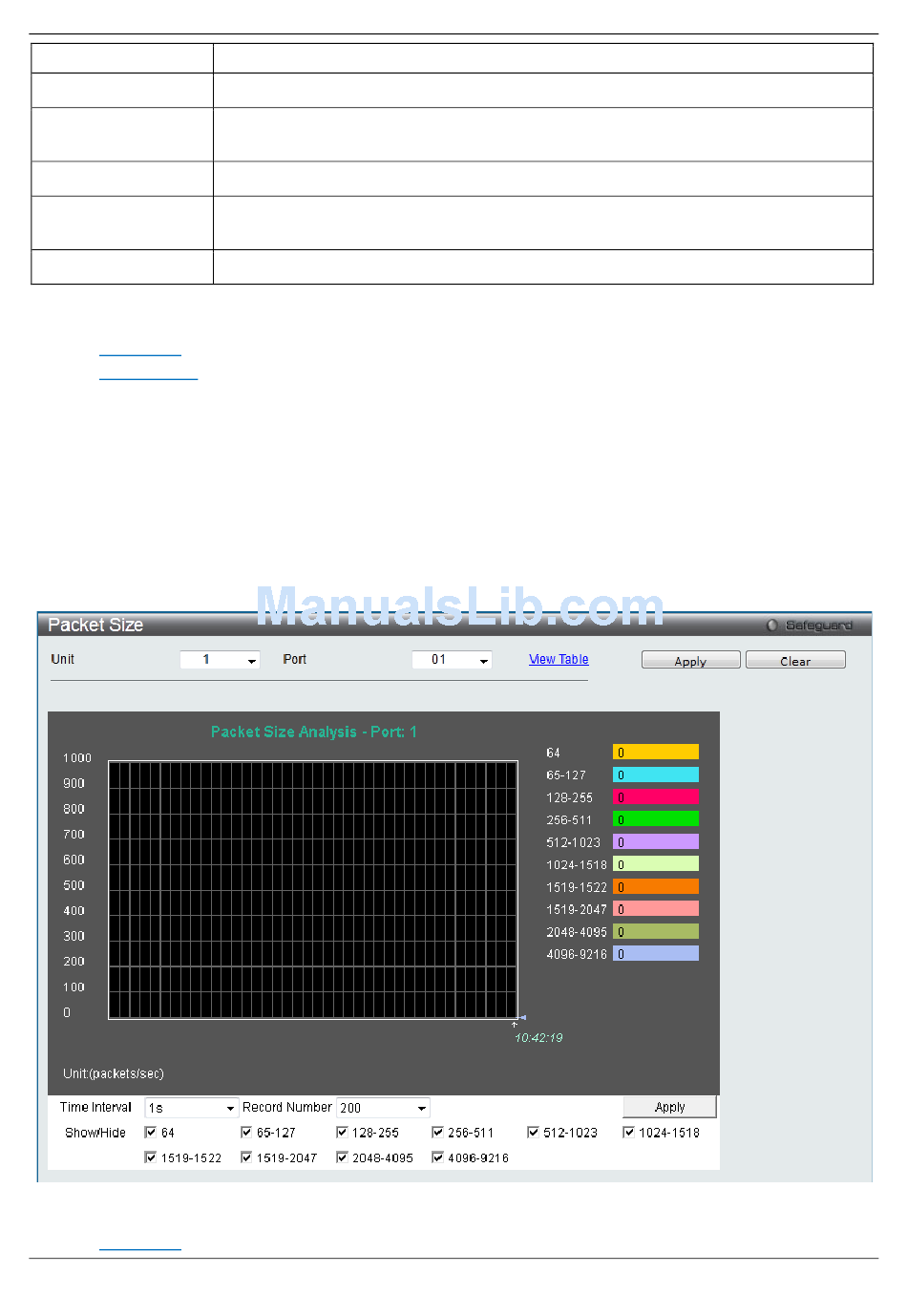

Figure 12-14 Packet Size window
533
