Click the Apply button to accept the changes made for each individual section.
Click the Clear button to clear the frame loss measurement information.
Click the <<Back button to discard the changes made and return to the previous page.
After click the Edit DM button, the following window will appear:
The fields that can be configured are described below:
Parameter
State
MAC Address
Percentile
Period: Interval

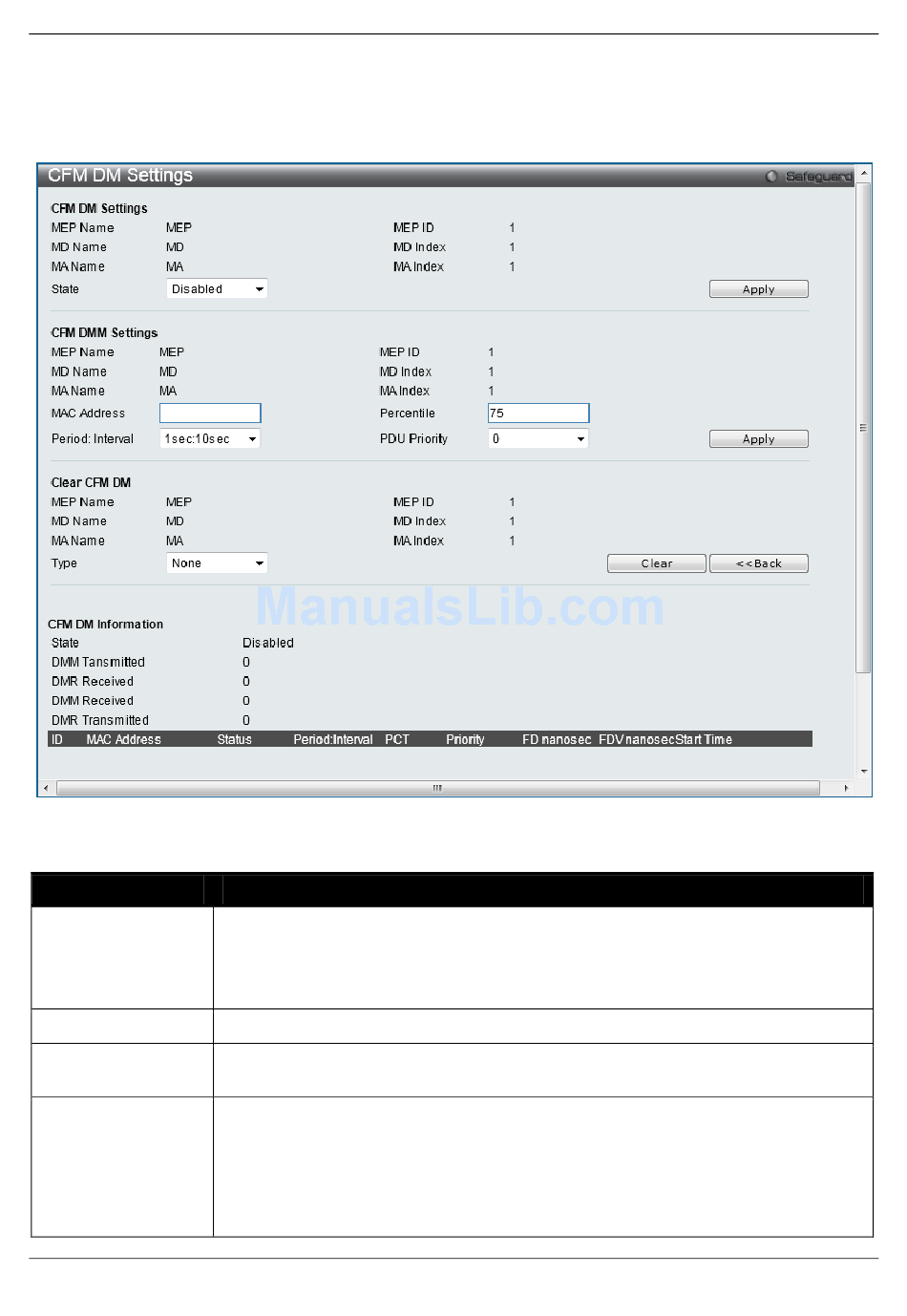

Figure 11-11 CFM MEP Information (Edit DM) window
Description
Select to enable or disable the CFM DM setting. This specifies the administrative state
of frame delay measurement function on the MEP.
Enabled - Specifies that the frame delay measurement function will be enabled.
Disabled - Specifies that the frame delay measurement function will be disabled.
Enter the MAC address.
Enter the percentile value. This specifies the percentile of frame delay and frame delay
variation measurement. This value must be between 1 and 100.
Select the period interval option. This specifies the transmission period of DMM
message and the diagnostic interval.
100ms:1sec - Specifies the transmission period of 100 milliseconds and the diagnostic
interval is one second.
1sec:10sec - Specifies the transmission period of one second and the diagnostic
interval is ten seconds. This is the default value.
