xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide
Parameter
MEP State
CCM State
PDU Priority
Fault Alarm
Alarm Time
Alarm Reset Time
Click the Apply button to accept the changes made.
Click the <<Back button to discard the changes made and return to the previous page.
Click the Edit AIS button to configure the AIS settings.
Click the Edit LCK button to configure the LCK settings.
After clicking the Edit AIS button, the following window will appear:
The fields that can be configured are described below:
Parameter
State
Period
Description
This is the MEP administrative state.
Enable - MEP is enabled.
Disable - MEP is disabled. This is the default value.
This is the CCM transmission state.
Enable - CCM transmission enabled.
Disable - CCM transmission disabled. This is the default value.
The 802.1p priority is set in the CCMs and the LTMs messages transmitted by the
MEP. The default value is 7.
This is the control types of the fault alarms sent by the MEP.
All - All types of fault alarms will be sent.
MAC Status - Only the fault alarms whose priority is equal to or higher than "Some
Remote MEP MAC Status Error" are sent.
Remote CCM - Only the fault alarms whose priority is equal to or higher than "Some
Remote MEP Down" are sent.
Errors CCM - Only the fault alarms whose priority is equal to or higher than "Error CCM
Received" are sent.
Xcon CCM - Only the fault alarms whose priority is equal to or higher than "Cross-
connect CCM Received" are sent.
None - No fault alarm is sent. This is the default value.
This is the time that a defect must exceed before the fault alarm can be sent. The unit
is in centiseconds, the range is 250-1000. The default value is 250.
This is the dormant duration time before a defect is triggered before the fault can be re-
alarmed. The unit is in centiseconds, the range is 250-1000. The default value is 1000.

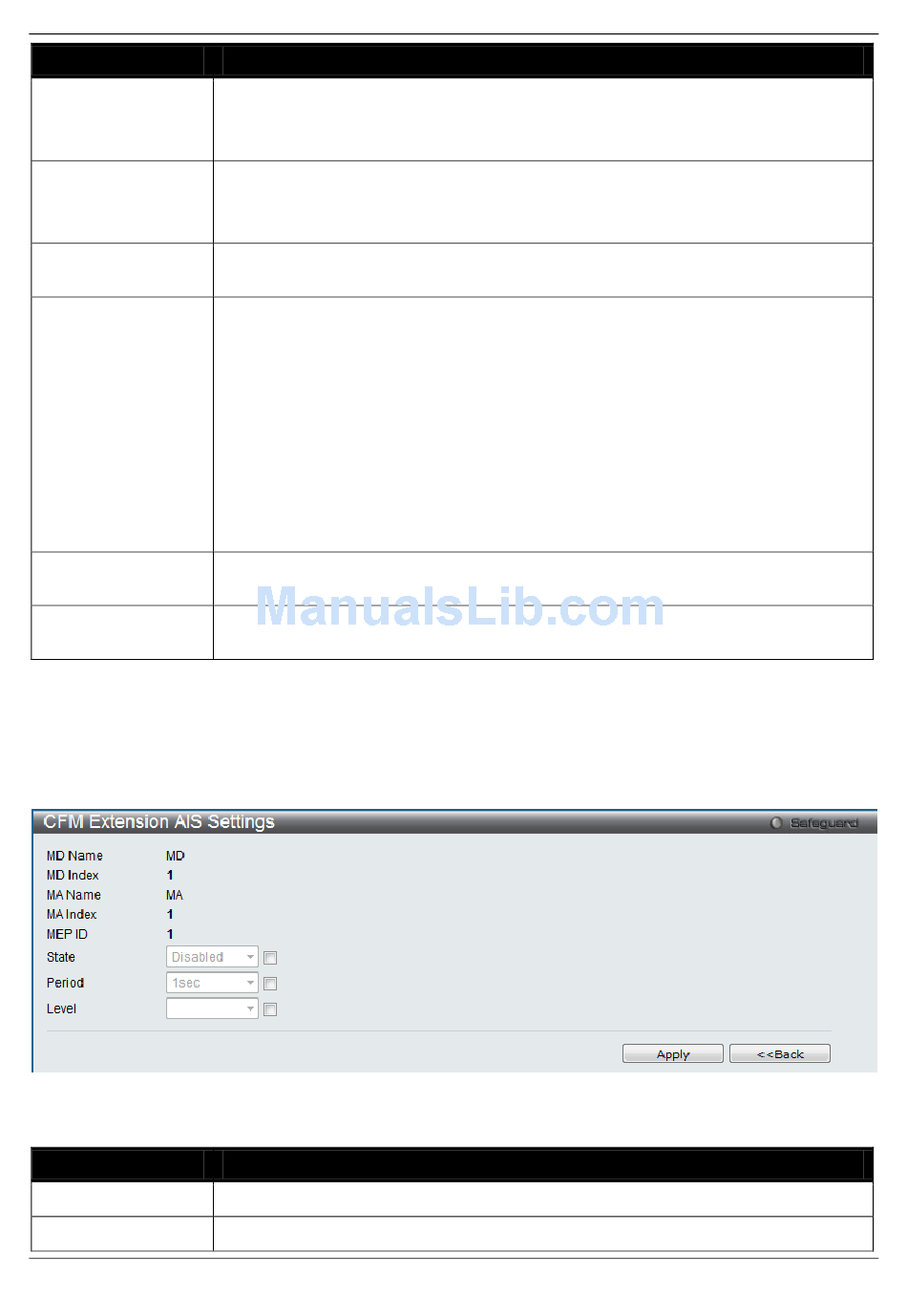

Figure 11-8 CFM Extension AIS (Edit) window
Description
Tick the check box and use the drop-down menu to enable or disable the AIS function.
Tick the check box and use the drop-down menu to select the transmitting interval of
